Last Rev Date: 17/05/2007 Page 9 of 10 Fitting instructions# 3783284
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

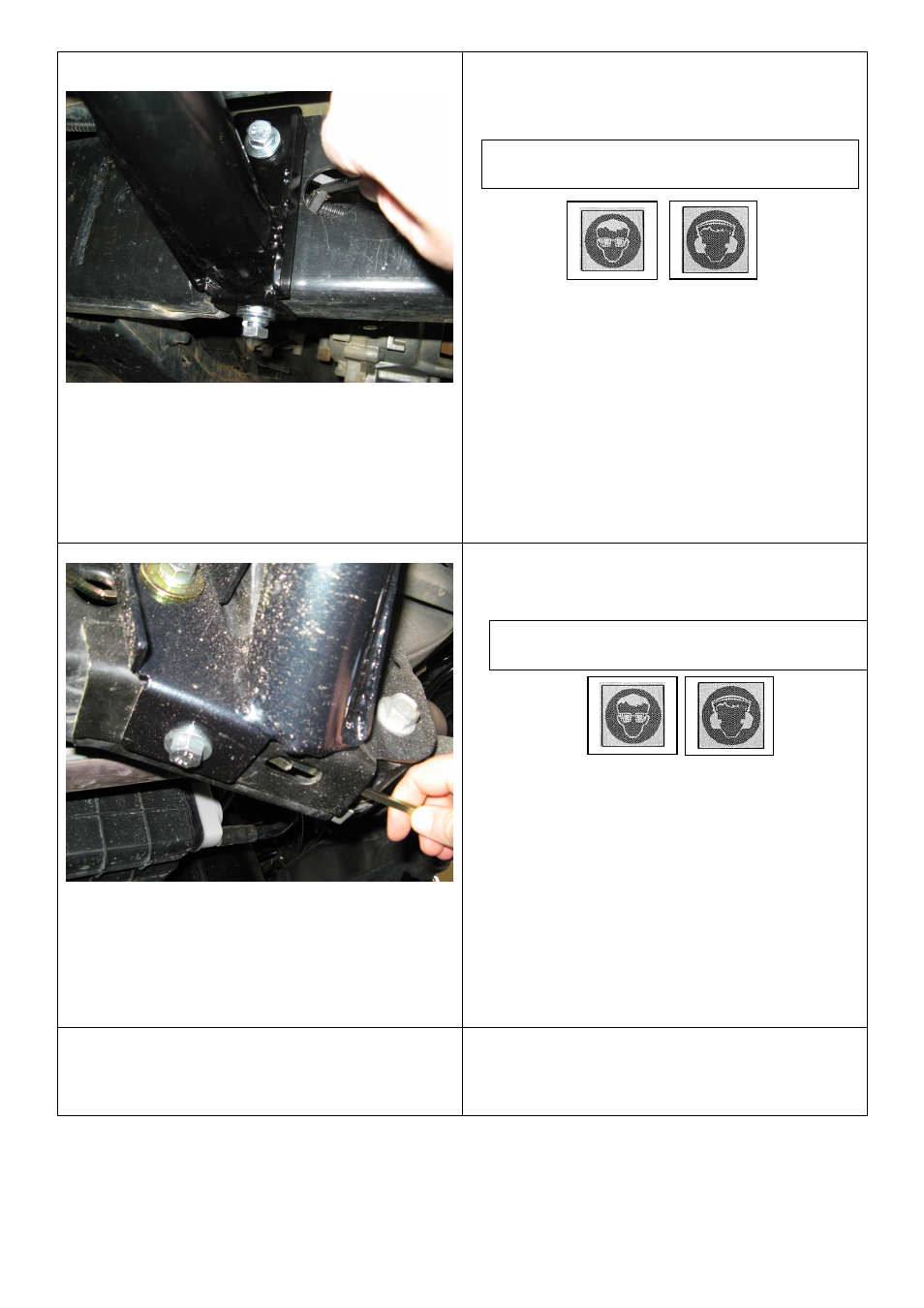

30. Using an 11mm drill bit, drill through the
bottom of the chassis, using the hole in the
bottom of the centre bracket as a guide.
31. Clean off any sharp burs, and treat the
bare metal surfaces with paint to prevent
corrosion.
32. Fit an M10 cage nut into M10 cage nut
plate and make appropriate bends in cage
nut plate to reach the hole in the bottom of
the chassis member.
33. Use an M10 x 35mmbolt, flat and spring
washer to fasten the bottom of the centre
bracket to the chassis.
34. Using an 11mm drill bit, drill through the
bottom of the chassis, using the hole in the
bottom of the rear bracket as a guide.
35. Clean off any sharp burs, and treat the
bare metal surfaces with paint to prevent
corrosion.
36. Fit an M10 cage nut into M10 cage nut
plate and make appropriate bends in cage
nut plate to reach the hole in the bottom of
the chassis member.
37. Use an M10 x 30mm bolt, flat and spring
washer to fasten the bottom of the rear
bracket to the chassis.
38. Finally, refit the sill cover, using the black
M6 dome headed bolts, flat washers and
flange nuts as required.
Warning: Drilling operations can result in
flying metal debris, safety glasses should be
worn.
Warning: Drilling operations can result in
flying metal debris, safety glasses should be
worn.
