Last Rev Date: 17/05/2007 Page 6 of 10 Fitting instructions# 3783284
Copyright © 2005 by ARB Corporation Limited. All rights reserved, this document must not be reproduced without the express authority of ARB Corporation Ltd

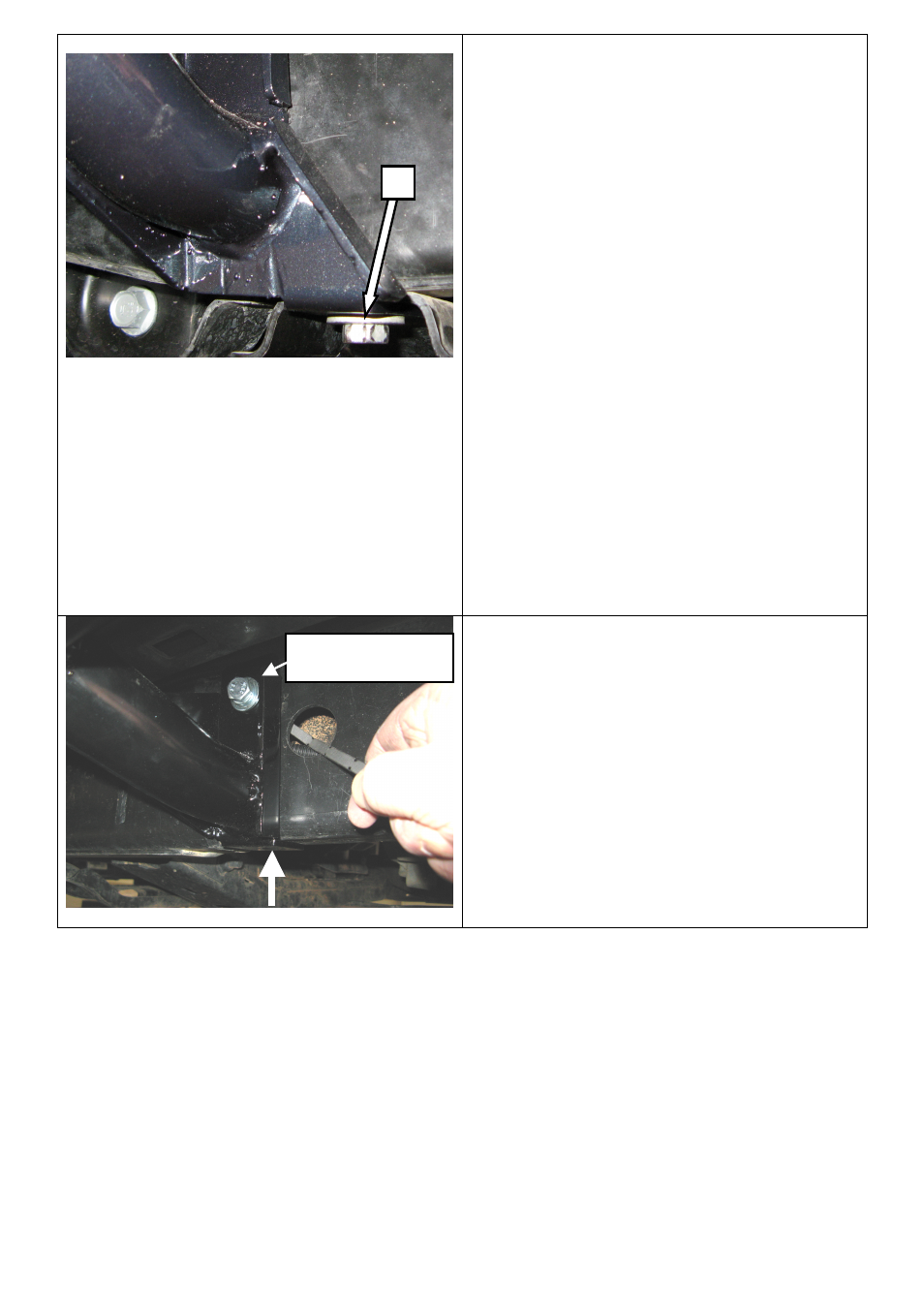

13. Fasten Front Bracket to vehicle as shown.
(For Auto vehicles, use the bolt removed in
step 8)
Note: For manual vehicles use Bolt M12 X 1.5 X
40 (fine pitch) , M12 Gold washer and M12 spring
washer which are supplied in fitting kit. Use extra
M12 Gold washer as packer between chassis
and Front Bracket. (Some manual vehicles are
fitted with a steel fuel pump cover which secures
to the chassis with this bolt. If this is the case, do
not use the extra M12 gold washer as a packer
between the chassis and the rail bracket.)
14. While pushing the side rail to get the
vertical face of the front mounting bracket
as close to the side of the chassis as
possible, tighten up the bolt “A”.
15. Using a marker, mark the position of the
hole in the vertical side of the chassis for
the front bracket.
16. While using a jack or a leaver, push the centre
mounting bracket up against the bottom of the
chassis. (In the direction of the arrow)
17. Using a marker, mark the position of the hole
in the side of the chassis rail for the centre
bracket. (Do not mark or drill the hole in the
bottom of the chassis rail at this stage.)
A
B
A
Mark and drill this
hole only
