24. For the centre bracket, fit M10 cage nut
into M10 cage nut plate and make
appropriate bends in cage nut plate to reach
the hole.

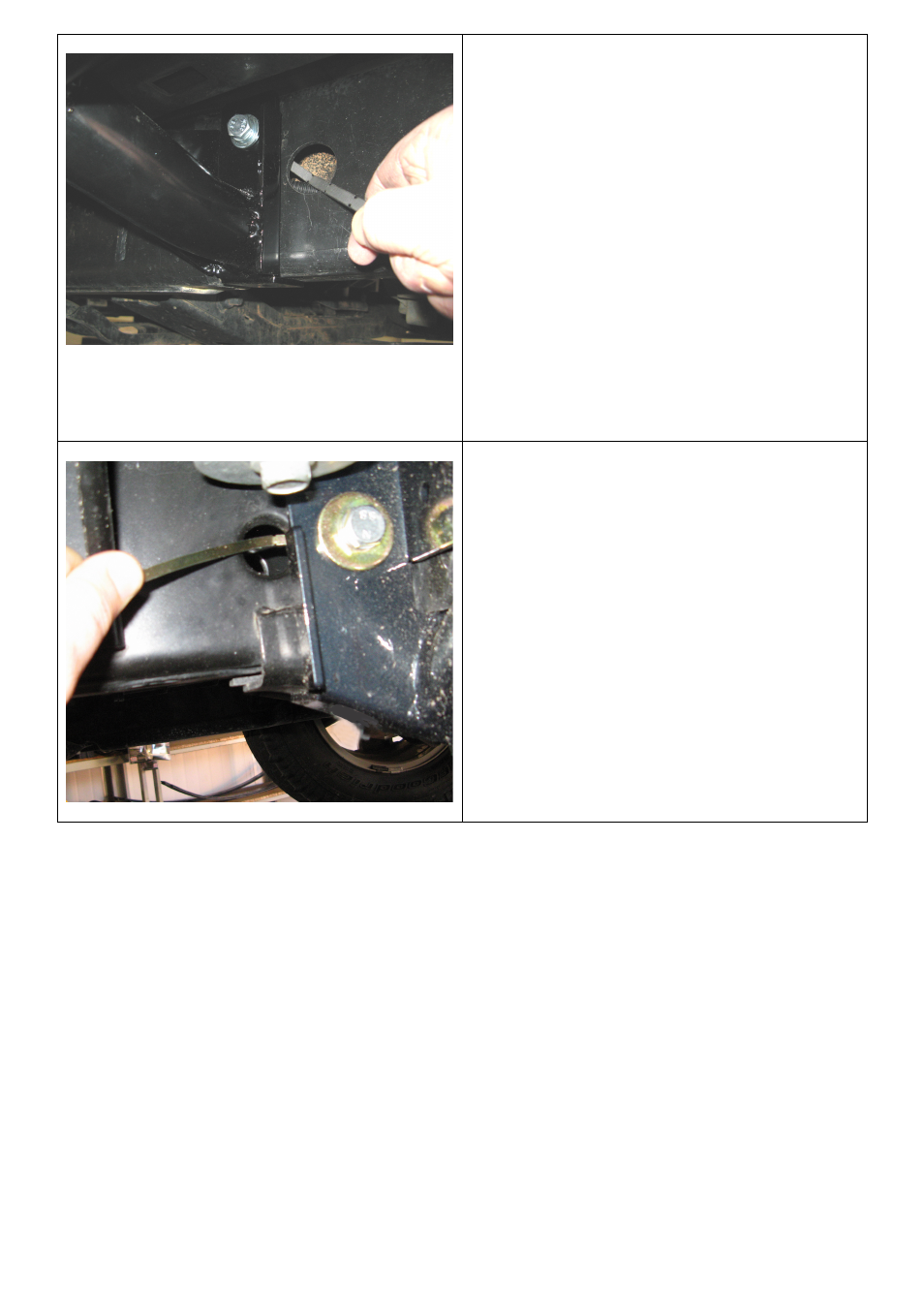

25. Insert cage plate through the hole in the
chassis as shown and line up cage nut with
hole and bracket.
26. Using a M10 x 35 bolt, M10 spring washer
and M10 x 25 flat steel washer loosely
fasten into place.
27. While pushing up on the centre bracket to
make sure that it is up against the bottom of
the chassis rail, tighten the bolt shown.
28. For the rear bracket, fit an M12 cage nut into
one of the M12 cage nut plates and make
appropriate bends in the cage nut plate to
reach through the hole shown and position the
cage nut behind the hole the M12 bolt will
pass through. As shown in photo on left.
29. Using a M12 x 40 bolt, M12 spring washer and
M12 Gold washer loosely fasten into place.
