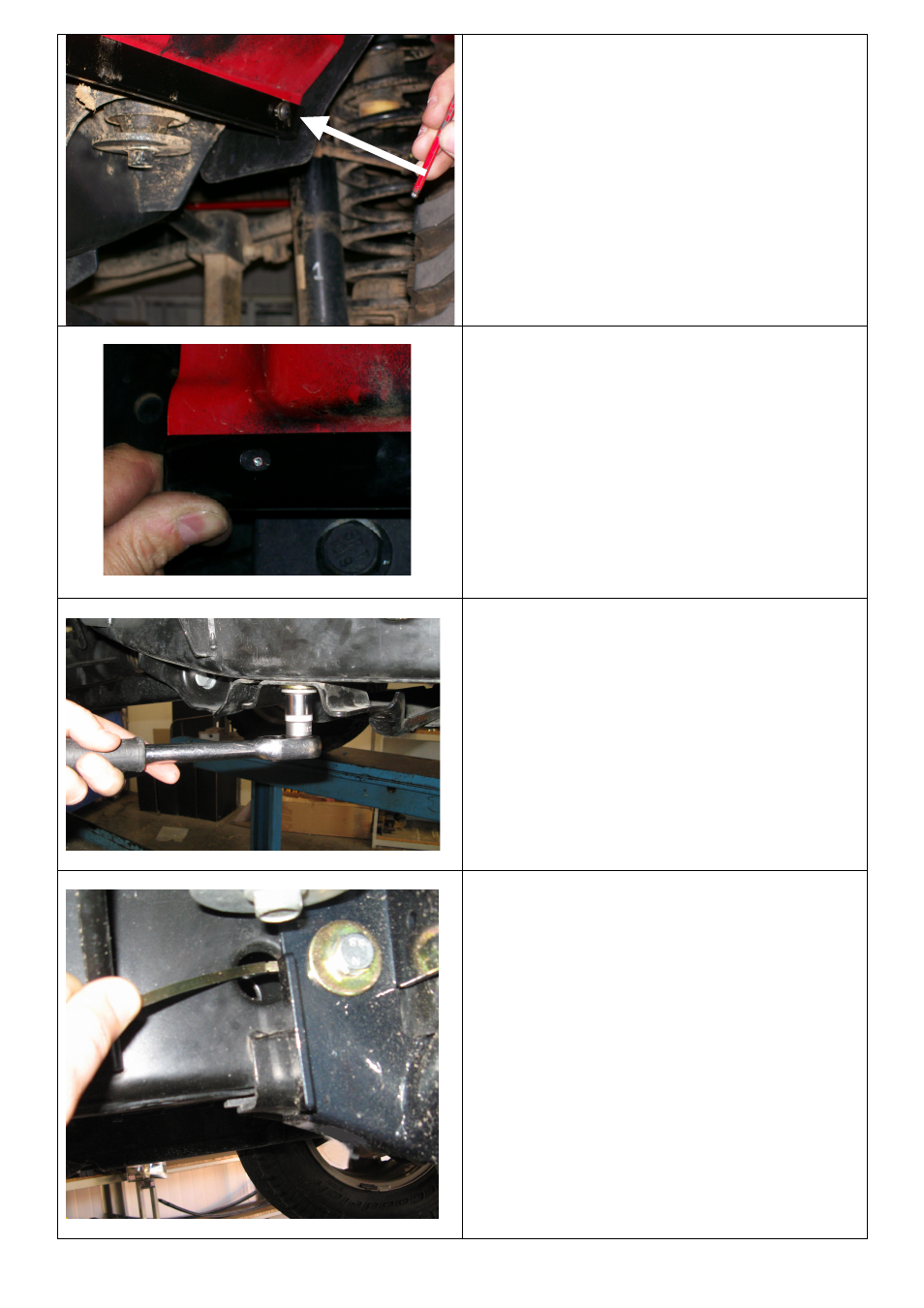

5. Using the black M6 dome head bolts plus
M6 black flat washer, loosely fit the sill
cover. Some of the holes pick up on
existing holes with weld nuts behind them,
some pass through existing holes but
require a flange nut to be fitted on the inside
of the sill, and some holes will have to be
drilled.
6. For the holes which have to be drilled, use
a centre punch to mark the position of the
hole in the centre of the slot in the sill cover.
7. Remove the sill cover and drill through the
sill using a 6.5mm drill. Tough up the bare
metal in the hole with black paint.
8. Remove the sill cover to prevent damage to
it during drilling operations later.
NOTE: The sill covers get refitted at the end
of the installation process.
9. For automatic vehicles, support the weight of
the gearbox cross member with stand or
similar. Remove and retain existing bolt for
front bracket.
10. For the rear mounting bracket, fit a M12 cage
nut into one of the M12 cage nut plates and
make appropriate bend in cage plate to reach
through the hole shown and position the cage
nut behind the hole the M12 bolt will pass
through. As shown in photo on left.
11. With the assistance of another person, hold
side rail against chassis.
12. Using a M12 x 1.75 x 40 bolt(course thread),
M12 spring washer and M12 Gold washer
loosely fasten into place.
NOTE: Leave this bolts finger tight at this
stage.
