ARB 3934020 User Manual
Page 5
13/06/06
Page 5 of 13
3782863
6.

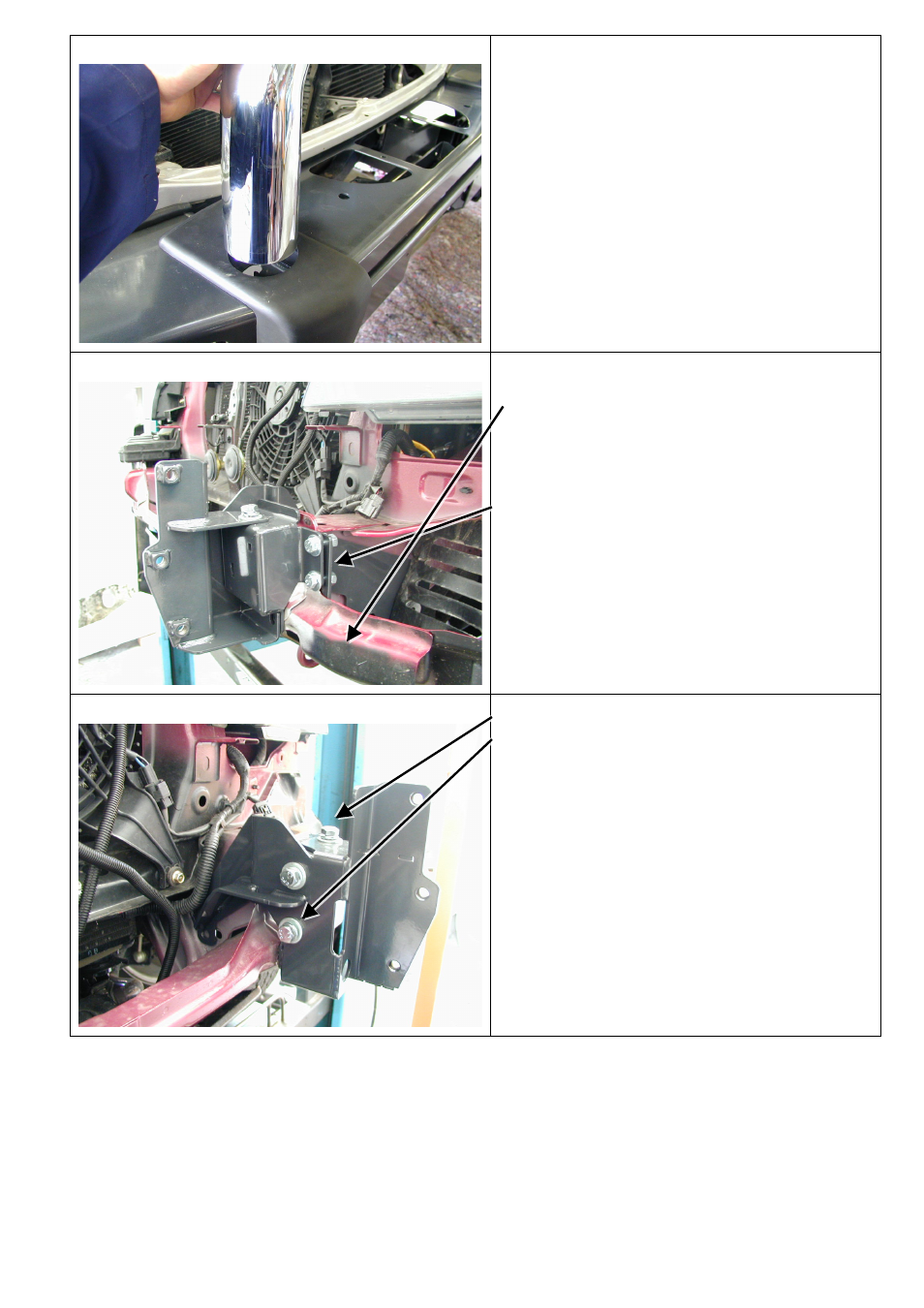

1. Push the top chrome tube through the hole in
the buffer and fasten using the M12 x 40mm
bolts, washers and spring washers.
NOTE
This step for Sahara bar only
7.
1. Remove the bumper bar and grill.
2. Spray paint the vehicles cross member with
matt black spray paint on both sides.
3. Assemble the mounts to the vehicle as
shown in the pictures 7 & 8. Fasten bolts
finger tight only.
M10 x 35mm bolts, flat washers, spring washers
and nuts.
8.
M12 x 25mm bolts, flat washers and spring
washers.
