ARB 3934020 User Manual
Page 11

13/06/06
Page 11 of 13
3782863

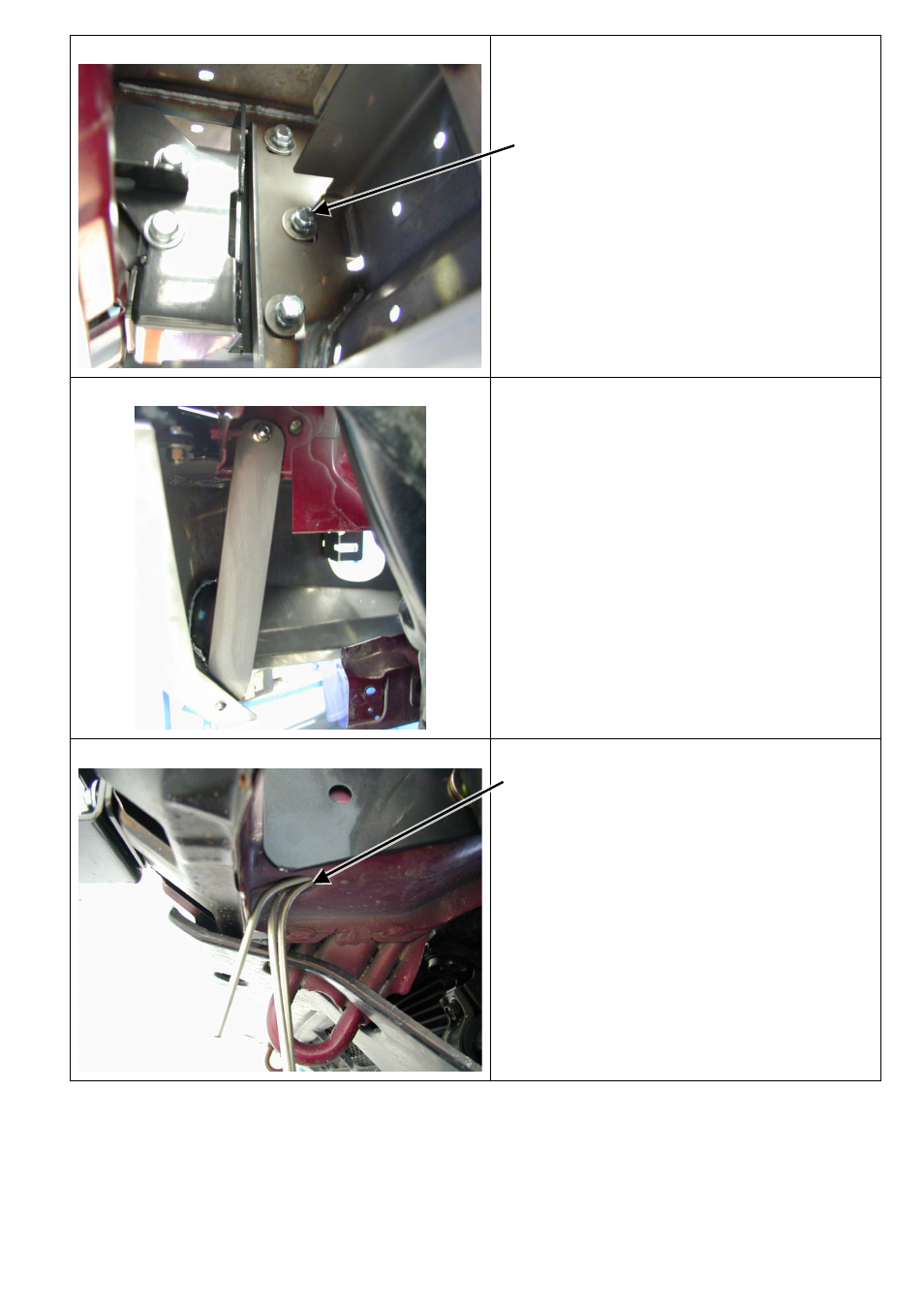

24.
1. With the aid of another person place the bar
on the mounts. Line the bar to the vehicle
and fasten using six M12 x 40mm bolts six
large washers and six spring washers.
Tighten all bolts so the large washer deforms
inside the rectangular cutout. Note: when
aligning the bar to the vehicle the plastic wing
trims can be adjusted along the side of the
wheel arches by undoing the two bolts and
repositioning. Note: if car is fitted with
headlight covers, remove them before fitting
the bar. Leave approximately a 2-3mm gap
between the plastic trim and headlight when
tightening the bolts. Fit the headlight covers
after bar is fitted.
25.
1. Bolt the wing brace to the back of the wing
using the button head M6 bolt and flange nut.
Note: The brace has adjustment so the wing can
be pushed up to the vehicle then tightened.
26.
1. Cut the excess wires from under the vehicle
so they don’t protrude past the chassis rail.
