ASSEMBLY SEQUENCE FOR WINCH BUMPER.

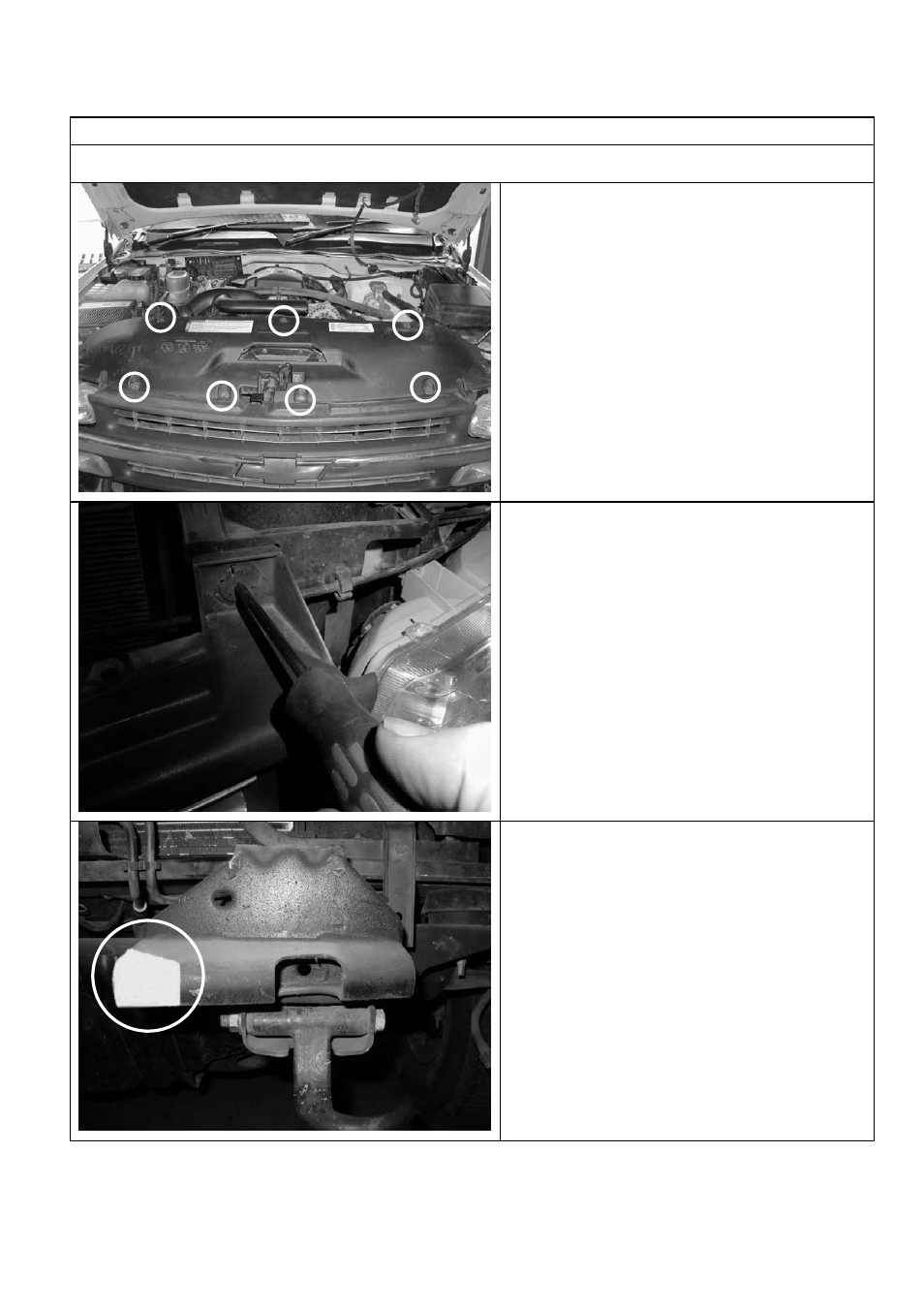

1. FITTING MOUNTING BRACKETS
1.1 Remove the plastic shroud above the
radiator as shown, by releasing plastic
clips
1.2 To remove the grille, undo four fasteners a
¼ turn, then release top headlights so you
can prize the outer strips free from the
retainer clips in the guard area.
1.3 If winch is to be fitted, trim section, as
shown by white area, off LH chassis
end area, this is necessary to clear
terminal on winch motor.
