ASSEMBLY SEQUENCE FOR WINCH BUMPER.

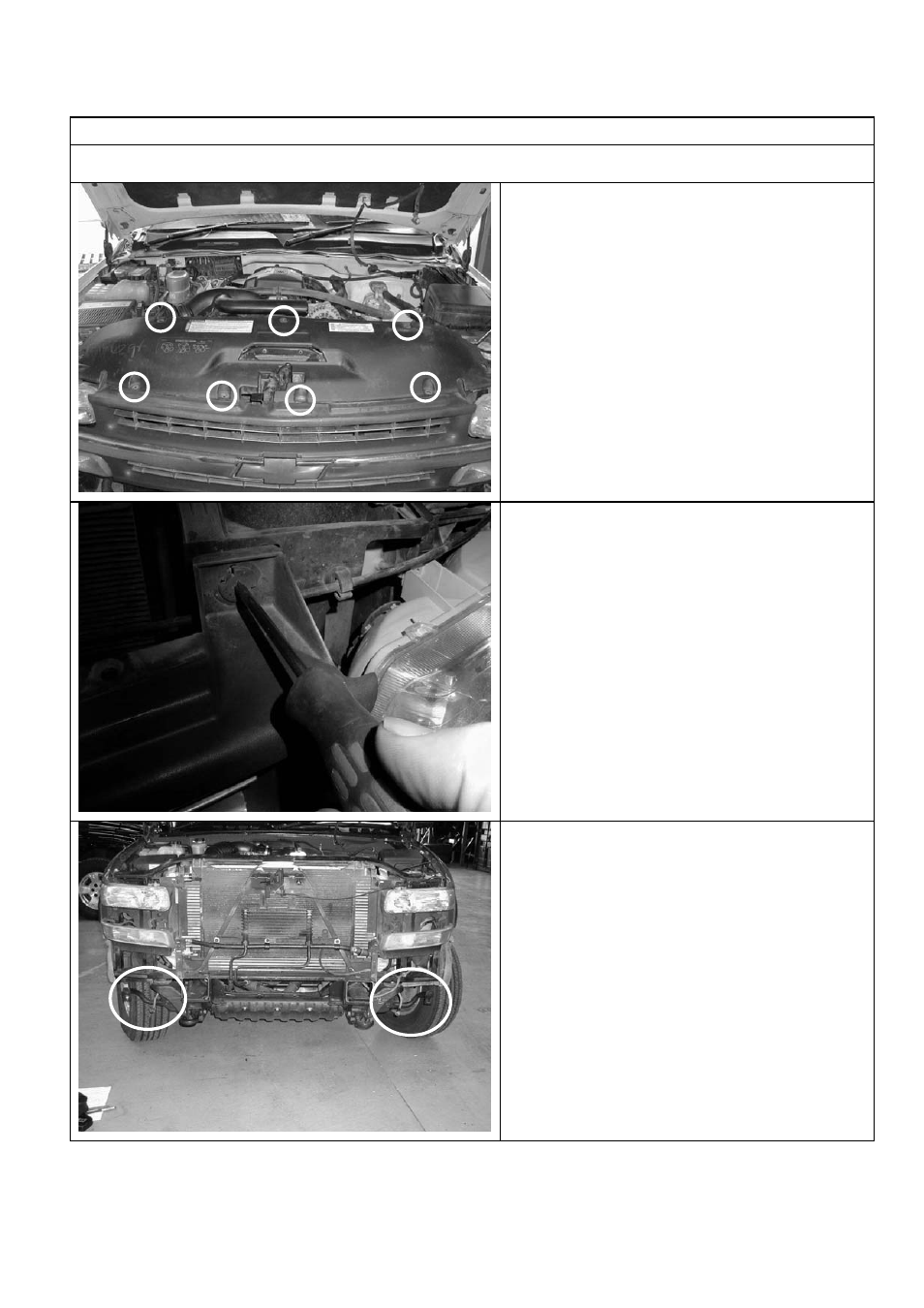

1. FITTING MOUNTING BRACKETS
1.1 Remove plastic shroud above radiator as
shown, by releasing plastic clips
1.2 Remove the grille, undo ¼ turn fasteners x
4 off, then release top headlights so you
can prize outer strips free from retainer
clips into guard area.
1.3 Remove bumper by undoing 2 x bolts on
outer rear stabilizer arms, unclip any
lights, then undo 4 x bolts from top.
Remove stabilizer arms
