5 Mounting & Connecting the Electrical System
35
5.2.2.2 Dual Air Locker System
F
If two Air Lockers are to be installed in the system, ARB
recommends that the switches and solenoids be wired according to
figure 22. For safety reasons, this configuration allows SOLENOID
2 to be actuated only if SOLENOID 1 is already on.
F AttacKWKH³5($5$,5/2&.(5´VZLWFKFRYHUWR6:,7&+DQG
WKH³)5217$,5/2&.(5´VZLWFKFRYHUWR6:,7&+
NOTE : Refer to Figure 20. for the correct switch terminal
identification and switch orientation.
F Configure SOLENOID 1 as the air line leading to the rear axle Air
Locker, and SOLENOID 2 as the air line leading to the front axle Air
Locker.

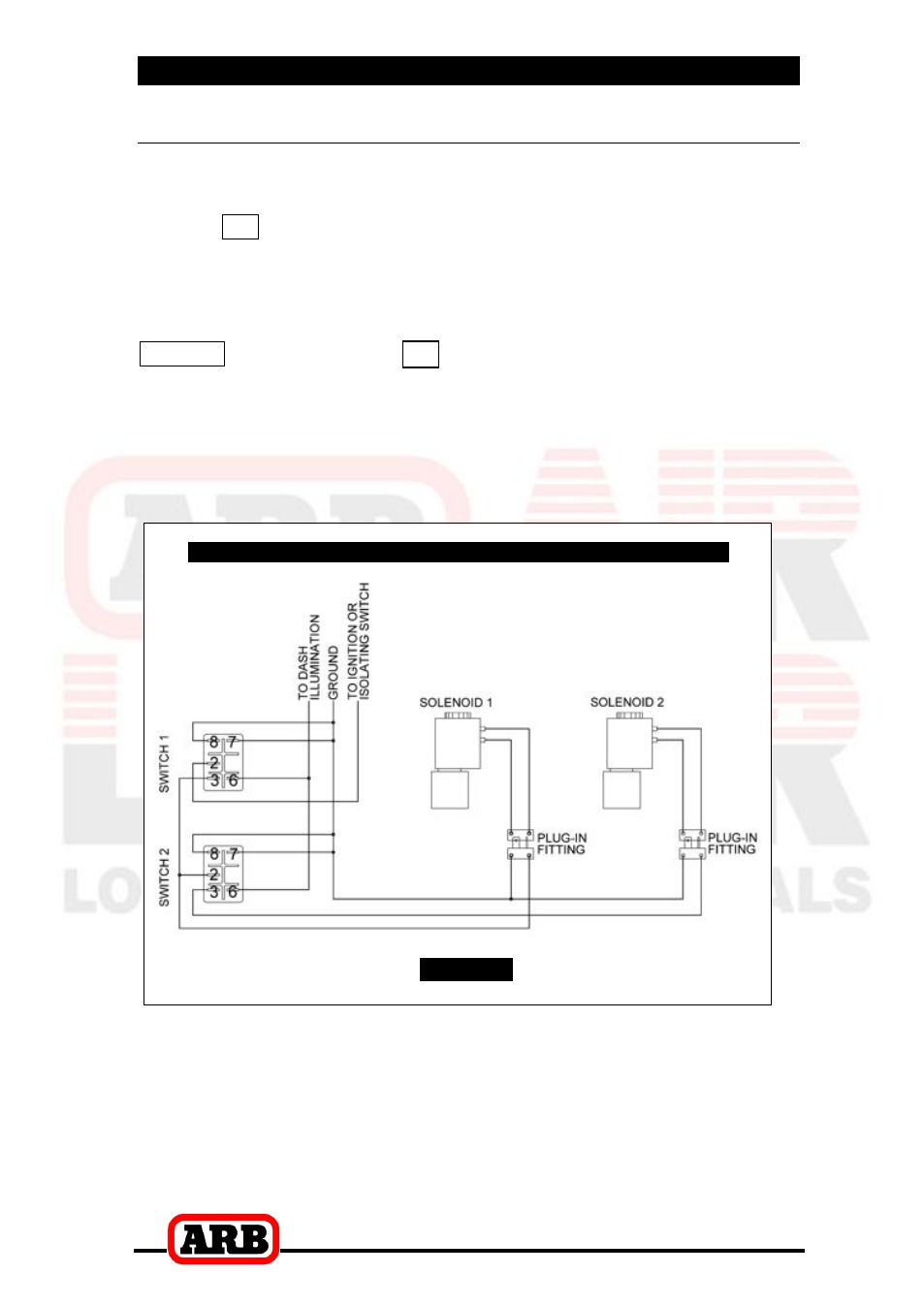

Figure 22.
DUAL Air Locker SYSTEM
