T his television is equipped with External
Speaker Jacks. External Speakers can be
used for rear speakers or to widen the stereo
coming from the television.
For this connection a set of right and left
external speakers (not supplied with the tele-
vision) along with two lengths of twin lead
speaker wire will be needed.
1 Connect one end of both twin lead
speaker wires to each of the external
speakers (right and left) being used.
2 Connect the other ends of the twin
lead speaker wire to the External
Speaker, right and left, 8
Ω
speaker
connectors. (Be sure that the connec-
tion is properly connected + to + and –
to – from the speakers to the television
jacks.)
At this point, the televisions sound should be
able to be heard through the external speak-
ers. If no sound is being heard through these
speakers, please check the connection or
repeat the connection sequence.
C
ONNECTING
E
XTERNAL
S
PEAKERS TO THE
T
ELEVISION
+ - + -
2
1

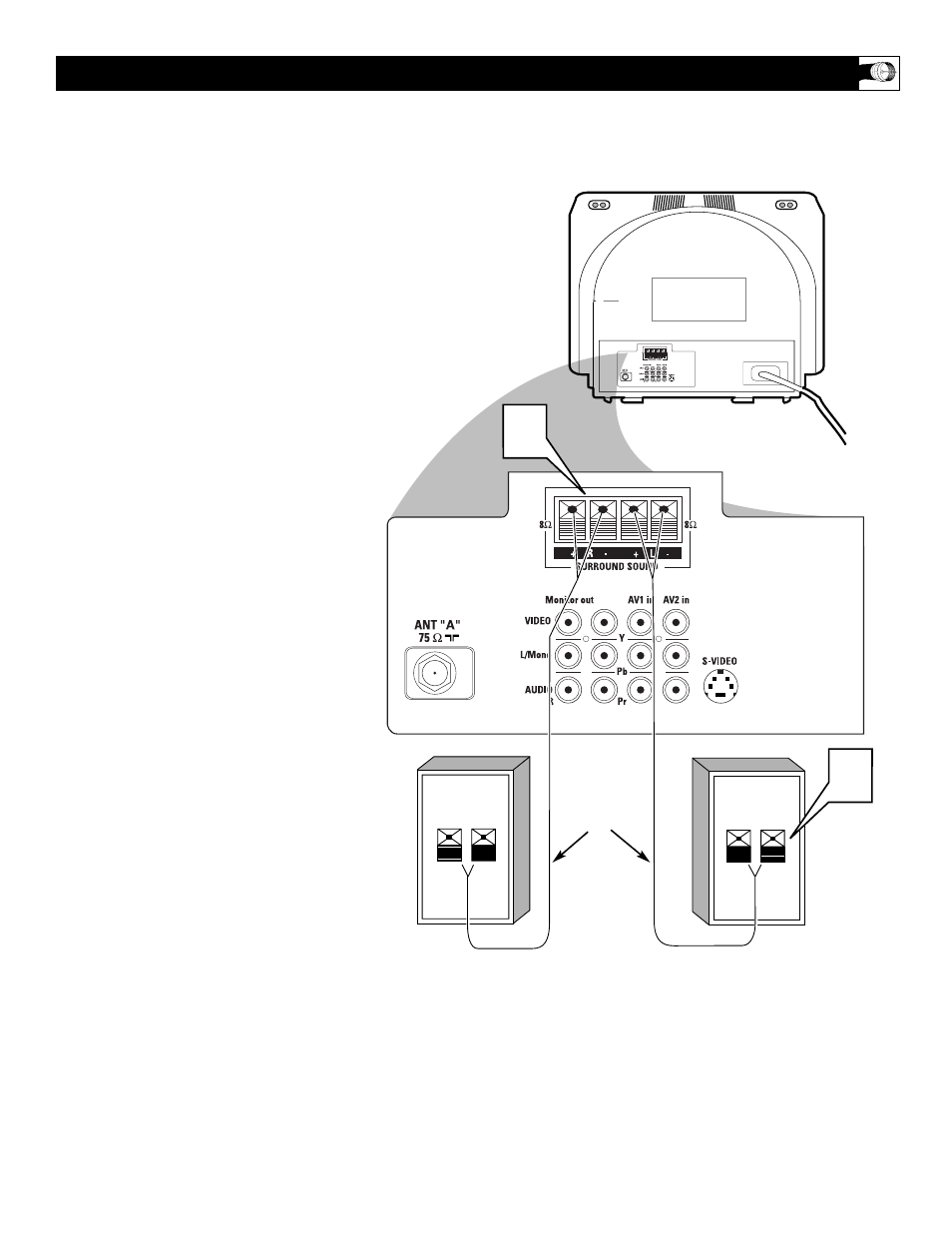

JACK PANEL
Located on the
back of the TV
External 8
Ω
(ohm) Speakers
Twin Lead
Speaker Wire
