10

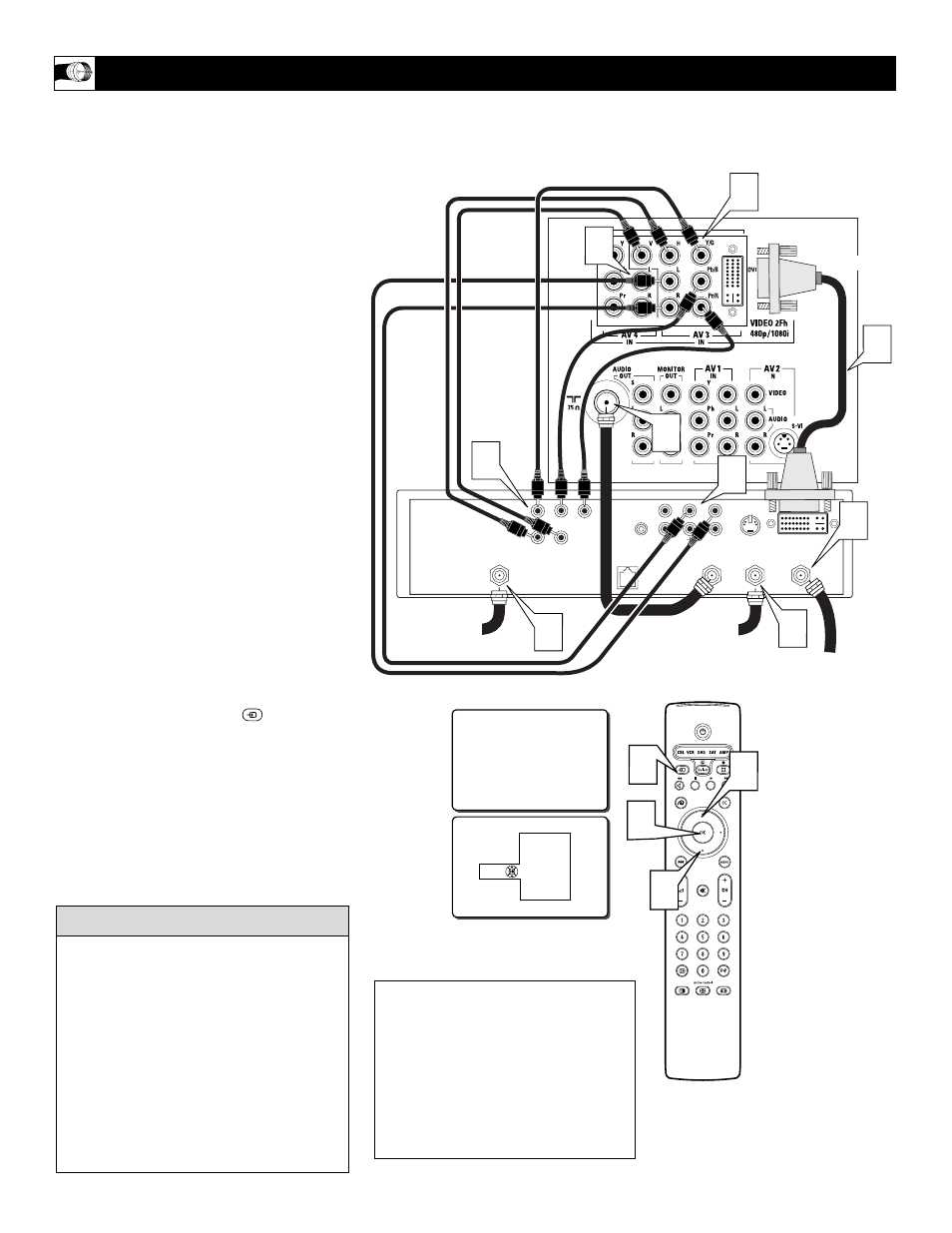

T he AV3 Input Jacks provide Both Component
and Digital Video Inputs at 1080i, for acces-
sories like a HD Receiver and Digital DVD
Players. There is also a DVI jack supplied
allowing encrypted transmission of uncom-
pressed HD content. .
1 Connect the Component (Y, Pb, Pr)
Video OUT jacks from the HD accessory
device to the (Y, Pb, Pr) AV3 IN(put)
jacks on the TV. If the device your using
is equipped with seperate Horizontal and
Vertical sync, connect the H and V
Outputs on the accessory device to the H
and V Inputs of AV3 IN.
2 Connect the red and white AUDIO
CABLES to the Audio (left and right)
output jacks on the rear of the HD acces-
sory device to the Audio (L and R) AV3
IN(put) jacks on the TV.
3 Connect a DVI cable from the DVI
OUT on the HD accessory device to the
AV3 DVI jack on the back of the TV.
4 Connect a 75 Ω round cable from the
OUT TO TV jack on the HD accessory
device to the 75
Ω IN on the back of the
TV.
5 If using a Satellite Dish, Cable signal or
Antenna signal, connect the 75
Ω round
cable from a Satellite Dish to the SATEL-
LITE IN and/or the Cable and Antenna
signals to the ANTENNA “A” or “B” IN
on the back of the HD accessory device.
6 Press the SOURCE button on
the remote control to display the
SOURCE menu.
7 Press the CURSOR UP or DOWN
button to select the AV3 option.
8 Press the OK button to confirm your
selection. The TV will change to the
AV3 channel.
U
SING THE
AV 3 I
NPUT
J
ACKS
Coaxial Cable
Lead-in from Cable Outlet,
Converter Box,
or VHF/UHF Antenna
OUT TO TV SATELLITE
IN
DIGITAL AUDIO
OUTPUT
VCR
CONTROL
S-VIDEO
PHONE JACK
VIDEO AUDIO
L
L
R
R
ANTENNA B
IN
ANTENNA A
IN
Coaxial Cable
Lead-in from
Satellite Dish
Coaxial Cable Lead-in
from Alternate RF
Signal Source
5
5
5
COMPONENT VIDEO
Y Pb Pr
AV3
Source
TV
AV1: VCR
AV2: Recorder
AV3: DVD
AV4: HD
SIDE: Camera
1
2
3
4
6
7
7
8
H V
SYNC OUT
1
2
JACK PANEL
ON BACK OF TV
BACK of
ACCESSORY
DEVICE
Note: If the AV3 channel is tuned and no signal
connection present, the screen could jump or flash.
AUDIO IN
(RED/WHITE)
COMPONENT
VIDEO
CABLES
DVI CABLE
COAXIAL CABLE
LEAD-IN FROM
SATELLITE DISH
COAXIAL CABLE
LEAD-IN FROM
ALTERNATE RF
SIGNAL SOURCE COAXIAL CABLE
LEAD-IN FROM CABLE
OUTLET, CONVERTER BOX,
OR VHF/UHF ANTENNA
DVI - DVI is a specific digital input allow-
ing encrypted transmission of uncom-
pressed HD content. DVI includes HDCP
(high-bandwidth digital content protection),
which is supported by Hollywood, satellite
providers, and most of the consumer elec-
tronics industry. DVI is gaining momentum
and quickly becoming an industry standard
for the consumer to view high-definition
material while keeping content protected.
NOTE: The Picture-in-Picture (PIP) feature
is not available for use with AV3.
c c C
HECK
I
T
O
UT
NOTE: This television is designed to
accept high definition signals 1080i
and 480p as specified by the Electronic
Industries Association standard
EIA770.3. Digital devices from differ-
ent manufacturers have the possibility
of differing output standards which my
cause difficulties for the television to
properly display.
HORIZONTAL
AND VERTICAL
SYNC CABLES
