KNOWING YOUR WIRELESS ACCESS POINT

5

The WAP has been designed to be placed on a desktop vertically or
horizontally, or it may be mounted to a wall. The slim design minimizes the
desktop space required when placed vertically. All of the cables exit from the
rear of the WAP for better organization and utility. The LED indicators are
easily visible on the front of the WAP to provide you with information about
network activity and status.

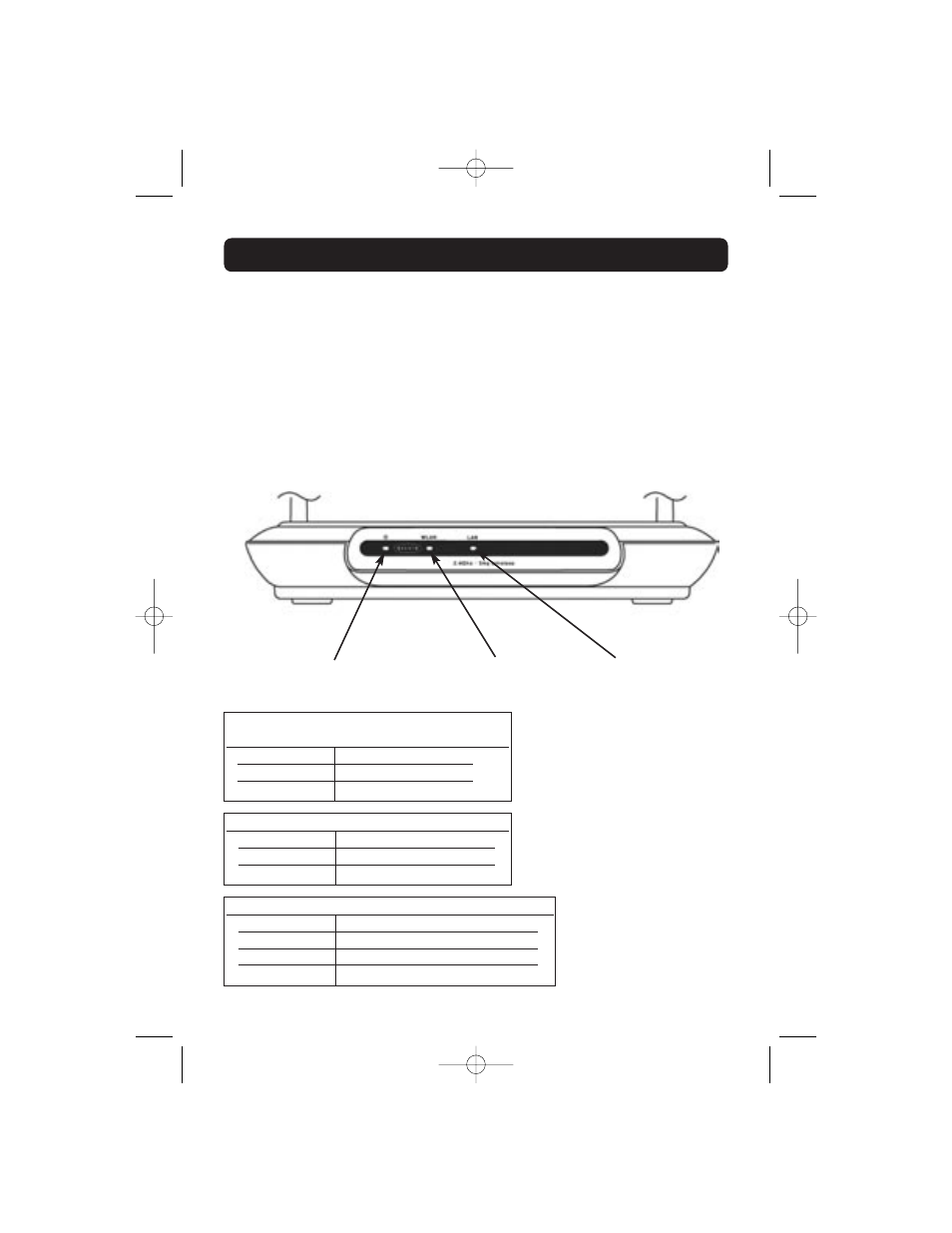

Front Panel

Power/Ready LED

Wireless LAN LED

LAN (Network) LED

Power/Ready LED
Indicates that the WAP is receiving power

OFF

WAP is OFF

Blinking Green

WAP is Booting Up

Solid Green

WAP is Ready

Wireless LAN LED

OFF

Wireless Network is OFF

Green

Wireless Network is Ready

Blinking Green

Indicates Wireless Activity

LAN (Network) LED

OFF

No Network is Linked to the Port

Green

10Base-T Connected

Orange

100Base-Tx Connected

Blinking

(Orange or Green) Port Activity
