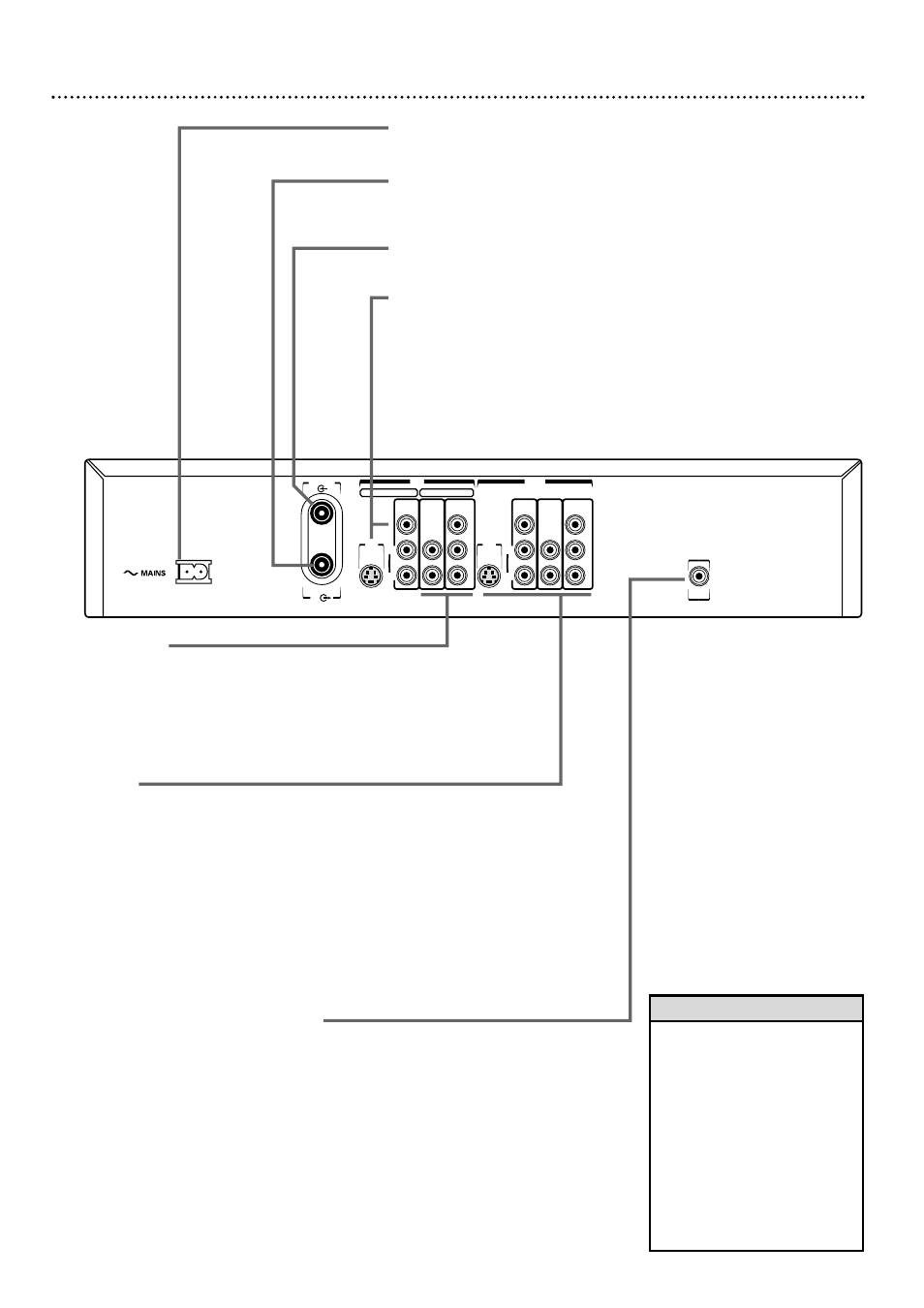

Rear Panel 25
DIGITAL
AUDIO OUT
AUDIO
COMPONENT
VIDEO
AUDIO VIDEO
(CVBS)
OUT
S-VIDEO
(Y/C)
L
R P R
P B
Y
AUDIO
COMPONENT
VIDEO
AUDIO
EXT 2 EXT 1
VIDEO
(CVBS)
IN
S-VIDEO
(Y/C)
L
R P R
P B
Y
ANTENNA
TV
MAINS jack
Connect the supplied AC power cord here. See pages 10-16.
TV jack
Connect the supplied RF coaxial cable to the Recorder’s TV jack and to
the RF IN or ANTENNA IN jack (75 ohm) on your television.
ANTENNA jack
Connect your antenna or Cable TV signal here. See pages 10-16.
IN EXT 2 jacks
Use these jacks to receive picture and sound from other equipment.
• VIDEO (CVBS): Use a video cable to connect this jack to the Video
Out jack of other equipment. See page 17.
• AUDIO L/R (left/right): Connect audio cables here and to the AUDIO
OUT jacks of other equipment. See page 17.
• S-VIDEO (Y-C): Use an S-video cable to connect this jack to the S-
Video Out jack of optional additional equipment. See page 17.
• Use the same EXT (external)
number for each pair of audio
and video connections. For
example, if you use IN EXT 2
S-VIDEO (Y/C), use the IN EXT
2 AUDIO L/R jacks.
• Do not touch the inner pins of
the jacks. Electrostatic dis-
charge may damage the unit
permanently.
• You only need one audio and
one video connection to a TV.
You might not use all the jacks.
Helpful Hints
IN EXT 1 jacks
Use these jacks to receive picture and sound from other equipment.
• AUDIO L/R (left/right): Connect audio cables here and to the
AUDIO OUT jacks of other equipment. See page 17.
• COMPONENT VIDEO (Y P B P R ): Connect these jacks to the
Component Video Out jacks of optional video equipment (for exam-
ple, a DVD Player). See page 17.
OUT jacks
Use these jacks to connect the DVD Recorder directly to your TV
and/or Stereo.
VIDEO (CVBS): Connect the supplied video cable (yellow) here and
to the TV’s Video In jack. See page 14.
S-VIDEO (Y-C): Connect an S-Video cable here and to a TV’s S-
Video In jack. See page 13.
COMPONENT VIDEO
(Y P
B P R ): Connect the supplied three-strand component video
cable here and to the Component Video In jacks of a TV. See page 12.
AUDIO L/R (Left/Right): Use the supplied audio cables (red and
white) to connect these jacks to the Audio In jacks of a TV or Stereo.
See pages 12-15.
Coaxial DIGITAL AUDIO OUT jack
Connect a digital audio coaxial cable here and to the digital audio
coaxial In jack of a Stereo. See page 16.
