English
15
Installation
2

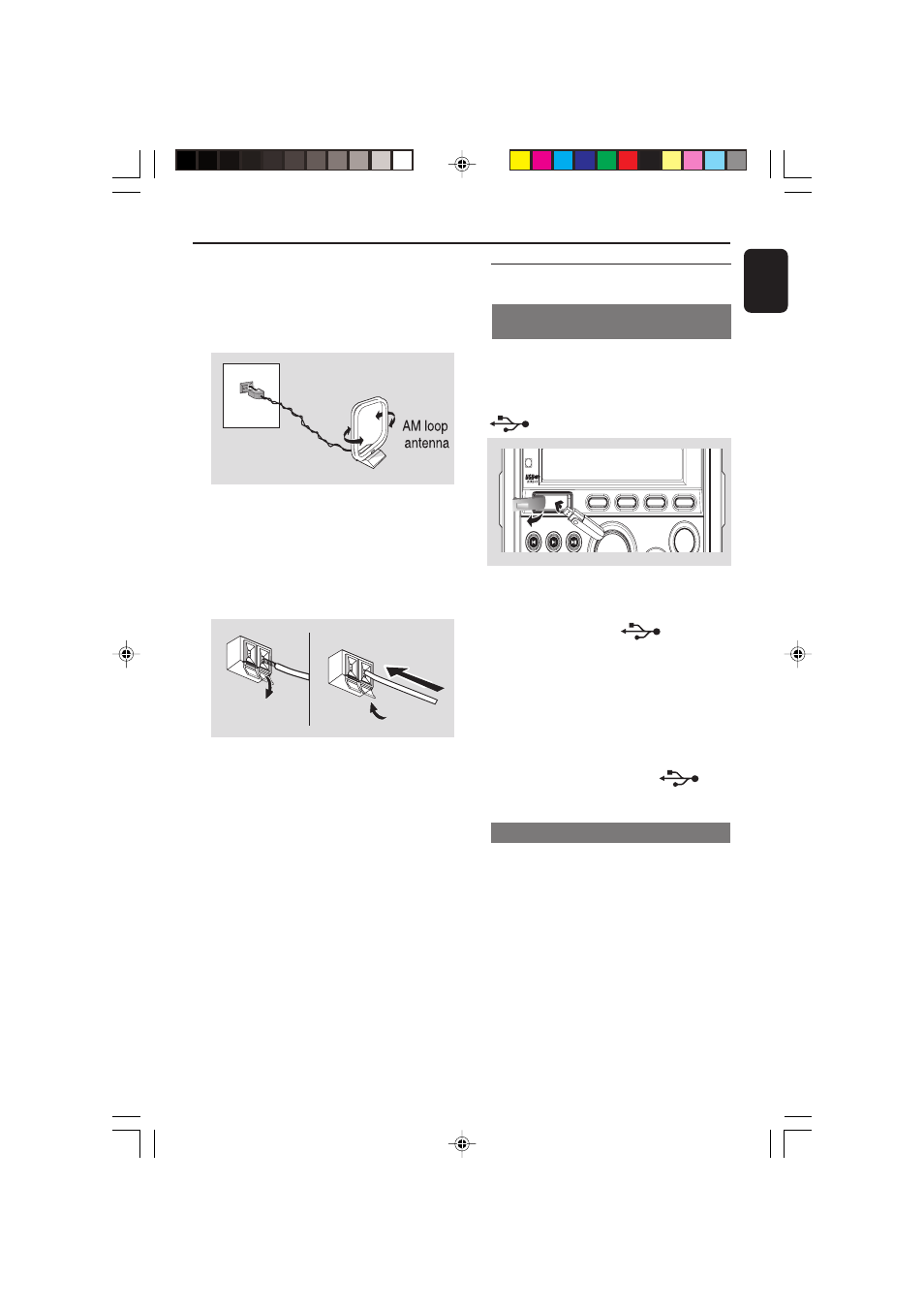

Fit the plug of the loop antenna to
AM ANTENNA as shown below
3
Adjust the position of the antenna for optimal
reception (as far away as possible from the TV,
VCR or other radiation sources)
FM antenna
The wire antenna supplied can only be used to
receive nearby stations. For better reception we
recommend using a cable antenna system or an
outdoor antenna.
1
Extend the wire antenna and fit it to FM
ANTENNA as shown below
Note: If you are using a cable antenna system or
an outdoor antenna, fit the antenna plug, instead of
the wire antenna, to FM ANTENNA .
1
Inser t the USB device’s USB plug into the socket
on MCM760
Connecting an additional
appliance
Connecting a USB device or memory
card
or
for the devices with USB cable:
a. Inser t one plug of the USB cable (not
supplied) to the socket on MCM760
b. Insert the other plug of the USB cable to the
USB output terminal of the USB device
or
for the memory card:
a. Inser t the memory card into a card reader
(not supplied)
b. Use a USB cable (not supplied) to connect
the card reader to the socket on
MCM760
2
Move the antenna in different positions for
optimal reception (as far away as possible from
the TV, VCR or other radiation sources)
3
Fix the antenna’s end to the wall
On MCM760, you can playback music from a
USB mass storage device and also record music
to such a device.
Connecting a non-USB device
It is possible to use an additional appliance, e.g.
TV, VCR or CD recorder with the set. On
MCM760, you can playback music from an
external source.
1
Inser t the red plug of the red/white audio cables
(not supplied) to the red socket
AUX/CDR IN
R and the white plug to the white socket AUX/
CDR IN L
2
Connect the other end of the audio cables to
the
AUDIO OUT terminals of the additional
appliance
AM
ANTENNA
CD TUNER USB
iR
VOLUME
BASS
TREBLE
PLAY/PAUSE
TAPE/AUX
PRESET
