APPLICATION DATA (cont)
EVAPORATOR-FAN MOTOR PERFORMANCE
UNIT
581A
UNIT
VOLTAGE
MAXIMUM
ACCEPTABLE
CONTINUOUS
BHP*
MAXIMUM
ACCEPTABLE
OPERATING
WATTS
MAXIMUM
AMP DRAW
155
208/230
4.25
3775
10.5
460
4.8
180
208/230
5.90
5180
15.8
460
7.9
240
208/230
10.20
9510
28.0
460
11.80
11,000
14.6
LEGEND
Bhp — Brake Horsepower
*Extensive motor and electrical testing on these units ensures that the
full horsepower range of the motors can be utilized with confidence.
Using your fan motors up to the horsepower ratings shown in this table
will not result in nuisance tripping or premature motor failure. Unit war-
ranty will not be affected.

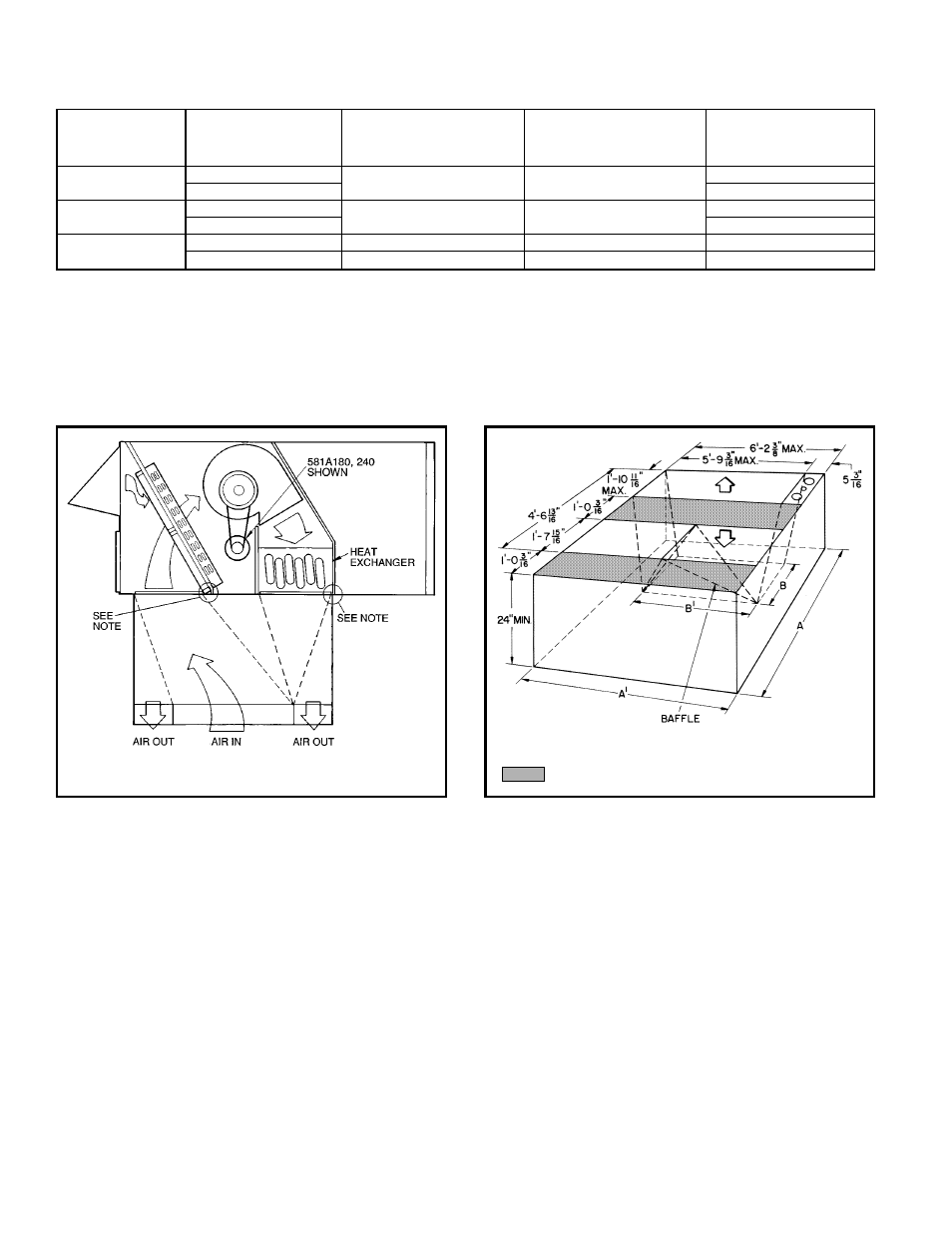

Concentric Duct Air Distribution
NOTE: Do not drill in this area; damage to basepan may result in
water leak.
Concentric Duct Details
NOTE: Dimensions A, A
Ј
and B, B
Ј
are obtained from field-
supplied ceiling diffuser.
Shaded area indicates block-off panels.
