26
S Stte ep p 8 8

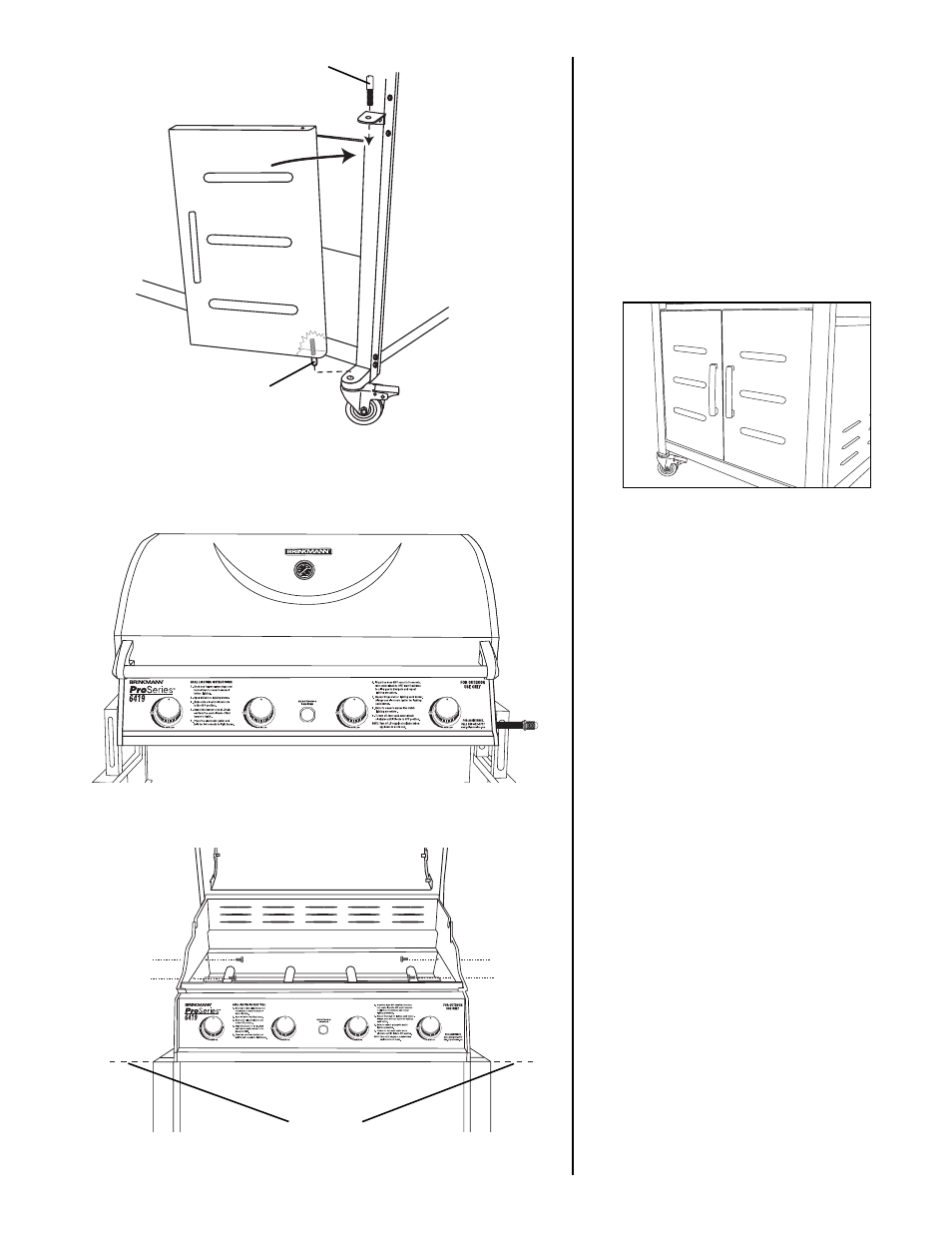

Screw the bottom door pivot into
the bottom right side door hole.
Then place bottom door pivot into
the hole on right side cart panel.
Align the top of the door with the
hole in the upper door hinge and
insert top door pivot, tighten
securely. Repeat for other door.
Note: When performing Step 9,
Lift grill body from front and
rear panels to avoid injury to
hands and fingers.
S Stte ep p 9 9
With the help of a friend, place grill
body assembly on grill cart. Grill
body will rest between upper side
sections of cart. Align front edge of
grill body assembly with front edges
of cart frame legs. Secure using
four M6 X 12mm bolts. At this point,
fully tighten four bolts holding back
panel from Step 3 and four bolts
holding door bracket from Step 5.
Alignment
Top Door Pivot
Bottom Door Pivot
