25
S Stte ep p 5 5

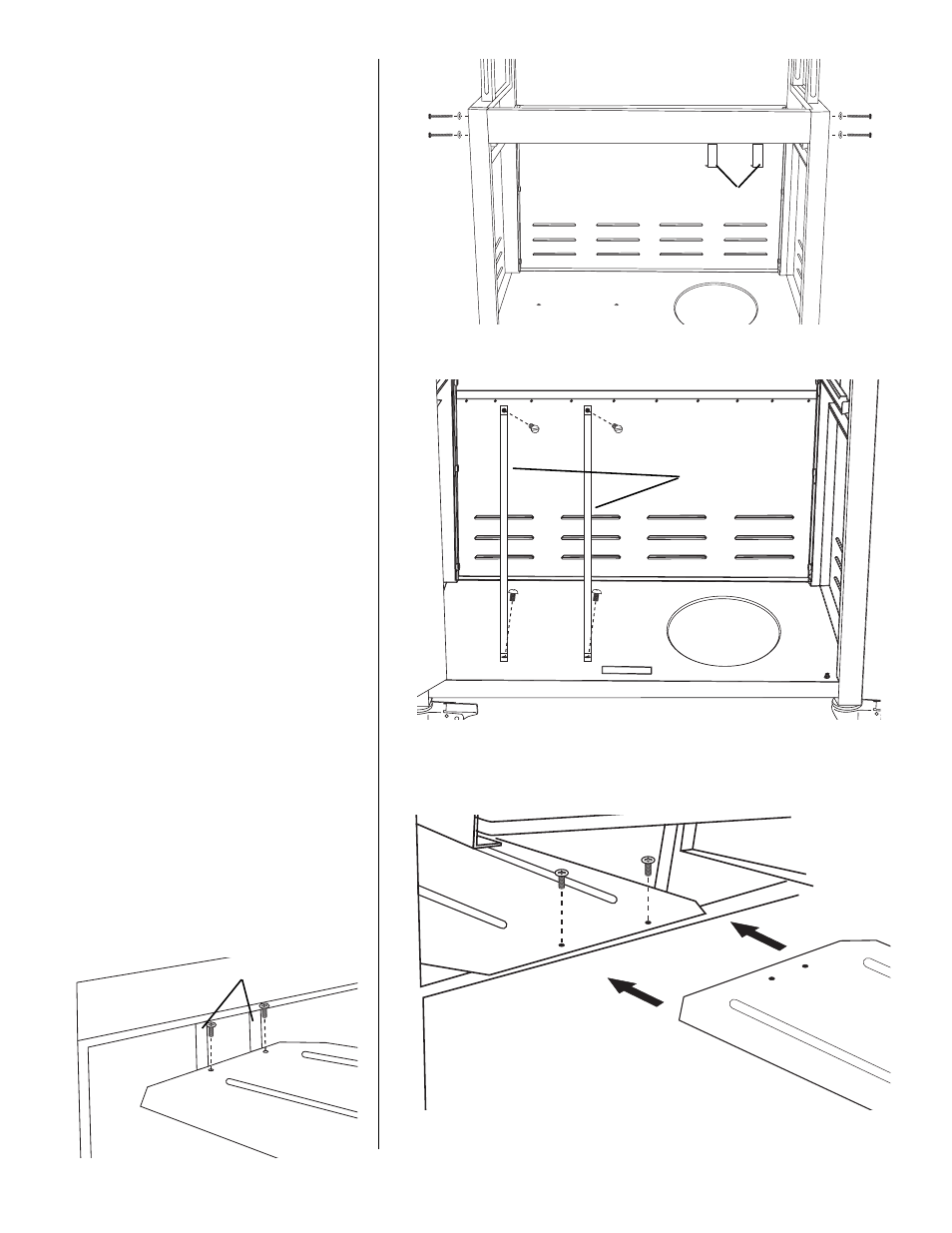

Install door bracket using the four
M6 X 60mm bolts with washers. Make
sure door stop is set toward back of
cart.
Note: Leave bolts hand tight until
Step 9.
S Stte ep p 6 6
Attach tank block bars to cart base
using two M6 X 12mm round head
bolts and back panel using two
M5 X 10mm round head bolts.
S Stte ep p 7 7
Slide heat shield into rear of grill and
rest the front of heat shield on the heat
shield supports located on the door
bracket. Secure front and rear of heat
shield with four M5 X 10mm bolts.
Heat Shield
Supports
Heat Shield
Supports
Tank Block
Bars
