12
SERVICING INSTRUCTIONS
CAUTION:
SHOCK HAZARD
Disconnect brewer from electric
power before opening any
access panel.
Note position of any wires or
hoses before removing them
from a panel.

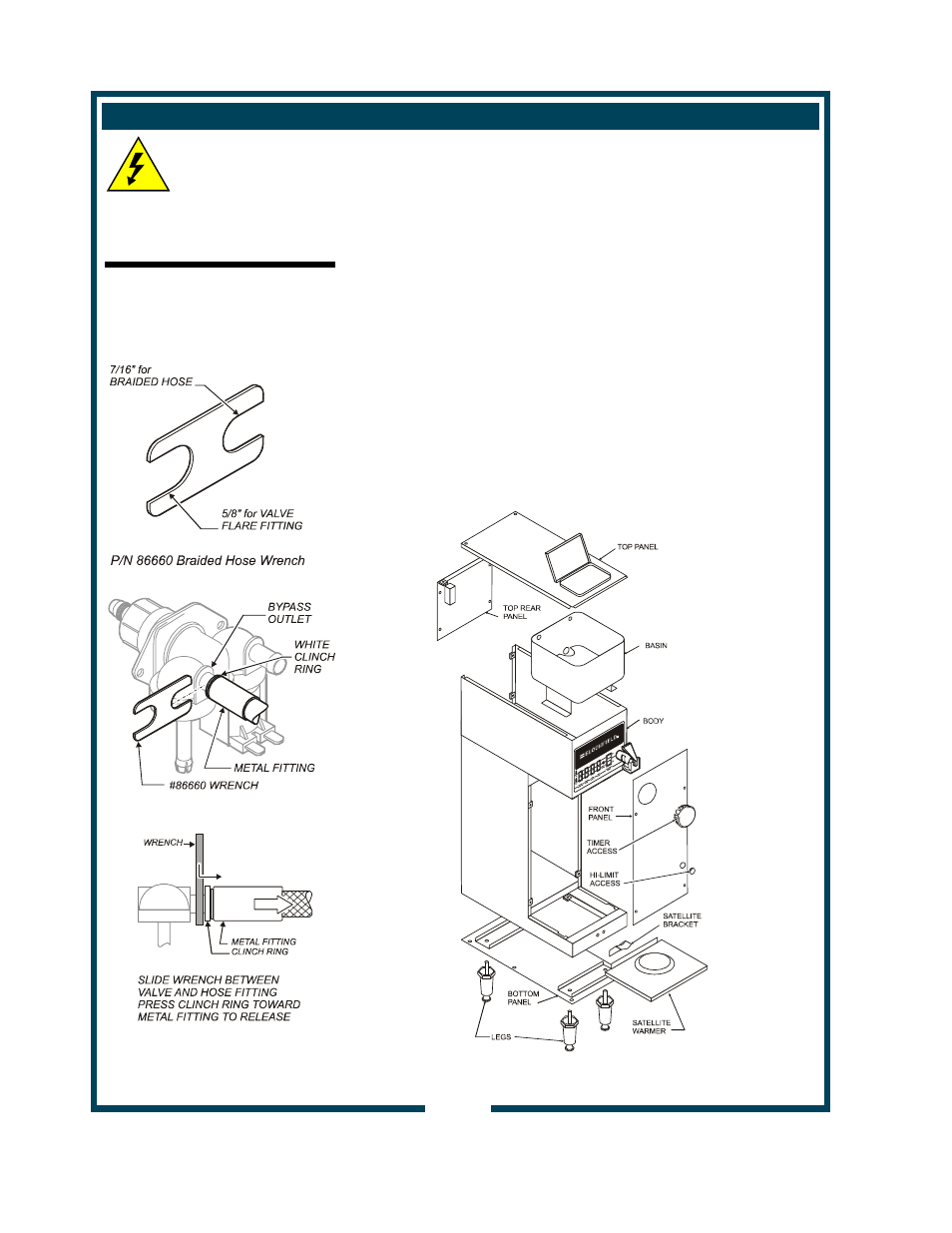

Wrench for Faucet Tubing
ACCESS PANELS
TOP PANEL is attached with two screws at the rear and a lip at
the front.
TOP REAR PANEL is attached with four screws.
BASIN sets in the body. After disconnecting three hoses, it may
be lifted out.
TIMER ACCESS and HI-LIMIT ACCESS PLUGS may be pried
out with a thin flat blade screwdriver.
FRONT PANEL is attached with four screws.
SATELLITE WARMER PANEL is held by two spring clips.
After removing the front panel, slide the warmer panel forward
approximately 1/2" to release.
SATELLITE BRACKET is attached with two screws
BOTTOM PANEL is attached with six screws.
LEGS screw into the bottom panel.
