— 3 —
CONTROL BOX ACCESS PANEL,
COMPRESSOR, LOW-PRESSURE AND
HIGH-PRESSURE SWITCHES AND
SERVICE PORT CONNECTION
ACCESS
JUNCTION BOX
CONDENSER
SIDE ACCESS
PANEL
CONDENSER MOTOR
AND BLOWER ACCESS-ALSO
PROVIDES ACCESS FOR
CLEANING CONDENSER COIL
FILTER
EVAPORATOR MOTOR
AND BLOWER ACCESS-ALSO
PROVIDES ACCESS FOR
CLEANING EVAPORATOR
FILTER DRIER AND
CAPILLARY TUBE ACCESS
ACCESS DOORS
EVAPORATOR MOTOR
CONDENSER MOTOR AND
BLOWER ASSEMBLY
CONTROL BOX
FILTER
DRIER UNIT WITH FILTER
REMOVED

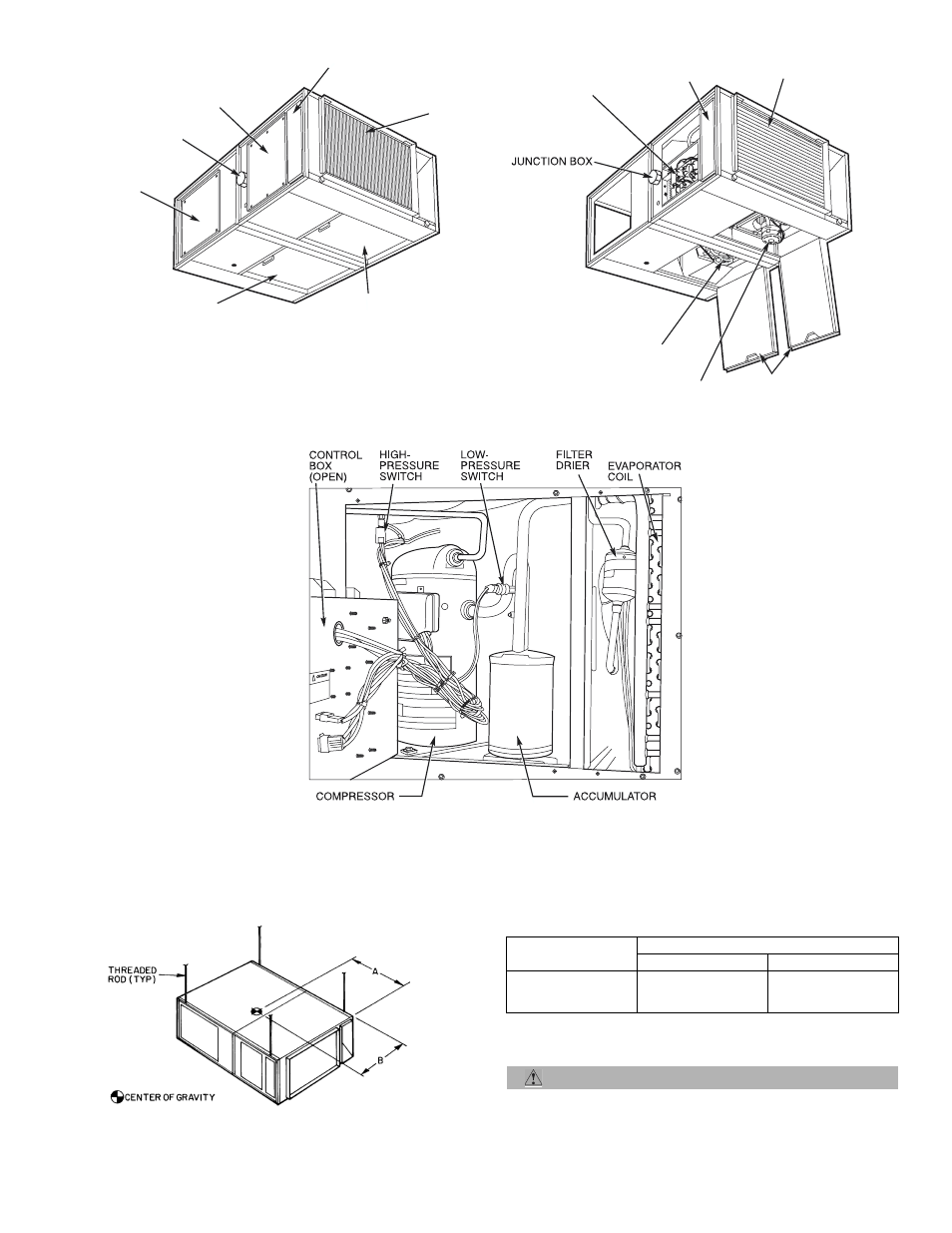

Fig. 3 — Rigging Details
Fig. 2 — Component Locations
CENTER OF GRAVITY
NOTE: Fasten threaded rods through holes in end frames as shown.
Use 2 rods on each side of unit for a total of 4.
UNIT 502A
DIMENSIONS (in.)
A B
036 28.8 26.0
048 29.0 27.0
060 28.8 26.8
CAUTION: All panels must be in place when rigging.
