RWB 6104 BAFII R01

Page 7

Never use Tefl on tape on fuel oil fi ttings.
Tape fragments can lodge in fuel line components
and fuel unit, damaging the equipment and pre-
venting proper operation.
Use oil-resistant pipe sealant compounds.


Damage to the pump could cause impaired burn-

er operation, oil leakage and appliance soot-up.

Do Not Use Tefl on Tape

!

!

CAUTION

Fuel Line Installation

Inspect/Prepare Installation Site

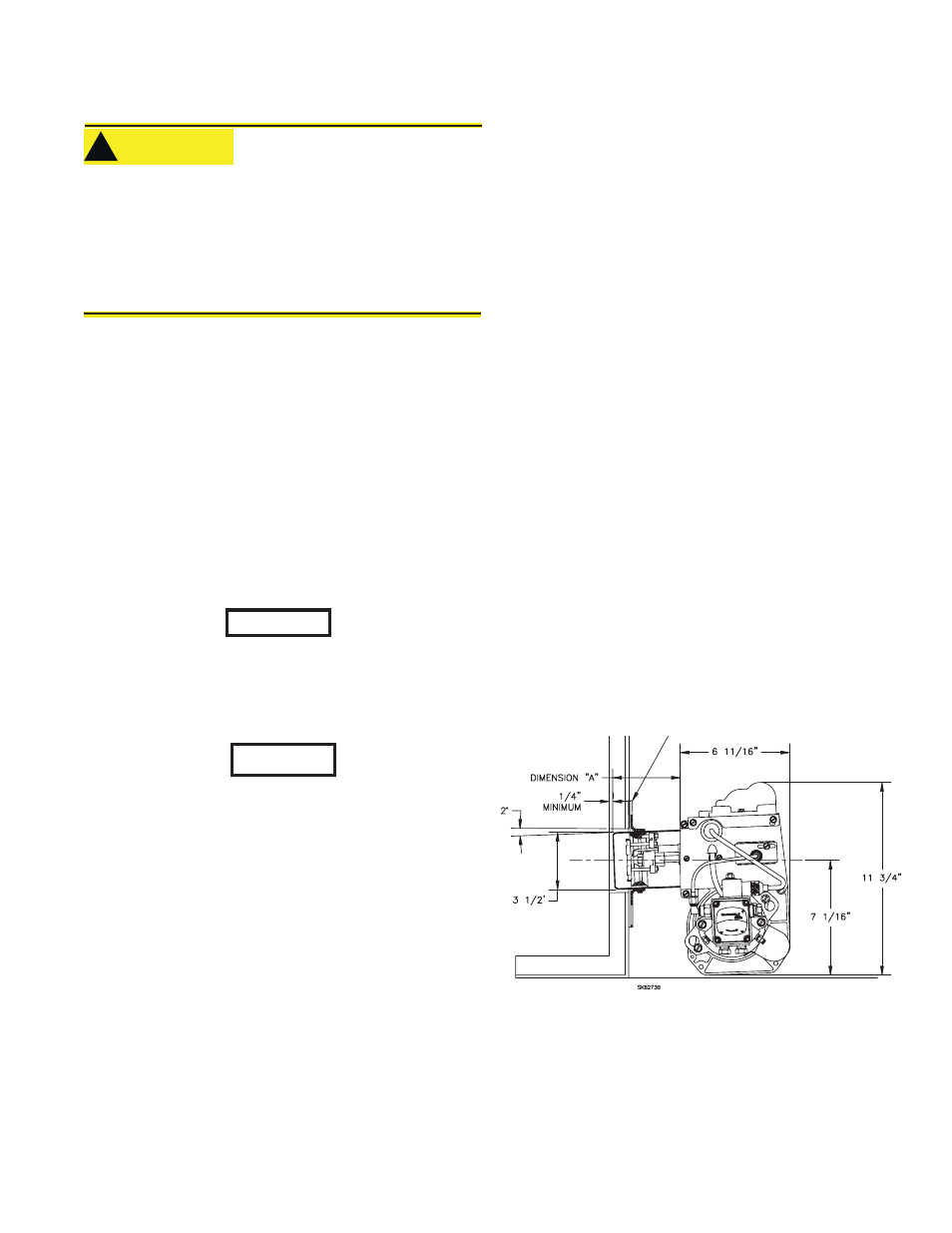

Figure 3. – Mounting Burner in Appliance

Prepare the Burner

General

In most cases, the burner is ready to mount to the

appliance. There can be situations where the burn-
er needs to be reconfi gured to perform properly in
the appliance. Review the appliance manufactur-
er’s specifi cations prior to installing to determine if
any modifi cation is required to properly confi gure
the burner.

Instruction on how to perform the following burner

preparation tasks can be found in the Professional
Maintenance section.

Remove / install burner nozzle
Check head/air adjusting plate

Mount Burner on Appliance

Verify that the air tube installed on the burner pro-

vides the correct insertion depth. Refer to Figure
3.

The end of the air tube should normally be

1/4

” back

from the inside wall of the combustion chamber.
Never allow the leading edge of the retention ring
to extend into the chamber, unless otherwise speci-
fi ed by the appliance manufacturer.

Bolt the burner to the appliance using the factory-

welded fl ange.


To further protect the fuel supply system and reduce noz-

zle orifi ce plugging with fi ring rates below 0.75 gph, a dual

fi ltration system can be installed. This typically consists of

a 50 micron primary fi lter, located near the fuel tank and a

secondary fi lter rated for at least 10 microns located near

the burner.

NOTICE

For protection in the event of fi re, some states require the

shutoff valves to be a fusible-handle design. R.W. Beck-

ett Corporation recommends this design as good industry

practice for all installations.

NOTICE

For fuel line installation, continuous lengths of heavy

wall copper tubing are recommended. Always use
fl are fi ttings. Never use compression fi ttings.

Always

install

fi ttings in accessible locations. To

avoid vibration noise, fuel lines should not run
against the appliance or ceiling joists.

Fuel Line Valves and Filter

Install two high quality oil duty rated shutoff valves

in accessible locations on the oil supply line. Locate
one close to the tank and the other close to the
burner, upstream of the fi lter.

Also install a generous capacity fi lter, rated for 50

microns or less, inside the building between the
fuel tank shutoff valve and the burner. Locate both
the fi lter and the valve close to the burner for ease
of servicing.

3 GPH 150-200 PSI 3450 R

PM

4 GPH

GPH 100-150

100-150 PSI

PSI 3450

3450 RPM

RPM

BY-PASS

INLET

A2EA-6520

A2EA-6520

NO. 2 & LIGHTER FUEL

Exclusively for Beckett

NO. 2 FUEL

Made by Suntec

Made by Suntec

INLET

Beckett

USE

USE ONLY

ONLY WITH

WITH

VALVE ON DELAY
