Briggs & Stratton Power Products Automatic Transfer Switch
Installation and Operator’s Manual

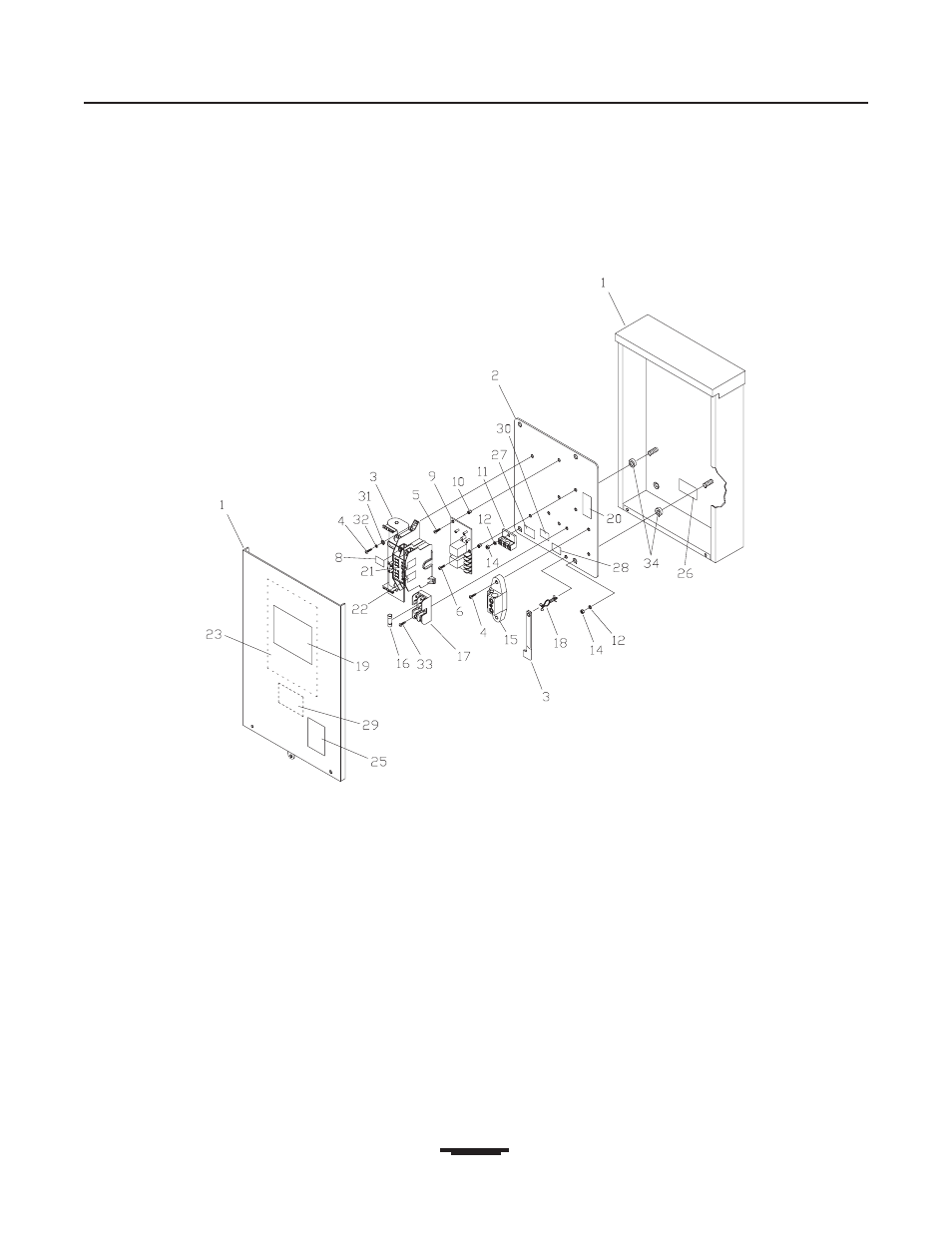

TRANSFER SWITCH EXPLODED VIEW & PARTS LIST
Item Part # Description
1 NSP ENCLOSURE, 16" x 12" x 6"
2 NSP BACK PANEL
3 191995GS TRANSFER SWITCH, 100A, with
Cover & Handle
4 * PPHMS, #10 - 32 x 1/2"
5 * PPHMS, #6 - 32 x 1/4"
6 * PPHMS, #6 - 32 x 1/2"
8 193159GS DECAL, Reinstall After
9 191668GS CONTROL, Board
10 196353GS SPACER, Nylon
11 196094GS GROUND LUG
12 * WASHER, Lock 1/4"
14 * NUT, 1/4" - 20
15 192696GS TERMINAL, Neutral
16 B4857GS FUSE
17 192151GS FUSE HOLDER
18 192557GS STANDOFF, Purse Lock
19 198136GS DECAL, Logo
Item Part # Description
20 192702GS DECAL,Term Strip
21 B5106GS DECAL, Connection, Utility
22 B5107GS DECAL, Connection, Generator
23 196522GS DECAL, 100A, ATS
25 190992GS DECAL,Warning Shock
26 190984GS DECAL, Fuse
27 B4986GS DECAL, Ground
28 192597GS DECAL, Utility, 240 VAC
29 192165GS DECAL, APPVD CB
30 193307GS DECAL, Load
31 * WASHER, Flat, #10
32 * WASHER, Ext.Tooth, #10
33 * PPHMS, #6-32 x 3/8"
34 192150GS SPACER
* - Items without part numbers are common fasteners and
are available at your local hardware store.
MODEL 01813
