2100-444-003A
Page 74

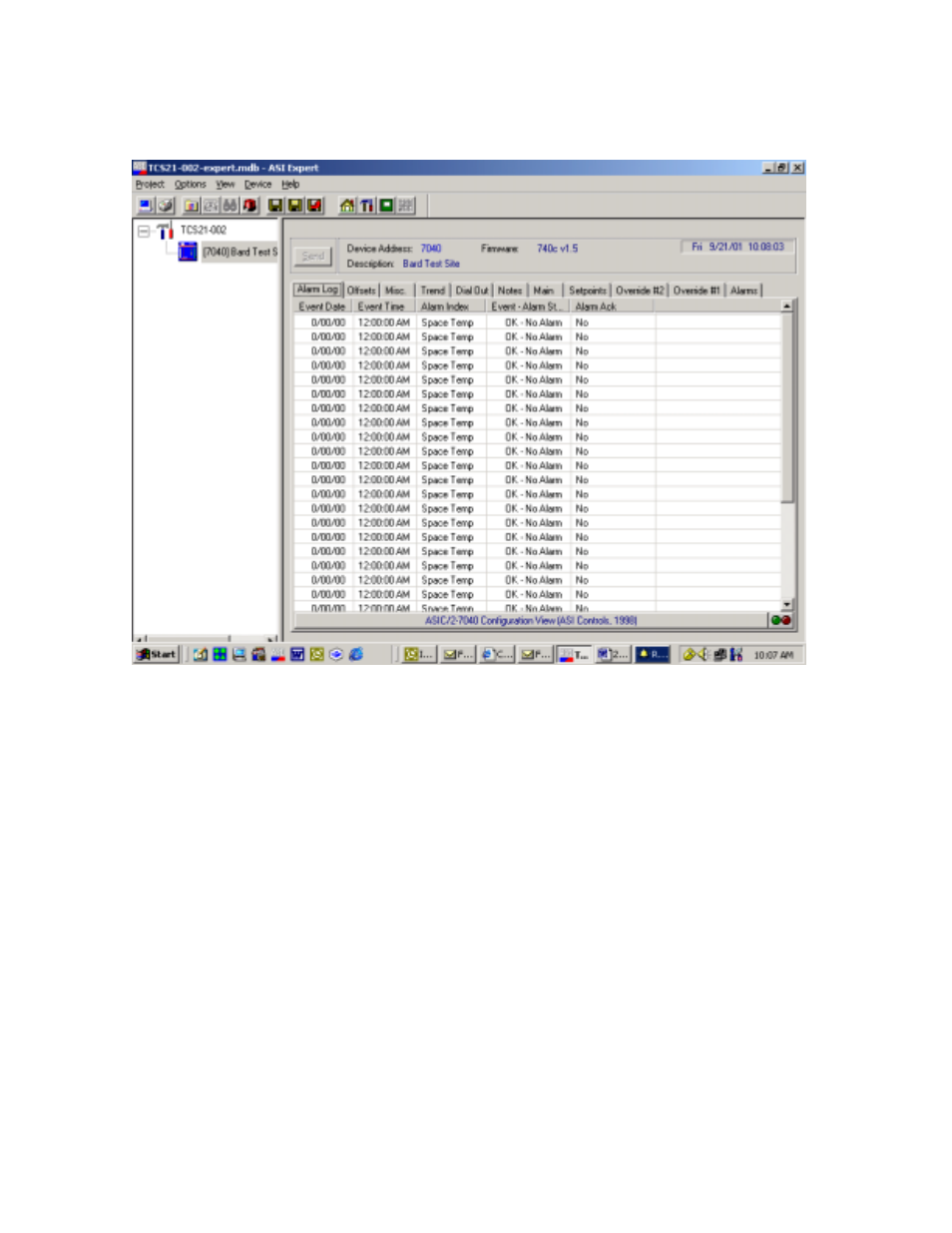

6.4.5 ALARM LOG TAB
The Alarm Log Tab has the capability to acquire the last thirty (30) Alarm conditions that the
controller has sensed. The alarm log is a rotating file. This means that the oldest data will be
overwritten by the newest data if the file is full. Clicking the Alarm tab causes the alarm information to
be brought into the program from the controller. As the information is collected, it will be displayed. The
alarm conditions are brought into the Alarm Log screen for viewing and analysis. Once the data has
been gathered, the user may print the file by clicking the print screen button or save the file by right
clicking anywhere on the alarm log and then picking “Save Summary to File”. The file can then be
named and saved.
The alarm log stores the last 30 alarm events in memory for troubleshooting purposes. If the
Alarm is enabled on the Alarms tab it will create an entry into the alarm log if an alarm occurs.
The Alarm Log can be cleared by going to the Misc. Tab. Click the Event Manager Button and
then pick “Reset Event log”. This will clear the Alarm information that is currently stored in the
controller
