7
Casings
and Accessories
General Remarks
D1/D2 S1 S2 d B Z L - Working length (kg)
mm Quantity of longitudinal bars 1 m 2 m 3 m 4 m 5 m 6 m
540/478 10 8 10 31 16 295 535 770 1015 1255 1495
620/558 10 8 10 31 18 335 610 895 1185 1440 1720
600/520 15 10 13 40 18 440 805 1170 1540 1905 2270
620/540 15 10 13 40 18 450 830 1205 1590 1970 2345
640/560 15 10 13 40 18 465 855 1245 1640 2030 2420
660/580 15 10 13 40 18 480 880 1285 1690 2095 2495
700/620 15 10 13 40 20 510 940 1370 1805 2230 2660
710/630 15 10 13 40 21 520 950 1385 1820 2255 2690
720/640 15 10 13 40 21 530 960 1410 1860 2305 2755
750/670 15 10 13 40 22 575 1035 1495 1965 2425 2890
800/720 15 10 13 40 24 615 1110 1600 2105 2600 3095
880/800 15 10 13 40 26 670 1215 1760 2315 2860 3405
900/820 15 10 13 40 26 685 1245 1805 2370 2930 3485
1000/920 18 10 10 40 30 780 1465 2145 2840 3525 4210
1080/1000 18 10 10 40 32 830 1570 2310 3060 3800 4540
1180/1100 18 10 10 40 36 925 1740 2550 3370 4185 4995
1200/1120 18 10 10 40 36 965 1790 2615 3440 4280 5396
1250/1170 18 10 10 40 38 995 1855 2715 3585 4450 5410
1300/1220 18 10 10 40 40 1025 1920 2810 3725 4620 5520
1500/1420 18 10 10 40 45 1225 2265 3300 4350 5390 6430
1800/1720 18 10 10 40 55 1460 2750 4040 5320 6610 7900
2000/1910 18 12 13 45 62 1590 3080 4570 6060 7550 9050

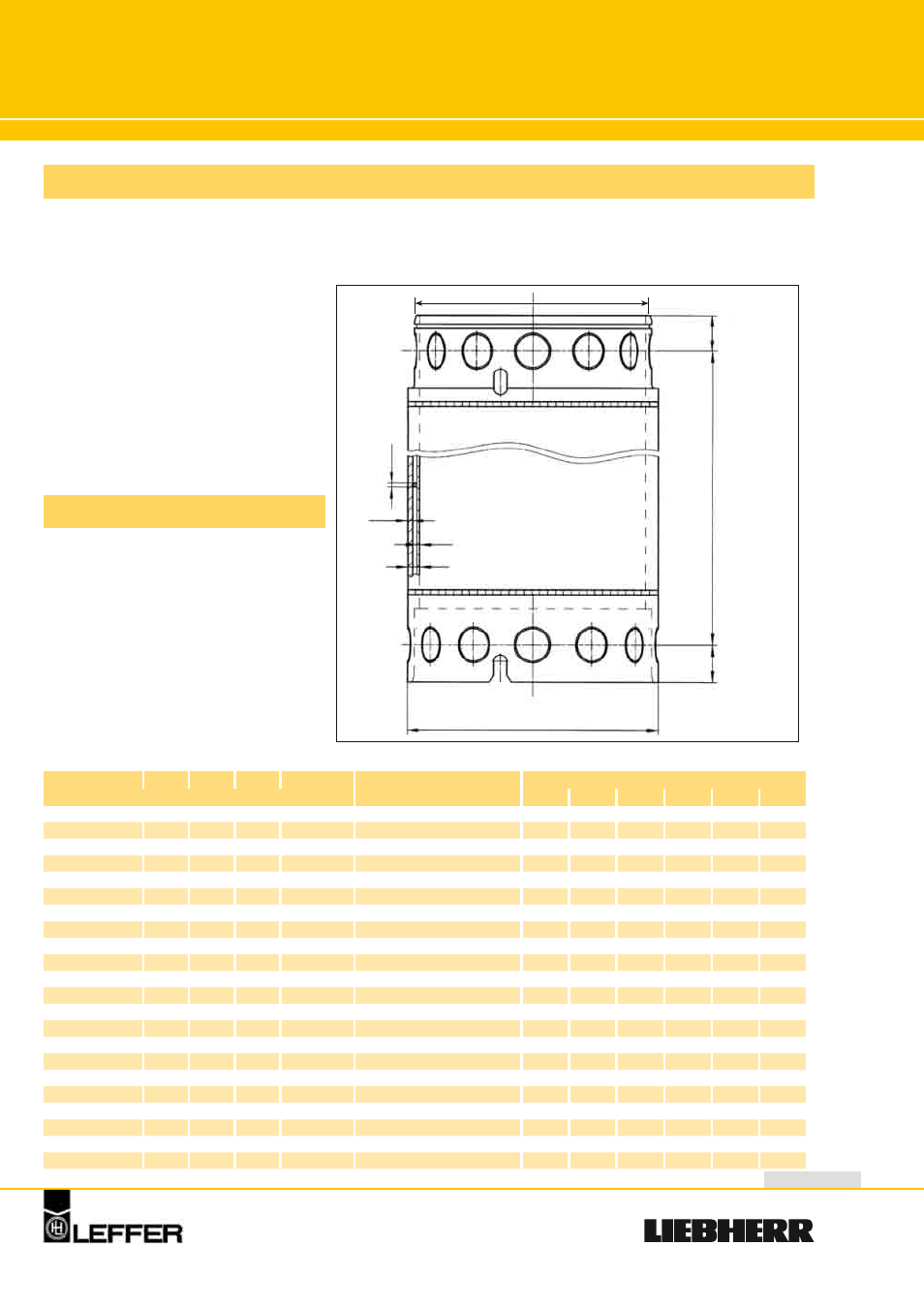

∅ d
s1
s2
B
∅ D1
115
L
114
D2
Technical Data
The casings are designed to cre-
ate cased holes down to a depth
of 35 m. Especially for the con-
struction of bored piles by rotary
drilling rigs precisely fitting casing
joints guarantee a fast placement
and bolting of the casings as well
as ideal power transmission.
Double-walled
