12
For a diameter of up to 1500 mm we re-
commend double-walled casings. For
weight reasons single walled casings
can be used for larger diameters. The
bottom casings would always be dou-
ble-walled.

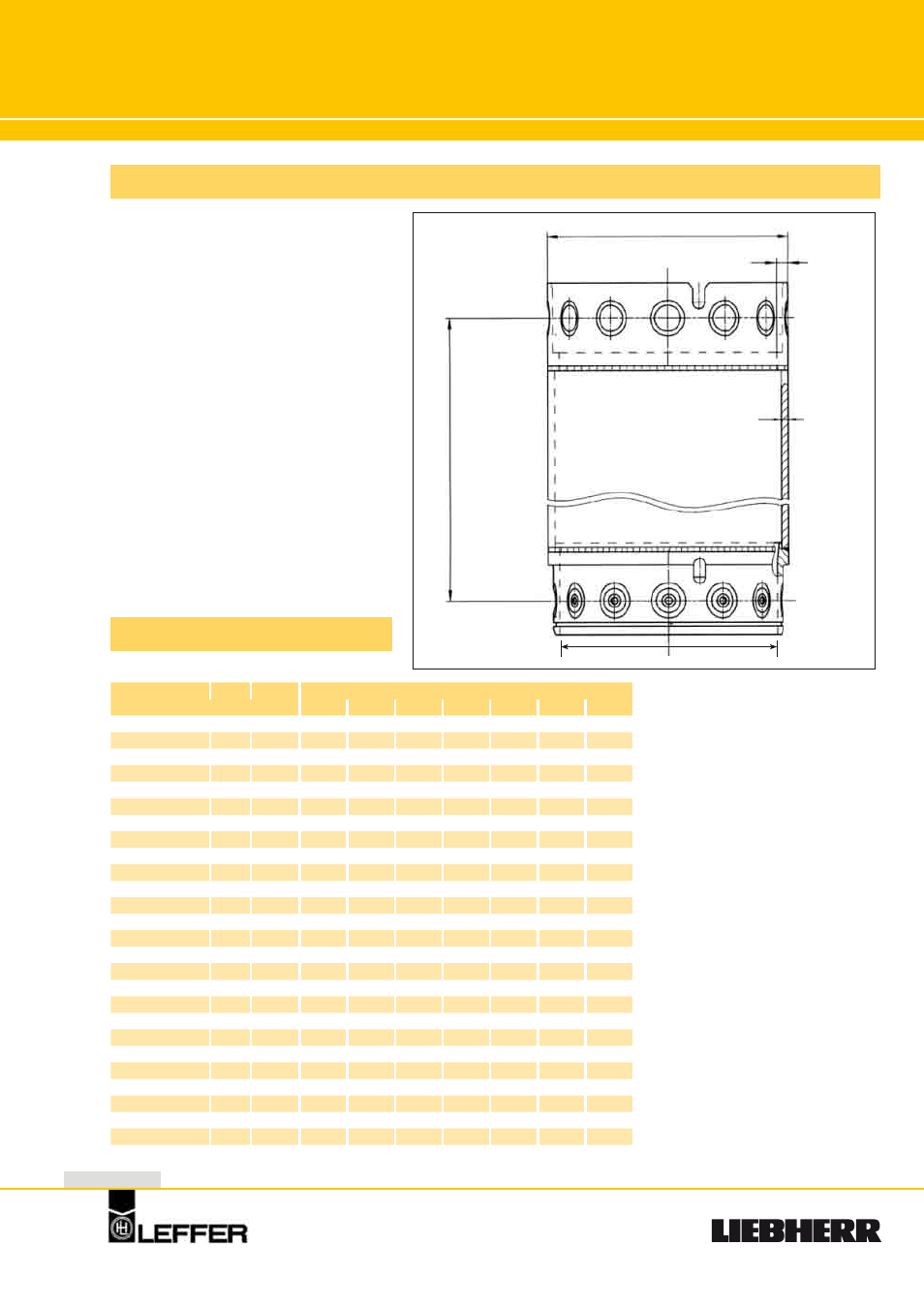

General Remarks
S
B
D1
L
D2
Technical Data
Casings
HD
D1/D2 S B L - Working length (kg)
mm 1 m 2 m 3 m 4 m 5 m 6 m 8 m
600/520 20 40 380 672 993 1255 1546 1838 2421
640/560 20 40 409 720 1032 1345 1657 1969 2593
700/620 20 40 447 789 1131 1473 1815 2157 2841
750/670 20 40 481 848 1215 1582 1949 2316 3050
800/720 20 40 514 906 1298 1690 2082 2474 3258
880/800 20 40 566 998 1430 1862 2294 2726 3590
900/820 20 40 580 1022 1464 1906 2348 2790 3674
1000/920 20 40 640 1133 1626 2119 2612 3105 4091
1080/1000 20 40 690 1190 1720 2260 2820 3350 4420
1180/1100 20 40 760 1350 1925 2510 3100 3680 4840
1200/1120 25 40 860 1600 2340 3080 3820 4560 6030
1300/1220 25 40 945 1745 2545 3375 4150 4950 6550
1500/1400 25 50 1440 2370 3300 4230 5160 6090 7950
1800/1700 25 50 1720 2830 3950 5070 6190 7310 9550
2000/1880 25 60 2190 3430 4670 5910 7150 8390 10870
2200/2080 25 60 2410 3780 5140 6510 7880 9250 11990
2500/2380 25 60 2680 4230 5790 7350 8910 10470 13590
2500/2380 30 60 2810 4670 6530 8400 10270 12140 15880
2800/2680 30 60 3150 5240 7330 9420 11510 13600 17780
2800/2680 32 60 3210 5440 7660 9890 12120 14350 18810
2800/2640 32 80 3890 6120 8340 10570 12800 15030 19490
2800/2640 34 80 3950 6310 8670 11040 13410 15780 20520
2980/2840 32 80 4230 6600 8970 11340 13710 16080 20820
2980/2840 34 80 4290 6810 9330 11850 14370 16890 21930
3000/2840 32 80 4260 6640 9030 11420 13810 16200 20980
3000/2840 34 80 4320 6850 9390 11930 14470 17010 22090
3200/3040 34 80 4610 7315 10020 12725 15430 18140 23550
