Liebherr HS 835 HD Litronic - Manual (Page 23)

23
Single/Double
Rope Pulley Grab L 1350 - 2250 SK/SZ
Type Casing diameter Length Jaw capacity Weight
mm mm l kg
L1350 SK
1500/1420 · 1500/1400
5480
800
8425
L1350 SZ 4940 7350
L1650 SK
1800/1720 · 1800/1700
5630
1100
8930
L1650 SZ 5090 8205
L1800 SK
2000/1910 · 2000/1880
5690
1200
9555
L1800 SZ 5150 8830
L2100 SK
2500/2400 · 2500/2380
5810
1500
10425
L2100 SZ 5270 9520
L2250 SK
2500/2400 · 2500/2380
5880
1800
10425
L2250 SZ 5340 10085

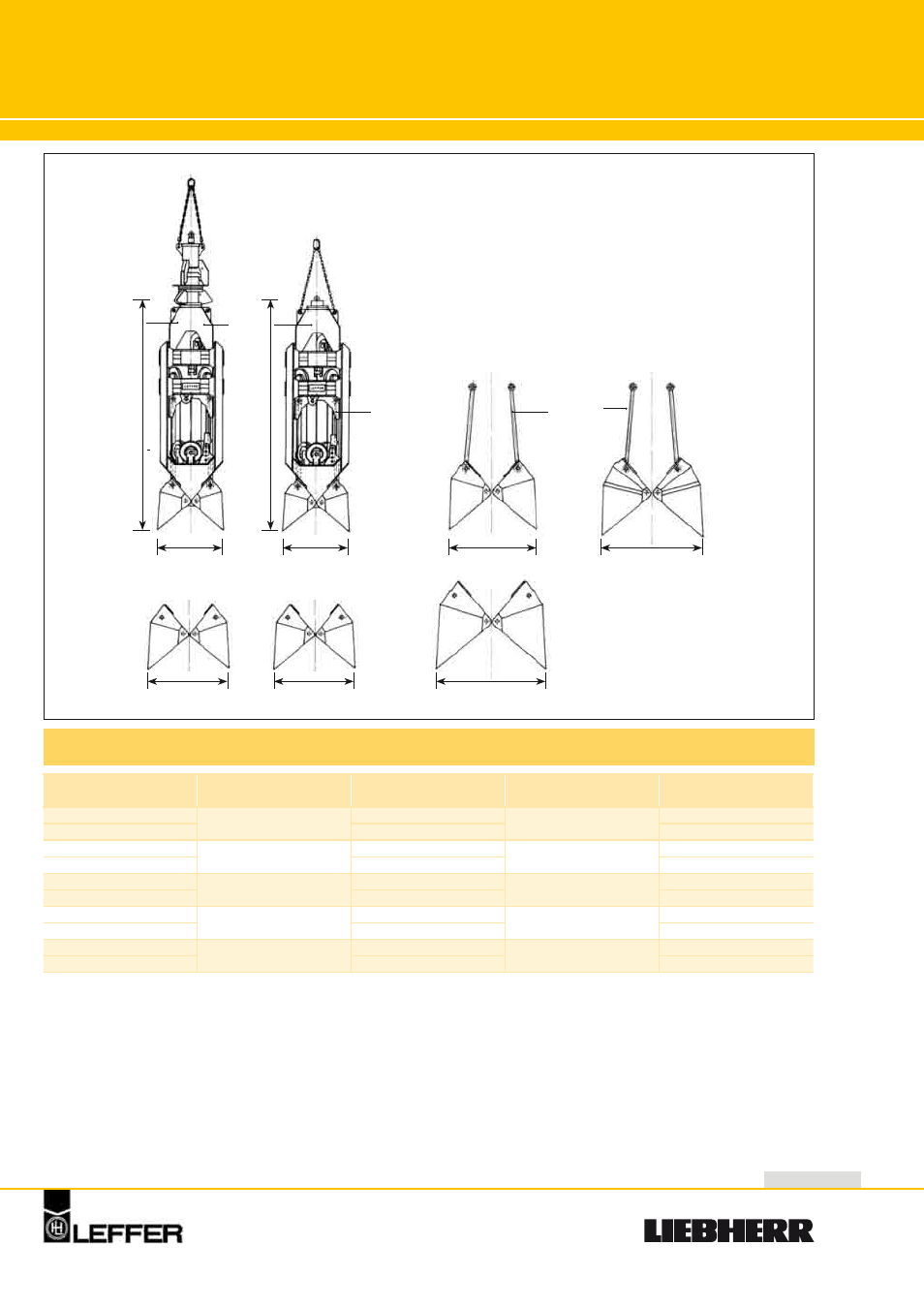

Technical Data
 1350  1350  1800  2100
 2250  1650  1650
L L
Single Rope
Pulley Grab Double Rope
Pulley Grab
Grab-
body
Chandelier
Jaw rods
1860 mm
Jaw rods
1700 mm
