Single/Double
Rope Pulley Grab L 770 - 1460 SK/SZ
Type Casing diameter Length Jaw capacity Weight
mm mm l kg
L770 SK
880/800 · 900/820
3725
140
2740
L770 SZ 3325 2410
L850 SK
980/900
3755
180
2760
L850 SZ 3355 2430
L890 SK
1000/920
3765
210
2810
L890 SZ 3365 2480
L970 SK
1080/1000 · 1100/1020
3935
260
3480
L970 SZ 3535 3150
L1050 SK
1180/1100 · 1200/1120
3965
340
3510
L1050 SZ 3565 3180
L1070 SK
1180/1100 · 1200/1120
3985
440
3570
L1070 SZ 3585 3240
L1170 SK
1300/1220
4030
520
3665
L1170 SZ 3630 3335
L1290 SK
1400/1320
4205
710
4880
L1290 SZ 3805 4550
L1360 SK
1500/1420 · 1500/1400
4260
830
4775
L1360 SZ 3860 4445
L1460 SK
1600/1520 · 1600/1500
4295
1060
4900
L1460 SZ 3895 4570

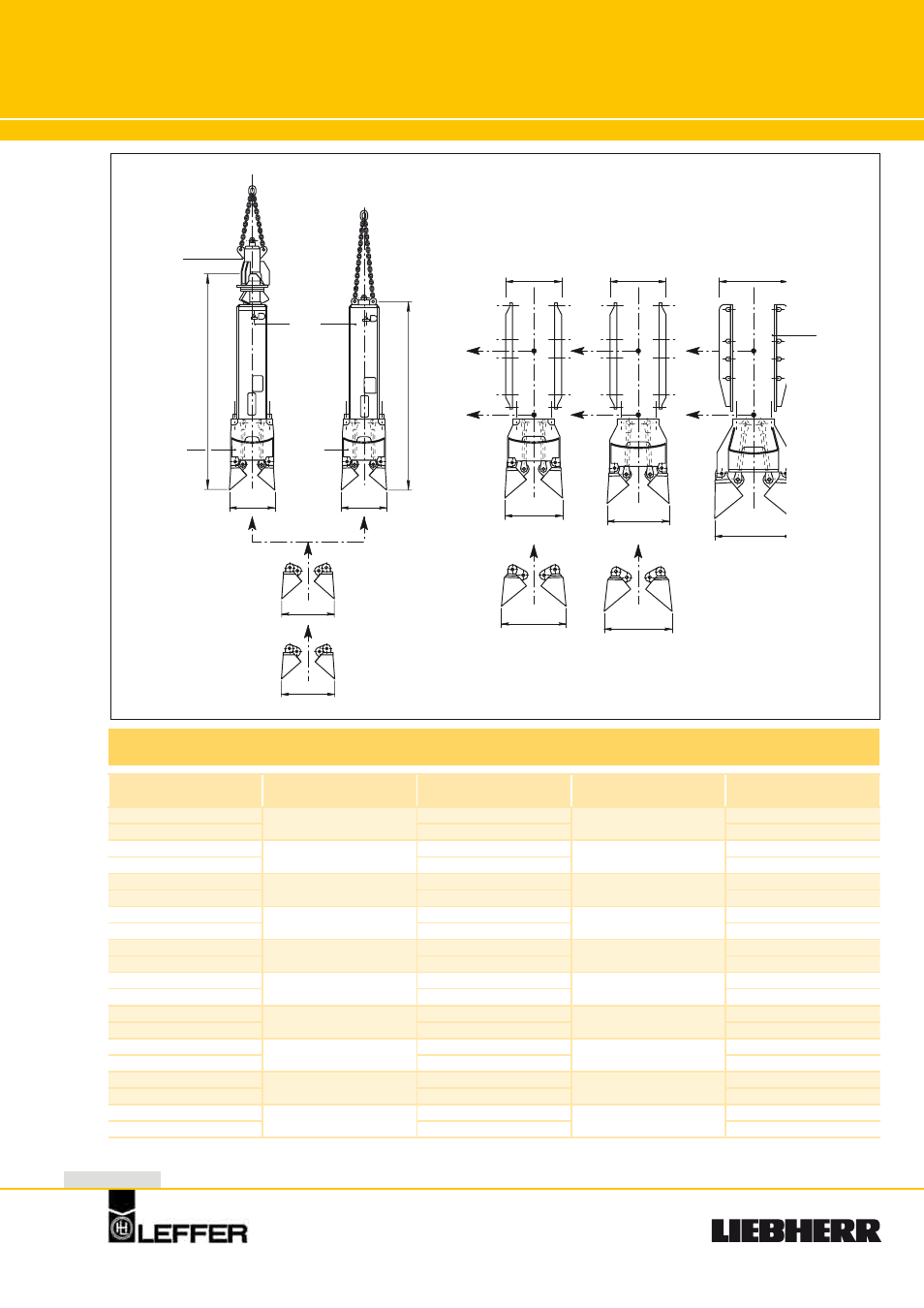

Technical Data
� 770 � 770
� 970
930
� 850
� 890
L
L
� 1050
� 1070
930
� 1290
1200
� 1360
1200
� 1170
� 1460
Single Rope
Pulley Grab Double Rope
Pulley Grab
Grab
body
Lower part
Chandelier
Lower
part
Body
Extension
