6. APPLICATIONS
6.1 Application as a mixer

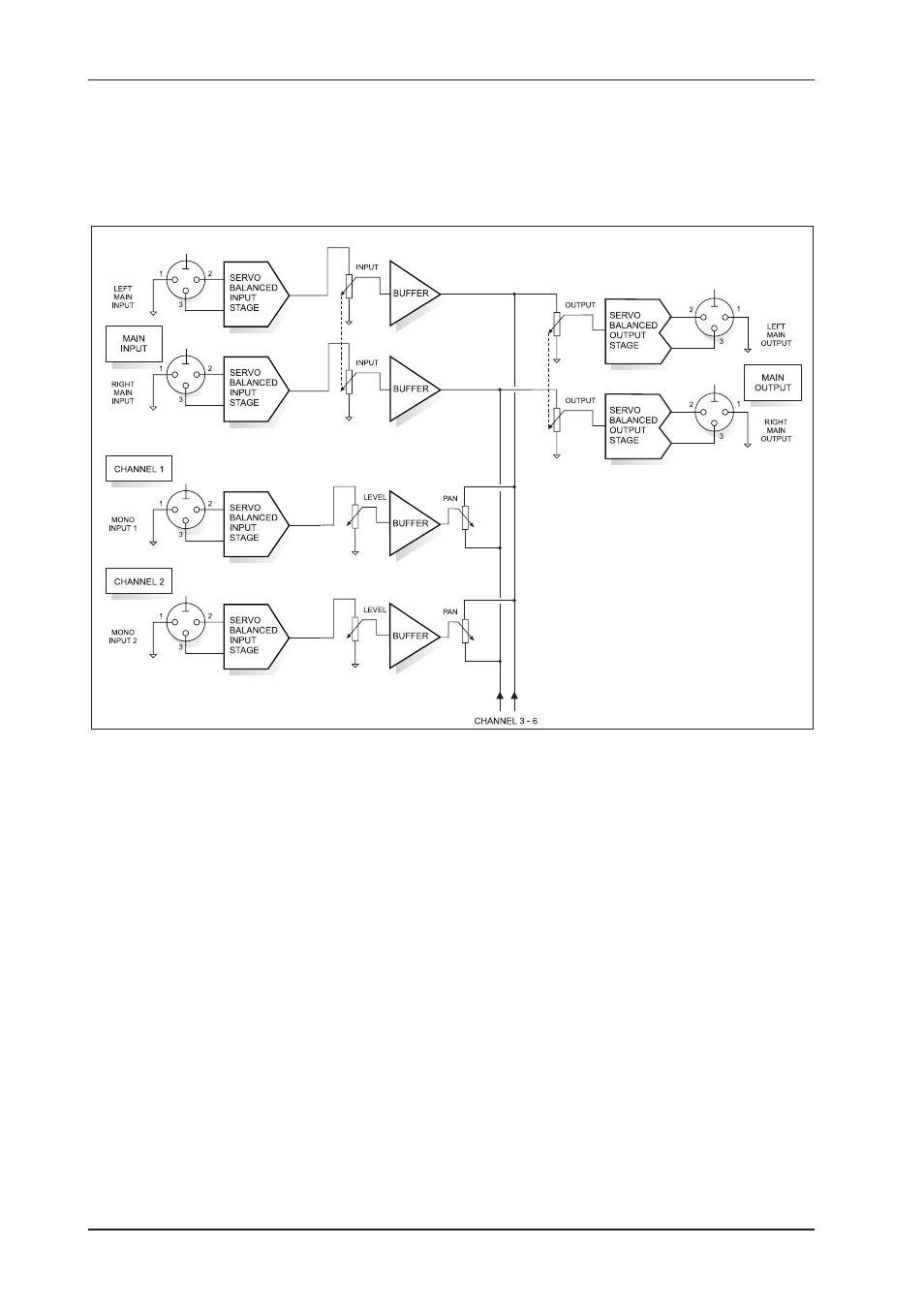

Fig. 6.1: Block diagram of the MIXER function
When the mono channels are operated in MIX mode, a maximum of 8 (6+2) mono input signals can be
summed and routed to the main outputs. In this mode, the individual signal sources are connected to the mono
inputs on the BEHRINGER ULTRALINK PRO. Each channel has a LEVEL knob to control the amount of its
signal relative to others in the main section. Via the corresponding PAN control, each mono input signal can be
routed either to the left or right main output. Of course, any intermediate pan settings can be achieved as well.
The MAIN OUTPUT LEVEL control determines the overall level of the main output signal.
Since the two main inputs are alternatively routeable to the main outputs, two additional input signals can be
added using the main inputs. For this you have to depress the MAIN LINK switch. However, as these inputs do
not feature a PAN control, the left main input will always be routed to the left main output; similarly, the right
main input can only be sent to the right main output. A total of 8 mono channels can thus be routed to two
main outputs.
