Kit installation (detailed) – Barco GALAXY NW-12 User Manual
Page 15
3. Kit installation (detailed)

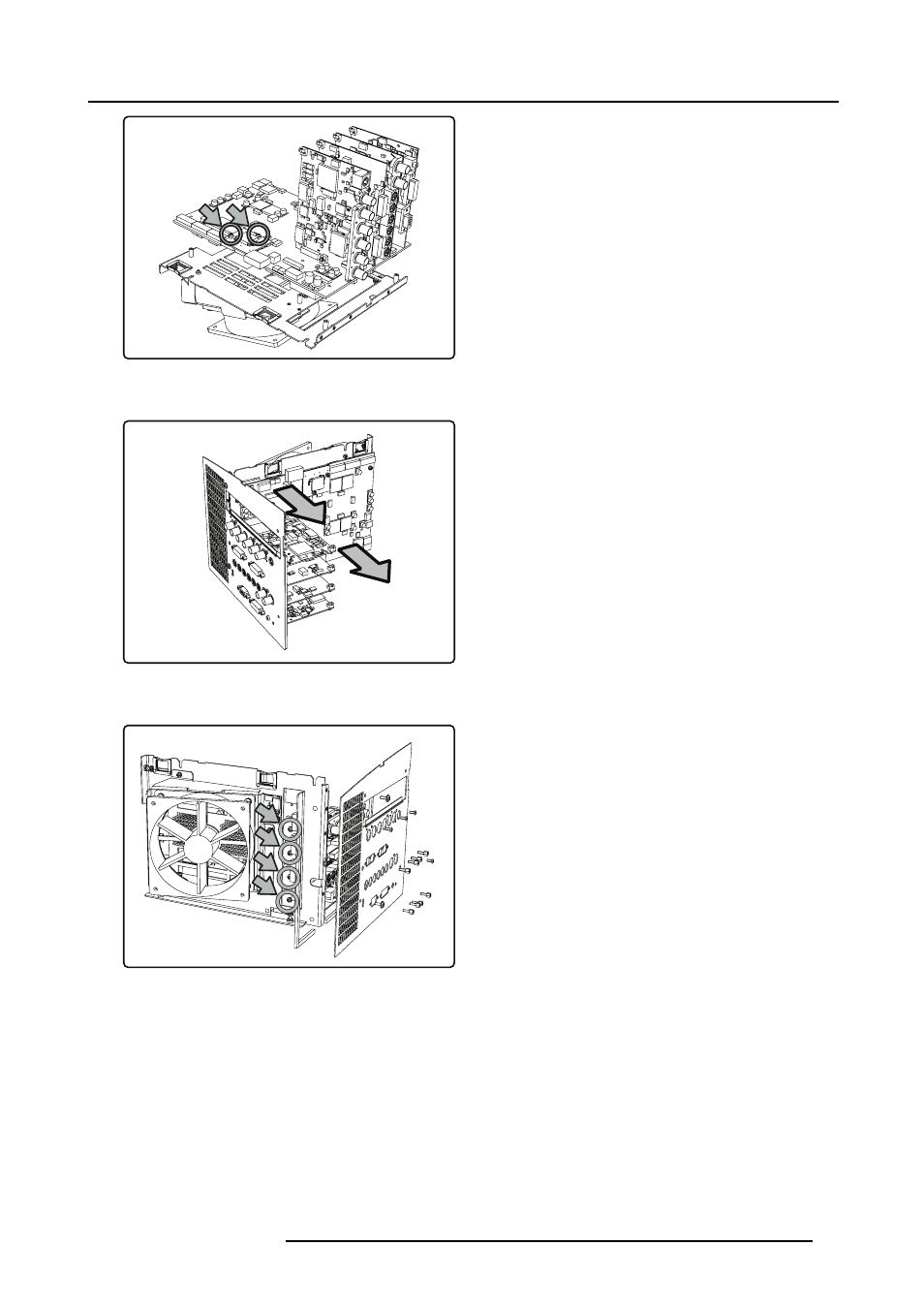

Image 3-12
PMP: fixing screws of the LVDS interface
3. Connect the PMP to the inputs by plugging in the board-to-board connectors
Image 3-13
PMP: plug into the input board connectors
4. Fix the PMP to the input boards using the side screws
Image 3-14
PMP: side screws fixing the input boards
5. Fix the PMP to the front plate using two screws
R59770498 PMP KIT 28/02/2011
11
