Kit installation (detailed) – Barco GALAXY NW-12 User Manual
Page 13
3. Kit installation (detailed)

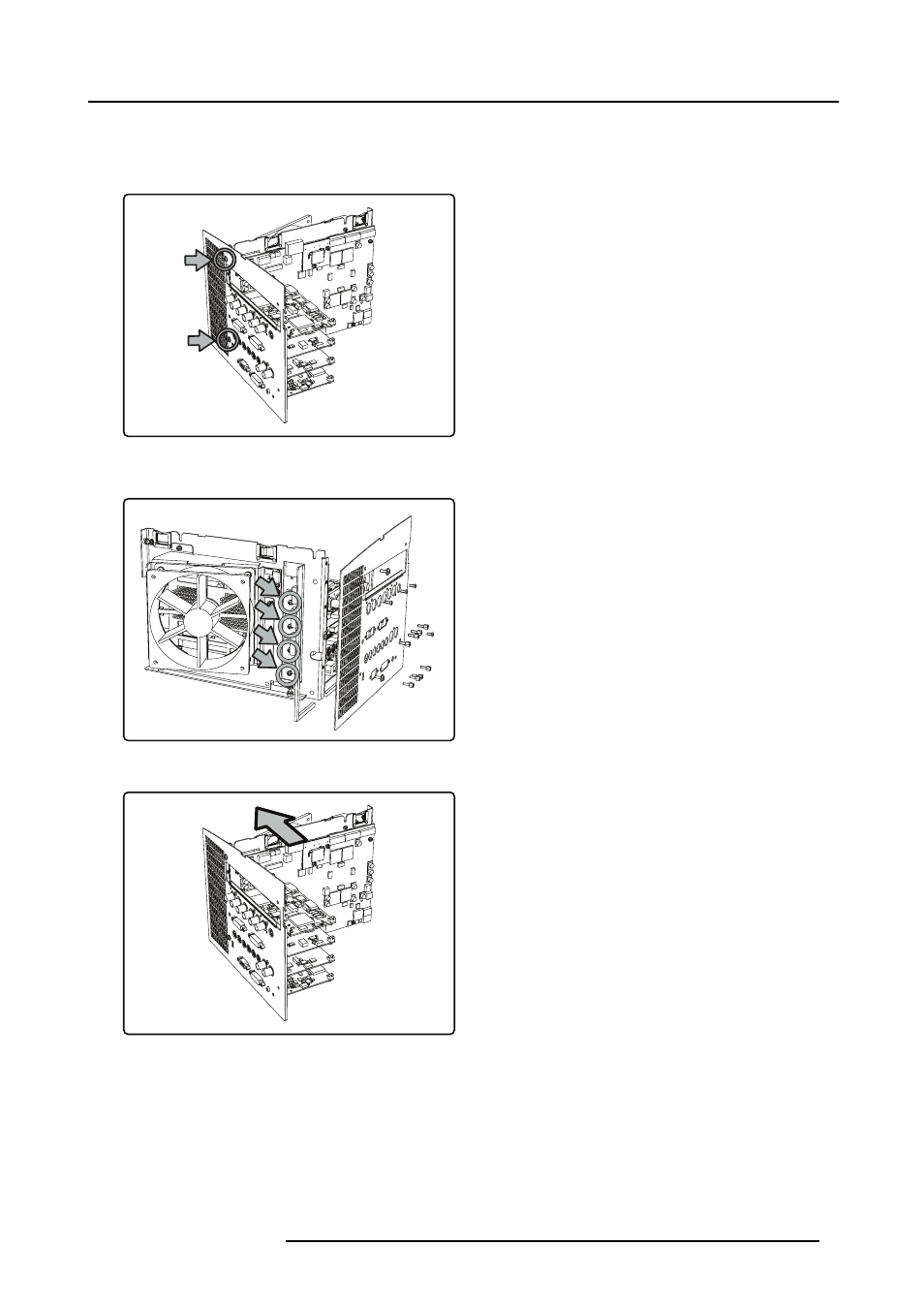

How to remove the PMP?
1. Remove the input module (see concerning chapter)
2. Remove both screws fixing the PMP to the front plate
Image 3-4
PMP: front fixing screws
3. Remove the side screws fixing the input boards to the PMP
Image 3-5
4. Disconnect the PMP from the inputs by unplugging the board-to-board connectors
Image 3-6
PMP: unplug from input boards
5. Remove the LVDS connector from the PMP (see chapter LVDS interface )
R59770498 PMP KIT 28/02/2011
9
