IU 683 / 0404 7 TowerFeed TM for Brother Printers
INSTALLATION
•
Your printer has a centered paper path. Therefore the paper paths of printer and TowerFeed have not to be
adjusted like for previous Brother printers.
Electrical Connections
•
Connect the RS-232 data cable to the serial port of the printer and
to the rear of TowerFeed (Fig. 10).
Note:
Secure the connectors with the screws to ensure proper
connection of the systems.
•
Connect the power cables to printer and TowerFeed (Fig. 10).
Note:
When you power on the system, power on FIRST TowerFeed and
then the printer.
Caution:
When rolling TowerFeed and printer to another place, take care
when crossing doorsteps to not have the unit tipping over or
TowerFeed trays sliding open.

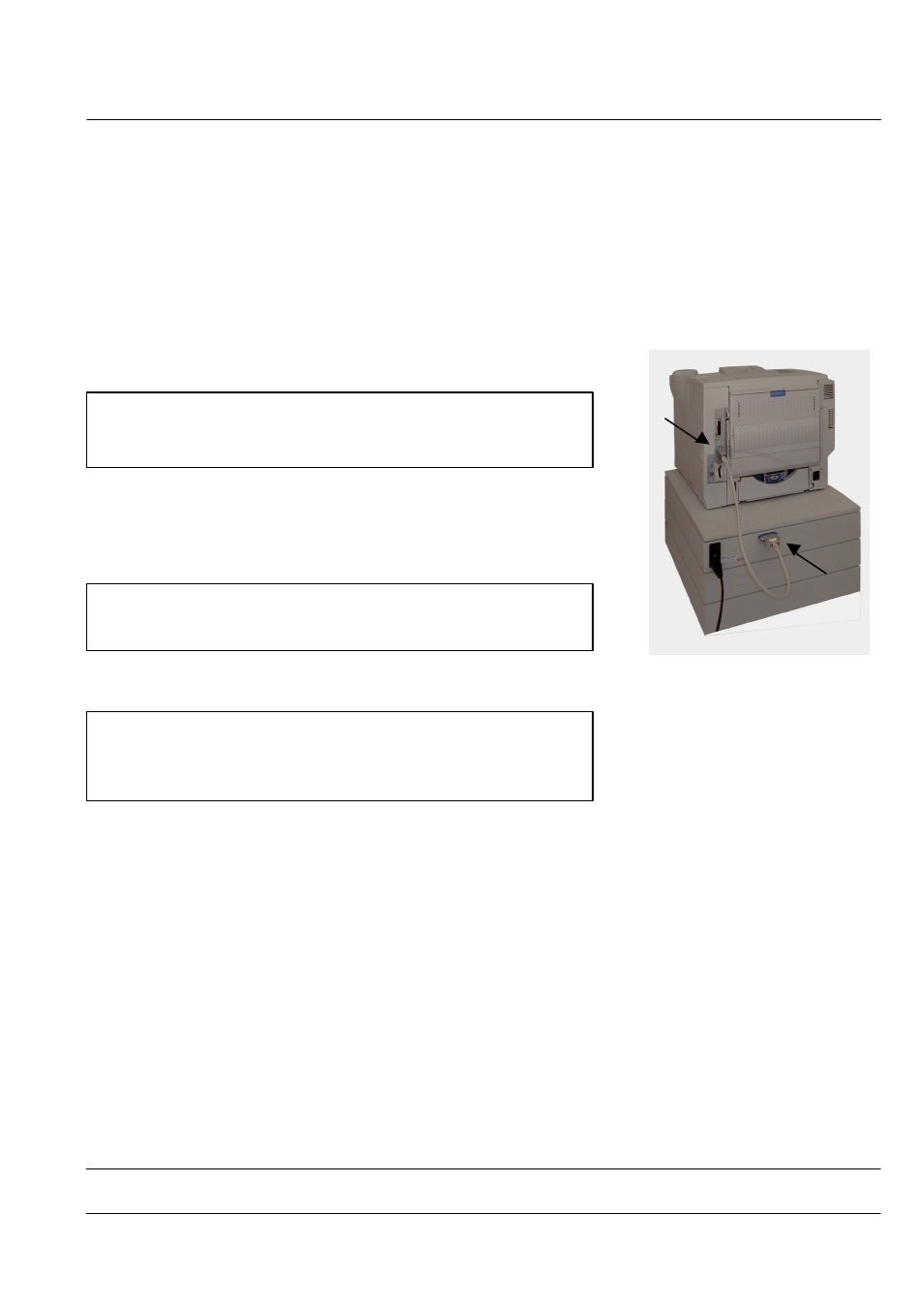

Fig. 10 Connecting the Cables and
Location of the Power Switch
