General functions

78

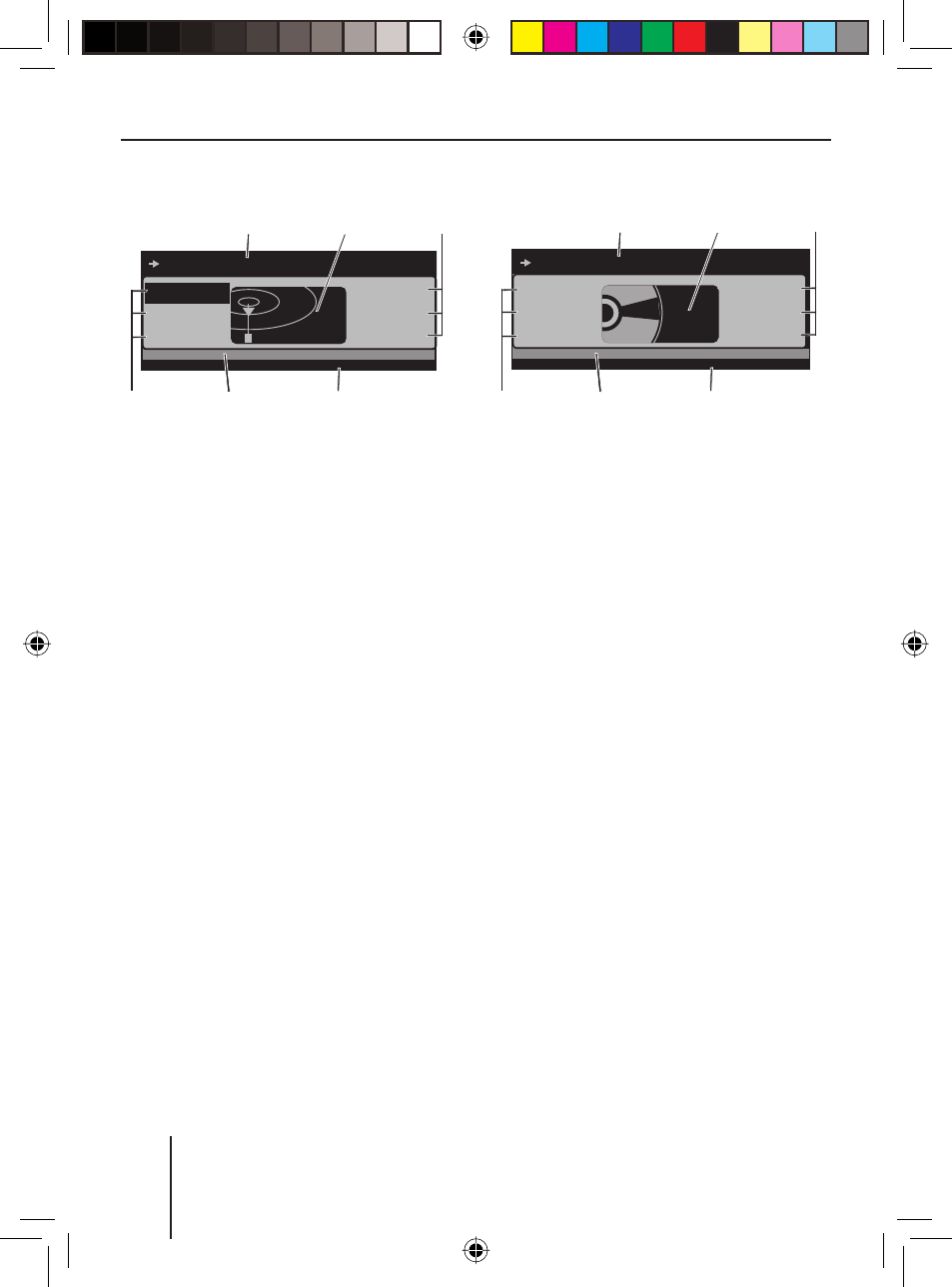

The tuner display

12:34

FM1

AUDIO

94.60
96.20
97.70

TUN>

RADIO KISS

RADIO KISS

RADIO SUN
93.40

TP XBS TMC RDS PTY

B

D

E

A

91.50 MHZ

C

C

A

Main line

Left: Arrow
Middle: Station name or frequency

B

Central area

Audio source

C

Memory location for radio sta-

tions which can be selected
using the six softkeys

7

to

<

D

Info line 1

Left: memory bank
In between: TP ¹), XBS ²), TMC ³),
RDS ⁴), PTY ⁵)
Right: Clock

E

Info line 2

Frequency

The audio CD display

MIX
REPEAT
TRAFFIC

SHOW ALL

SCROLL

INFO

TRACK 01

CD

TEXT: EUROPE - FINAL CO

01:15

12:34

CD

TP XBS TMC RDS PTY

D

E

C

B

C

A

A

Main line

Left: Arrow
Middle: Track number

B

Central area

Audio source

C

Functions which can be select-

ed using the softkeys

7

to

<

D

Info line 1

Left: Audio source
In between: TP ¹), XBS ²), TMC ³),
RDS ⁴), PTY ⁵), RPT ⁶), MIX ⁷)
Right: Clock

E

Info line 2

Left: Playing time,
Middle: CD text

¹) TP: appears if a traffi c information station is set (see page 93).

²) XBS: appears if XBass is switched on (see page 110).

³) TMC: appears only if you connect an external navigation system and it starts

searching for TMC stations.

⁴) RDS: appears if changing to alternative frequencies is permitted (see page

90).

⁵) PTY: appears if the station seek tuning was restricted to a specifi c pro-

gramme type (see page 92).
