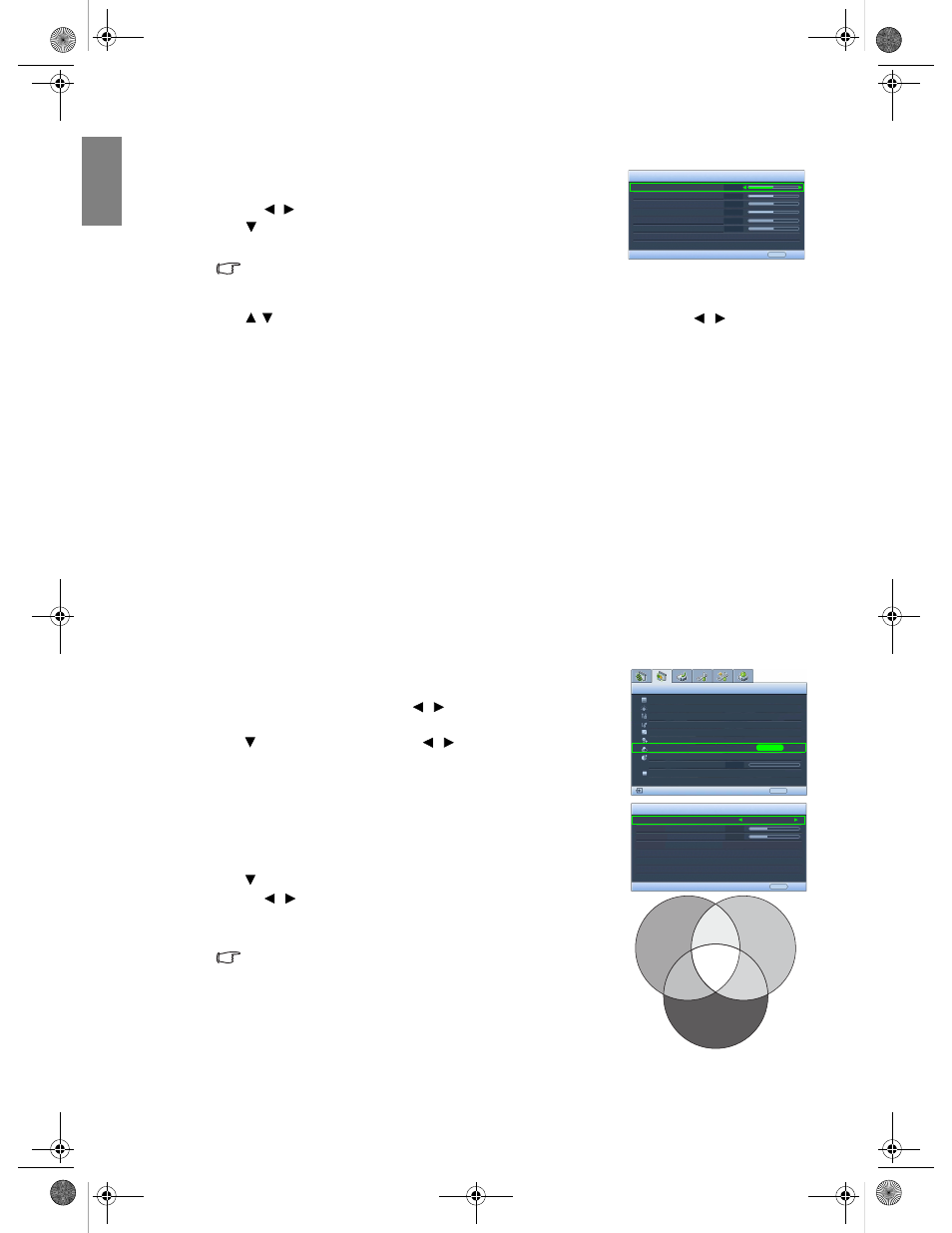

28 Using the projector
Eng
lish Setting a preferred color temperature
To set a preferred color temperature:
1.
Highlight Color Temperature and select User 1, User 2, or User 3 by
pressing /
on the projector or remote control.
2. Press to highlight Color Temperature User_ Fine Tuning and press
ENTER. The Color Temperature User_ Fine Tuning page displays.
The menu name ‘User_’ corresponds with the setting selected
in Color Temperature.
3. Press / to highlight the item you want to change and adjust the values by pressing / .
• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.
• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue.
4. To save and leave the settings, press MENU once or EXIT twice.
Color Management
In most installation situations, color management will not be necessary, such as in classroom, meeting room, or
lounge room situations where lights remain on, or where building external windows allow daylight into the
room.
Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home
theaters, should color management be considered. Color management provides fine color control adjustment to
allow for more accurate color reproduction, should you require it.
Proper color management can only be achieved under controlled and reproducible viewing conditions. You will
need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color
reproduction. These tools are not provided with the projector, however, your projector supplier should be able to
provide you with suitable guidance, or even an experienced professional installer.
The Color Management provides six sets (RGBCMY) of colors to be adjusted to favorite colors. When you select
each color, you can independently adjust its color range and saturation according to your preference.
To adjust and store the settings:
1.
In the Picture -- Advanced menu, highlight Color Management and
press ENTER. The Color Management page displays.
2. Highlight Primary Color and press / to select a color from among
Red, Yellow, Green, Cyan, Blue, and Magenta.
3. Press to highlight Range and press / to select the color range you
wish to make adjustment. The bigger the range, the more proportions of
its two adjacent colors the color contains.
Please refer to the illustration to the right for how the colors relate to
each other. For example, if you select Red and set its range at 0, only pure
red is selected. Increasing its range will include both the red color close to
yellow and red color close to magenta.
4. Press to highlight Saturation and adjusts the color saturation level by
pressing /
.
If you select Red and set its range at 0, only the saturation of the pure red
will be affected.
Saturation is the amount of that color in a video picture. Lower
settings produce less saturated colors; a setting of “0” removes that
color from the image entirely. If the saturation is too high, that color
will be overpowering and unrealistic.
5. To leave and save the settings, press MENU once or EXIT twice.
Color Temp User 1 Fine Tuning
Red Gain
EXIT Back
Green Gain
Blue Gain
Red Offset
Green Offset
Blue Offset
+50
+50
+50
+50
+50
+50
Black Level
Clarity Control
Color Temperature
Picture -- Advanced
S-Video
0 IRE
EXIT Back
Normal
Color Temperature User_ Fine
Gamma Selection
Color Management
2.4
Color Management
Primary Color
Range
Saturation +15
+15
Magenta
ENTER
Red
Yellow
Green
Cyan Magenta
Blue
EXIT Back
Brilliant Color
IRIS
Lens Shift 0
On
Dynamic Black On
