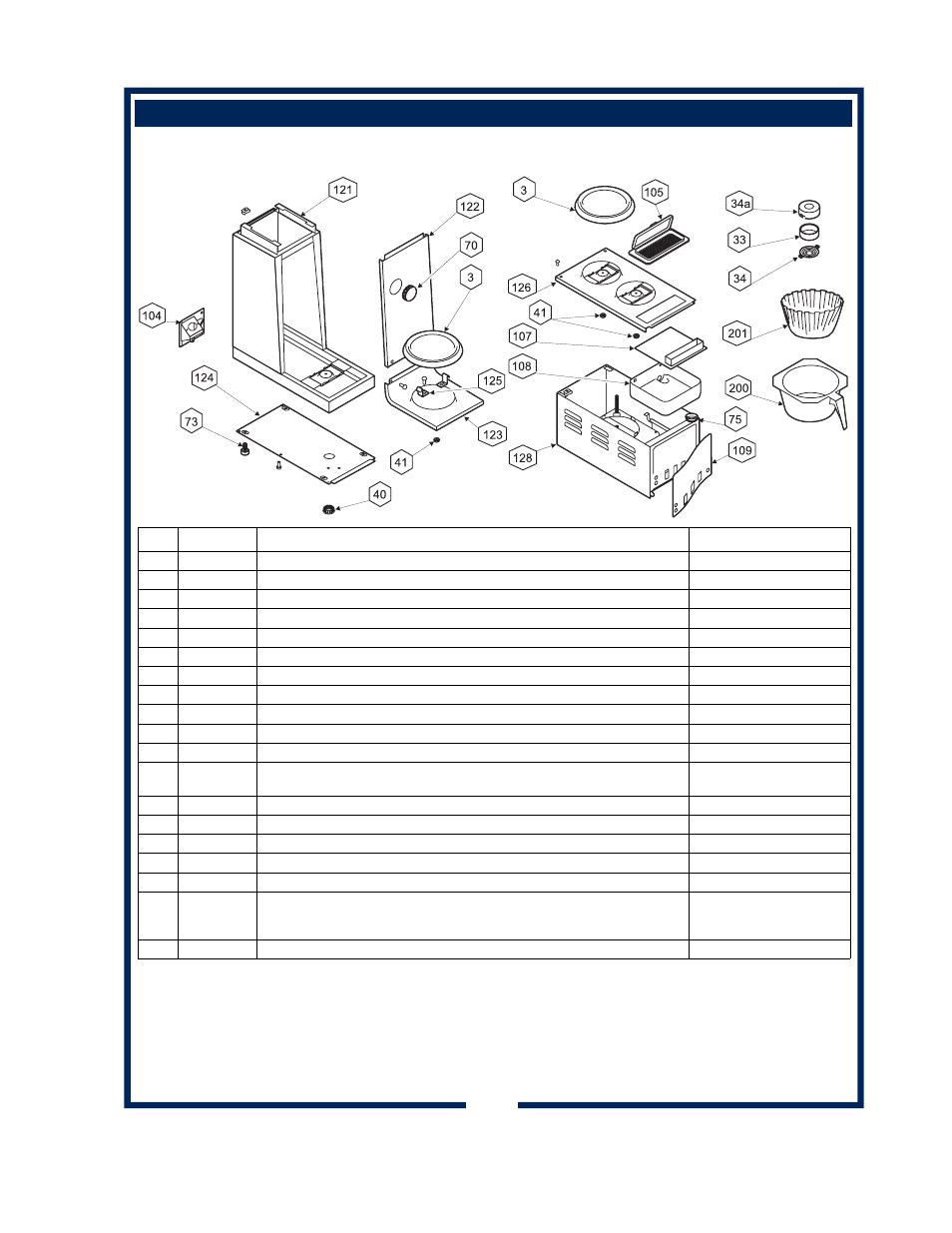

EXPLODED VIEW & PARTS LIST (continued)
CABINET COMPONENTS
21
601
75815
Owner
s
M
anual In
tegri
ty Decante
r
B
rewers
ITEM PART NO. DESCRIPTION USED ON
3 8700-16 COVER PLATE, WARMER BLACK 9010, 9012(CA), 9016(EX)
33 8543-42 GASKET, SPRAY HEAD 9010, 9012(CA), 9016(EX)
34 82727 SPRAY DISK, EMBOSSED 9010, 9012(CA), 9016(EX)
34a 8543-45 RETAINER, SPRAY HEAD (REQUIRES DRILL/RIVETS TO INSTALL) 9010, 9012(CA), 9016(EX)
70 8706-75 BUTTON PLUG, 2", METAL 9010, 9012(CA), 9016(EX)
73 81732 LEG ASSEMBLY, LEVELLING 9010, 9012(CA), 9016(EX)
75 8543-69 BUSHING, HEYCO 9010, 9012(CA), 9016(EX)
104 85089 DOOR, SOLENOID ACCESS, PLASTIC 9010, 9012(CA), 9016(EX)
105 86666 POUR OVER ASSEMBLY, PLASTIC 9010, 9012(CA), 9016(EX)
107 9012-28 SPLASH GUARD, POUR-OVER 9010, 9012(CA), 9016(EX)
108 8541-21 BASIN PAN 9010, 9012(CA), 9016(EX)
121
9012-11
9016-211
BODY & BASE ASSEMBLY
BODY & BASE ASSEMBLY, EXPORT 9010, 9012(CA), 9016
9016(EX)
123 9012-6 PANEL, LOWER FRONT 9010, 9012(CA), 9016(EX)
124 9012-23 BOTTOM PLATE 9010, 9012(CA), 9016(EX)
125 8543-80 CLIP, MOUNTING 9010, 9012(CA), 9016(EX)
126 9012-10 BASIN COVER W/ 2 WARMER PLATE MOUNTS 9010, 9012(CA), 9016(EX)
200
8942-6B
8942-6
8707-6
BREW CHAMBER, BLACK PLASTIC
BREW CHAMBER, BROWN PLASTIC (OPTIONAL limited to stock on hand)
BREW CHAMBER, STAINLESS W/ WIRE BASKET (OPTIONAL)
9010, 9012(CA), 9016(EX)
201 POF FILTER PAPER, COFFEE (CASE OF 1000) 9010, 9012(CA), 9016(EX)
122 9012-7 PANEL, UPPER FRONT 9010, 9012(CA), 9016(EX)
