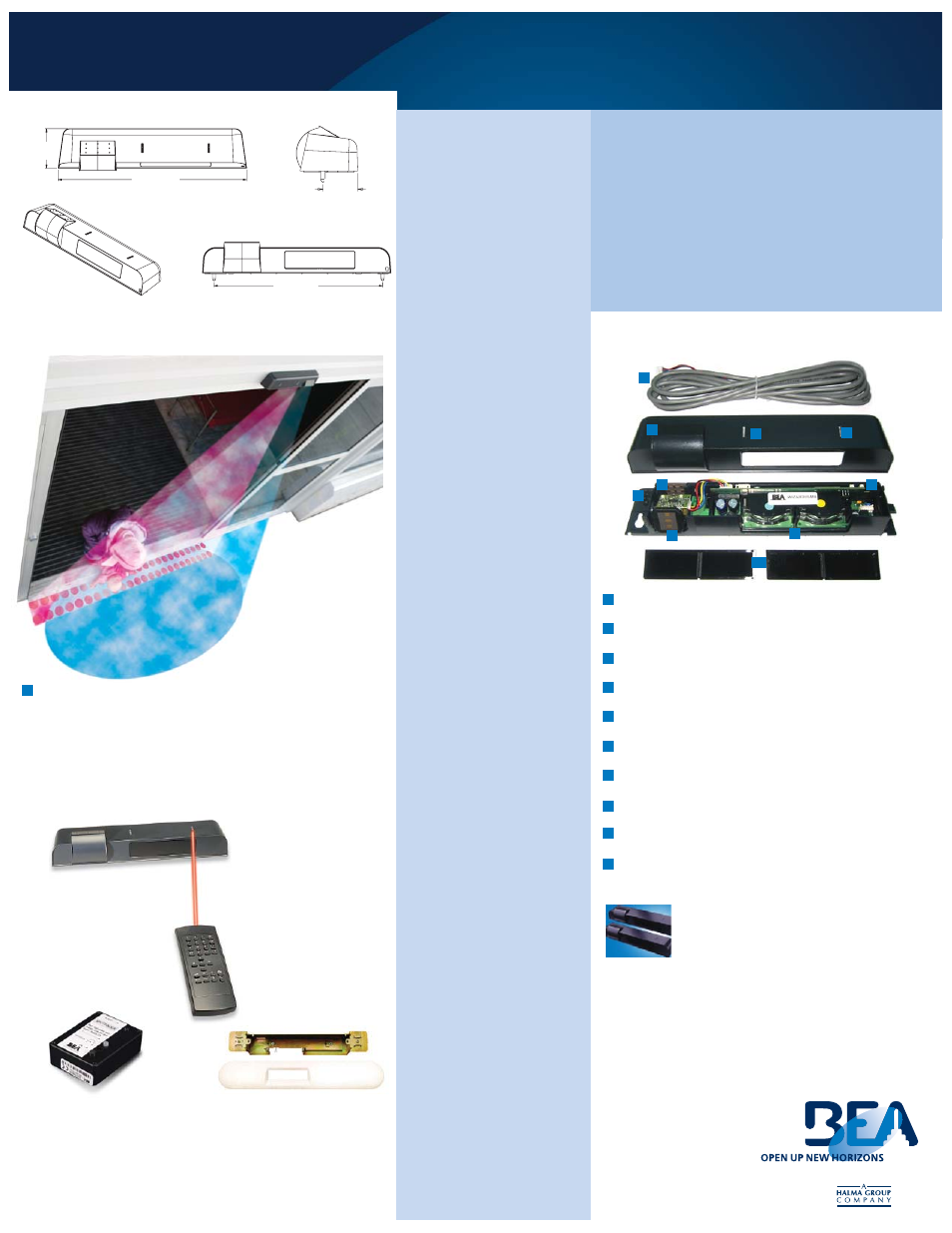

BEA Wizard - Manual (Page 2)

BEA’s Motion & Presence Detector
for Automatic Doors
T H E W I Z A R D
P E D E S T R I A N
1
2 4 3
Contact Information
BEA Inc.
RIDC Park West
100 Enterprise Drive
Pittsburgh PA, 15275
Phone +1.412.249.4100
Fax +1.888.523.2462
Toll Free 1-800.523.2462
BEA West
2401 Pine Street
Los Angeles, CA 91767
Phone +1.909.596.3011
Fax +1.909.596.5411
Toll Free 1-877.232.9378
The Wizard will provide optimal safety in the threshold area
with two rows of 24 focused infrared spots (red) while insuring
accurate detection in front of the door with K-Band microwave
technology (blue).
Wizard System
1
2
3
4
Cable
Cover
LED Indicator
I.R. Remote Receiver
2nd Antenna Storage
Mounting Screws
Motion Sensor
Manual Set-up Push Buttons
Presence Sensor
Front Lenses
D I M E N S I O N A L D R A W I N G S
A P P L I C A T I O N S
R E L A T E D P R O D U C T S
C O M P O N E N T S
T E C H N I C A L S P E C S
Supply voltage
12 to 24 VAC / VDC
-5% to +10%
Power frequency
50 / 60 Hz
Power consumption
< 3 W
Mounting height
Standard
5 ft. 9 in. to 8 ft. 2 in.
High
8 ft. 2 in. to 13 ft.
SMR data input
10 to 30 V DC
Delay of the output
activation after stimulation
transistor
< 1ms
3-ccolor LED ·
RED
presence detection
GREEN
motion detection
ORANGE
monitoring process
Temperature range
-30°F to +131°F
Degree of protection
NEMA 3S / (IP54)
Product conformity
R&TTE 1999/5/EC &
EMC 89/336/EEC
BZT Germany, TÜV
Dimensions
10.4 in. x 2.2 in. x 1.9 in.
Weight
.55 lbs / 250 g
Housing material
ABS & LURAN S
Color of Housing
Anthracite gray (standard),
aluminum or white finish
Cable length
10 ft. of 9-conductor cable
*For additional technical specs
please see Wizard users guide.
W W W . B E A S E N S O R S . C O M
Remote Control
for easy and
accurate setup
of the Wizard
Spotfinder
for precise positioning
of the infrared curtains
in front of the door
WCA
for recessed and
concealed application
A C C E S S O R I E S
5
6
7
8
9
10
5
6
7
8
9
10
54.81
261.84
33.02
Side View
234.10
Bottom View
Front View
3D Perspective
2.2 in.
54.81 mm.
9.2 in.
234.10 mm.
1.3 in.
33.02 mm.
10.31 in.
261.84 mm.
