Bunn ULTRA-2 - Manual (Page 5)

5

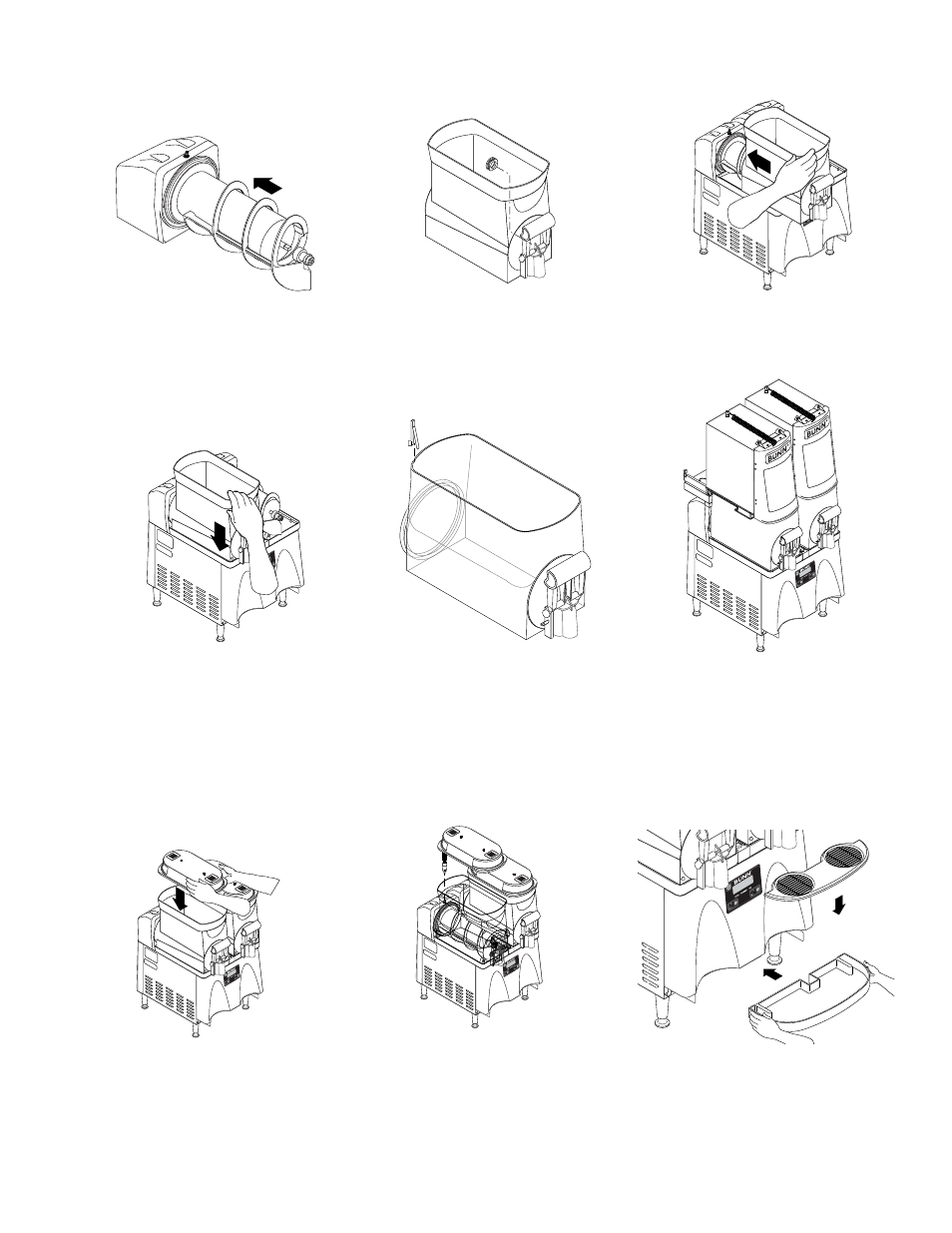

11. Thoroughly rinse the hoppers
and install them over the augers
and cooling drums.
15. Set the lids on the hoppers. Lift
slightly and slide back or front
for filling.
16. Plug in the hopper lid lamp
cords.
17. Assemble the drip tray.
INITIAL SETUP (CONT.)
12. Slide them into place and push
them down until the hopper
lock plungers snap into place.
For models without PAF, pro-
ceed to step 15.
10. Install auger nose bushing into
inside front of hopper.
14. Install PAF unit onto platform
and plug power cord into rear of
platform. Plug platform power
cord into proper outlet. (Refer to
PAF manual for water con-
nections)(Proceed to step 17)
9. Align the auger shaft with the
flat fin of the auger. Push the
augers as far as they will go and
rotate them so the flat fin is fac-
ing up.
13. For models with PAF, install
level probes into slots at top
rear of PAF hoppers.
32080 021202
