12

Form 6104 BCF10-R06

Wire the burner

— R7184

Legend

FD

Fused Disconnect, by others

TR

Ignition transformer

LM

Limit controls, by others

M1

Burner motor

OP

Operating controls, by others

S1

Oil valve

PR

Oil primary control, R7184 typ.

T-T

24-volt thermostat/limit terminals

CC

Flame sensor, cad cell typical

F-F

Cad cell fl ame sensor terminals

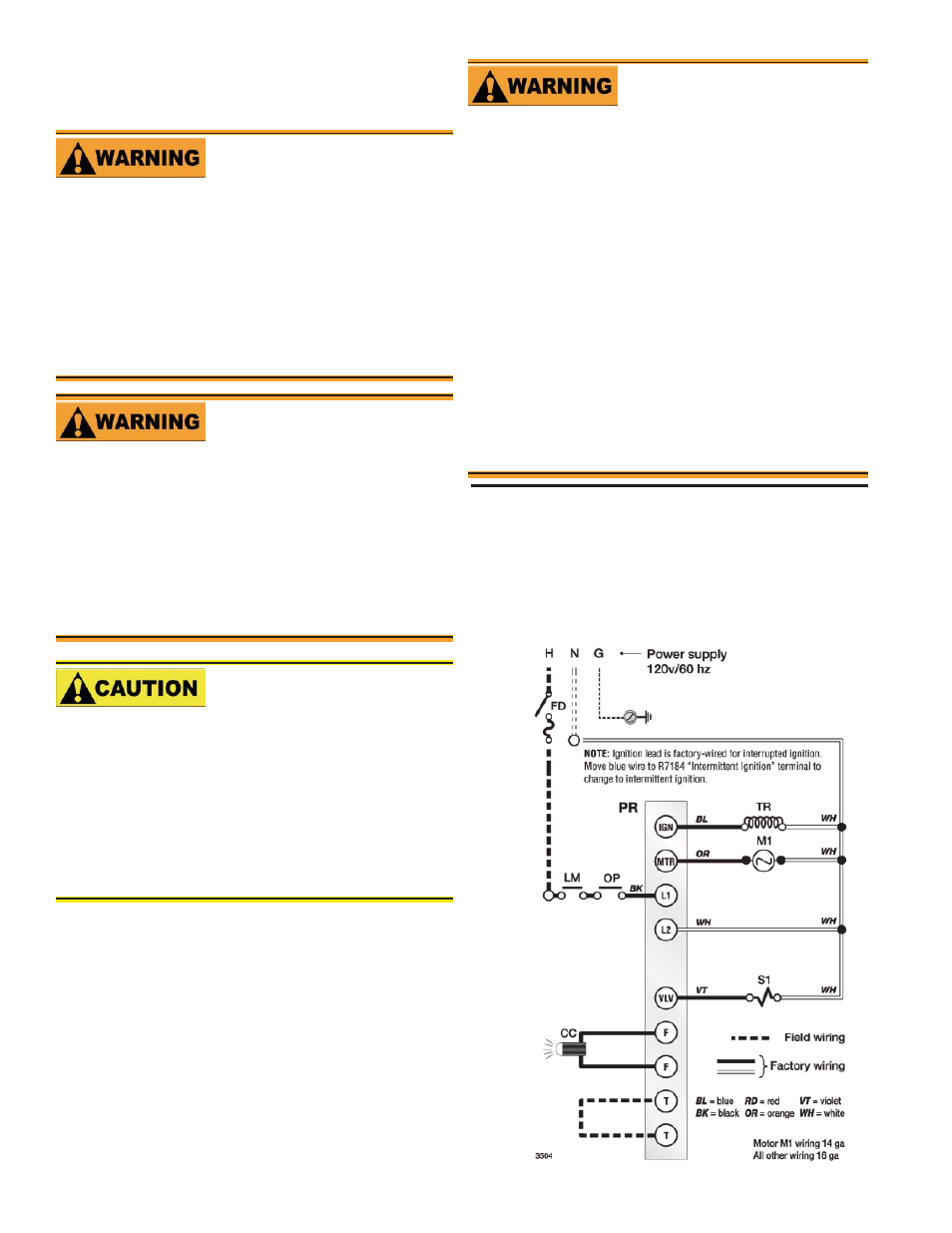

Figure 10 - Typical Wiring

Keep Service Access Cov-

ers Securely Installed

These covers must be securely in place to
prevent electrical shock, damage from exter-
nal elements, and protect against injury from
moving parts.

All covers or service access plates must be in place at
all times except during maintenance and service.
This applies to all controls, panels, enclosures, switch-
es, and guards or any component with a cover as part
of its design.

y

y

This burner must be installed and prepared for start-up
by a qualifi ed service technician who is trained and ex-
perienced in commercial oil burner system installation
and operation.
Do not attempt to start the burner unless you are fully
qualifi ed.
Do not continue with this procedure until all items in
the “Prepare the burner for start-up” section have been
verifi ed.
Carefully follow the wiring diagrams, control instruc-
tion sheets, fl ame safeguard sequence of operation, test
procedures and all appliance manufacturer’s directions
that pertain to this installation.
If any of these items are not clear or are unavailable,
call Beckett at 1-800-645-2876 for assistance.

y

y

y

y

y

Incorrect installation and mishandling of start-up

could lead to equipment malfunction and result
in asphyxiation, explosion or fi re.

Professional Installation

and Service Required

Electrical Shock Hazard

Disconnect electrical power before installing or servic-
ing the burner.
Provide ground wiring to the burner, metal control en-
closures and accessories. (This may also be required to
aid proper control system operation)
Perform all wiring in compliance with the National
Electric Code ANSI/NFPA 70 (Canada CSA C22.1).

y

y

y

Electrical shock can cause severe personal in-

jury or death.

Install the burner and all wiring in accordance with the National
Electrical Code and all applicable local codes or requirements.

Wire the burner in compliance with all instructions provided by
the appliance manufacturer. Verify operation of all controls in
accordance with the appliance manufacturer’s guidelines.

See Figure 10 for a typical wiring diagram, with R7184 oil

primary, for reference purposes only.

Safety controls are designed and installed to provide
protection.
Do not tamper with, or bypass any safety control.
If a safety control is not functioning properly, shut off
all main electrical power and fuel supply to the burner
and call a qualifi ed service agency immediately.

y

y

y

Tampering with, or bypassing safety controls

could lead to equipment malfunction and result
in asphyxiation, explosion or fi re.

Do Not Bypass Safety
Controls
