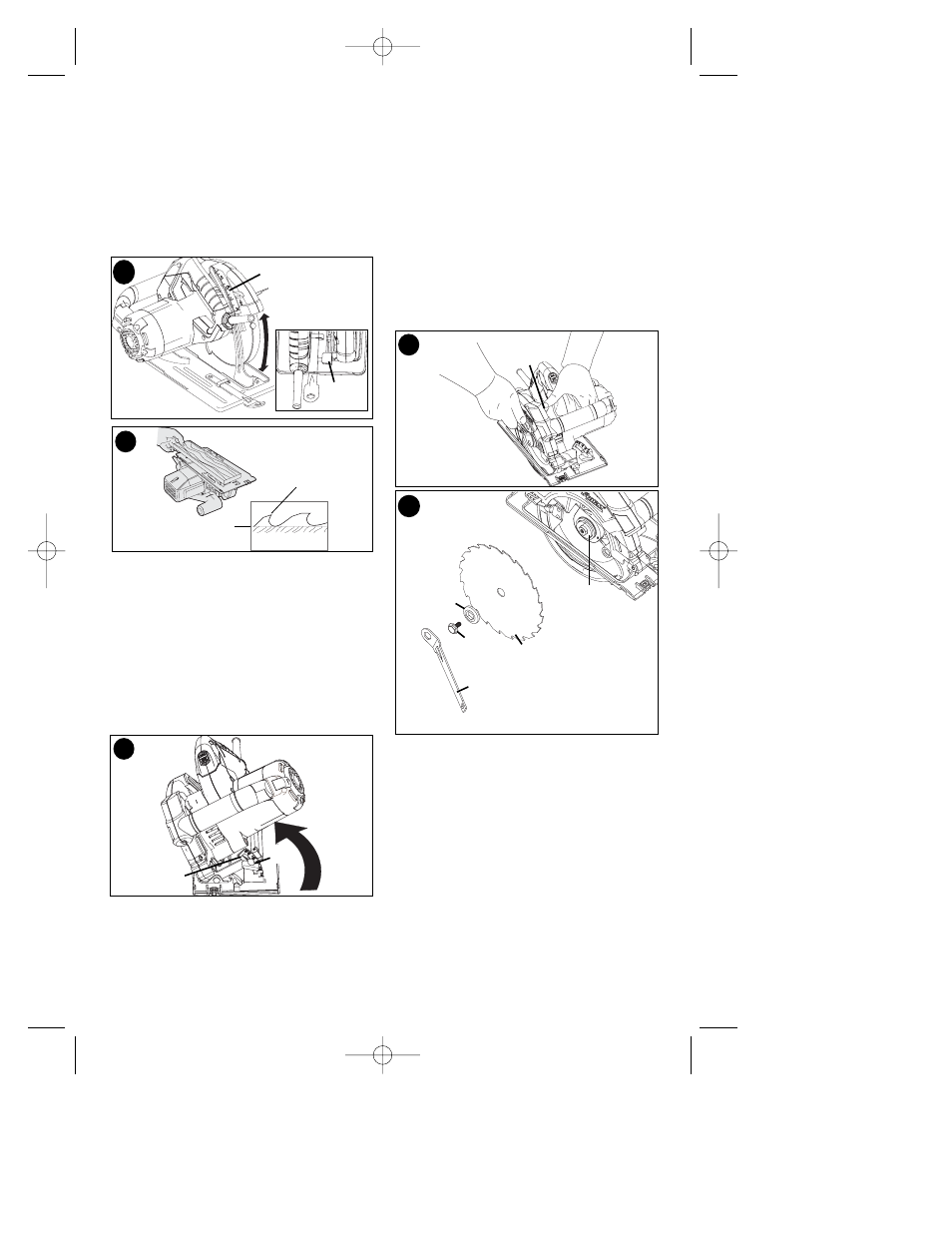

• Move the saw shoe (6) into the desired
position. The corresponding depth of
cut can be read from the scale (13).
• Tighten the lever to lock the saw shoe
in place.
• Set depth adjustment of saw such that
one tooth of the blade projects below
the workpiece as shown in figure 8.
ADJUSTING THE BEVEL ANGLE
(FIG. 9)
This tool can be set to bevel angles
between 0° and 45°.
• Loosen the locking knob (14) to unlock
the saw shoe.
• Move the saw shoe (6) into the desired
position. The corresponding bevel
angle can be read from the scale (15).
• Tighten the locking knob to lock the
saw shoe in place.
ATTACHING AND REMOVING THE
BLADE
REMOVING THE BLADE (FS1500CSL)
(FIG. 10 & 11)
• Keep the spindle lock button (5)
depressed and rotate the blade until
the spindle lock engages.
• Loosen and remove the blade retaining
screw (16) by turning it counter-
clockwise using the wrench (10)
supplied.
• Remove the outer washer (17).
• Remove the saw blade (7).
ATTACHING THE BLADE (FS1500CSL)
• Place the saw blade (7) onto the inner
flange (18), making sure that the arrow
on the blade points in the same
direction as the arrow on the tool.
• Fit the outer washer (17) on the
spindle, with the raised part pointing
away from the saw blade.
• Insert the blade retaining screw (16)
into the hole.
• Keep the spindle lock button (5)
depressed.
• Securely tighten the blade retaining
screw by turning it clockwise using the
wrench (10) supplied.
