CAUTION: Use of controls or
adjustments or performance of
procedures other than those specified in
this manual may result in hazardous
laser radiation exposure.
The following laser warnings are located
on your saw.
The label on your tool may include the
following symbols.
V..............volts
mW..........milliwatts
nm ..........wavelength in nonometers
IIIa ..........Class IIIA Laser
A..............amperes
Hz............hertz
W ............watts
min ..........minutes
............alternating current
........direct current
no ............no load speed
............Class II Construction
…/min......revolutions or
................reciprocation per minute
............earthing terminal
............safety alert symbol
MOTOR
Be sure your power supply agrees with
nameplate marking. 120 Volts AC means
your tool will operate on standard 60 Hz
household power. Do not operate AC
tools on DC. A rating of 120 volts AC/DC
means that your tool will operate on
standard 60 Hz AC or DC power. This
information is printed on the nameplate.
Lower voltage will cause loss of power
and can result in over-heating. All Black
& Decker tools are factory-tested; if this
tool does not operate, check the power
supply. This tool is AC only.

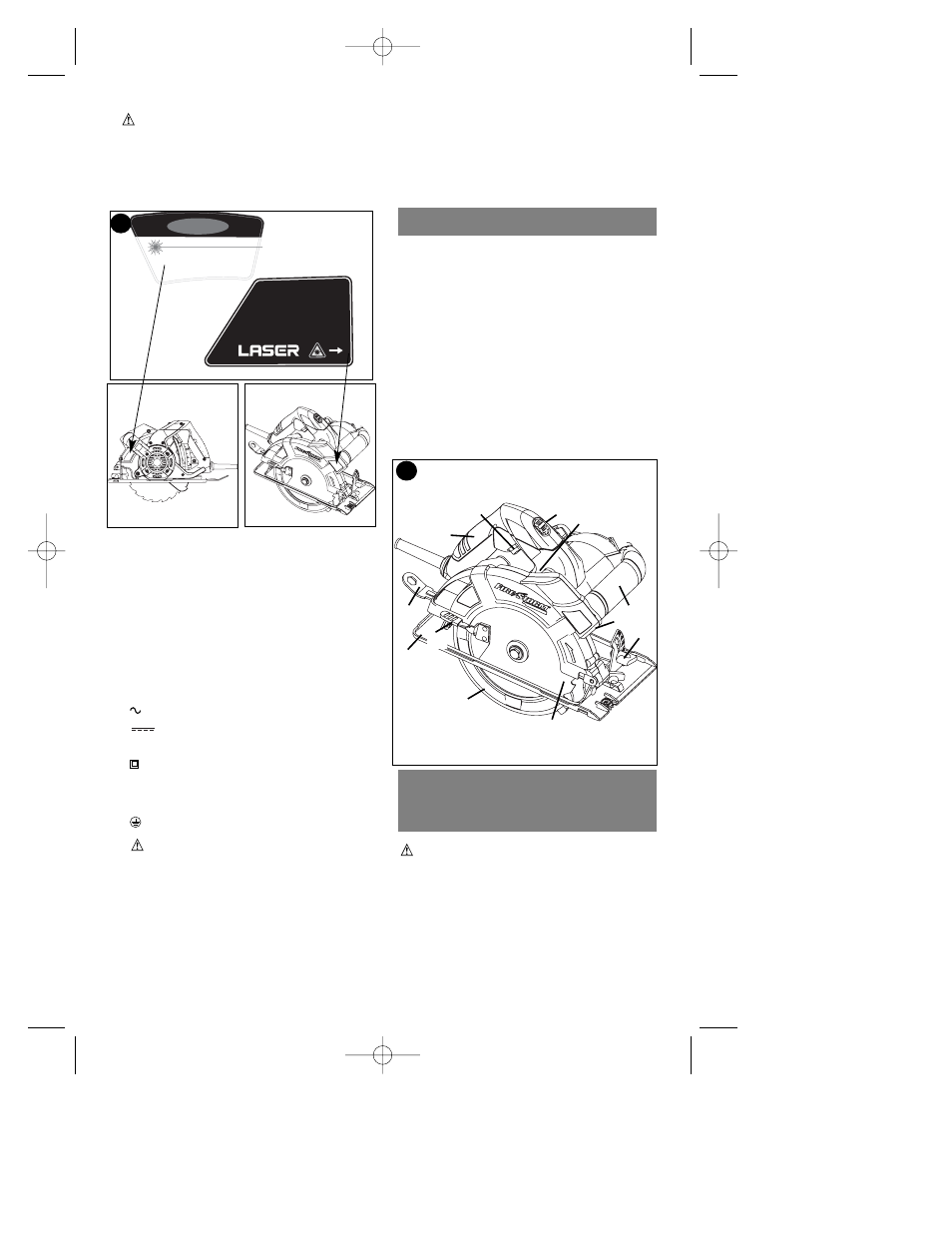

OVERVIEW (FIG.6)
1. On/off switch
2. Laser on/off switch
3. Main handle
4. Secondary handle
5. Spindle lock button (FS1500CSL only)
6. Shoe
7. Saw blade
8. Saw blade guard
8a. Blade guard retracting lever
9. Laser
10. Saw blade wrench
11. Bevel adjustment knob
Rip fence not shown (FS1500CSL only)
ASSEMBLY / ADJUSTMENT
SET-UP
WARNING: Always unplug saw from
power supply before any of the
following operations.
ADJUSTING THE DEPTH OF CUT
(FIG. 7 & 8)
The depth of cut should be set according
to the thickness of the workpiece.
• Loosen the lever (12) to unlock the
saw shoe.
6
1 2
3
4
5
6
7
8
9
10
11
Avoid exposure. Laser
radiation is emitted from
these apertures.
Evite la exposición. A través de
estas aperturas se emite
radiación láser.
DANGER
MAXIMUM OUTPUT POWER< 5mW@633nm-
670nm CLASS IIIa LASER PRODUCT. THIS
PRODUCT COMPLIES WITH THE APPLICABLE
REQUIREMENTS OF 21CFR PARTS 1040.10 AND
1040.11.
LASER RADIATION. AVOID DIRECT EYE EXPOSURE.
5
8a
