In this example we will use VCR1 input.
1. Connect a high quality S-Video cable from
your VCR S-VIDEO OUT to the S-Video input
of VCR1 on back of PRePro. If your
VCR does not have an S-Video output use the
composite video out with a high quality RCA
video cable.
2. Connect high quality RCA audio cables from
the audio out L and R of the VCR to the ana-
log RCA input L and R of the VCR1 INPUT on
back of PRePro.
Analog Source Set-up & Connection

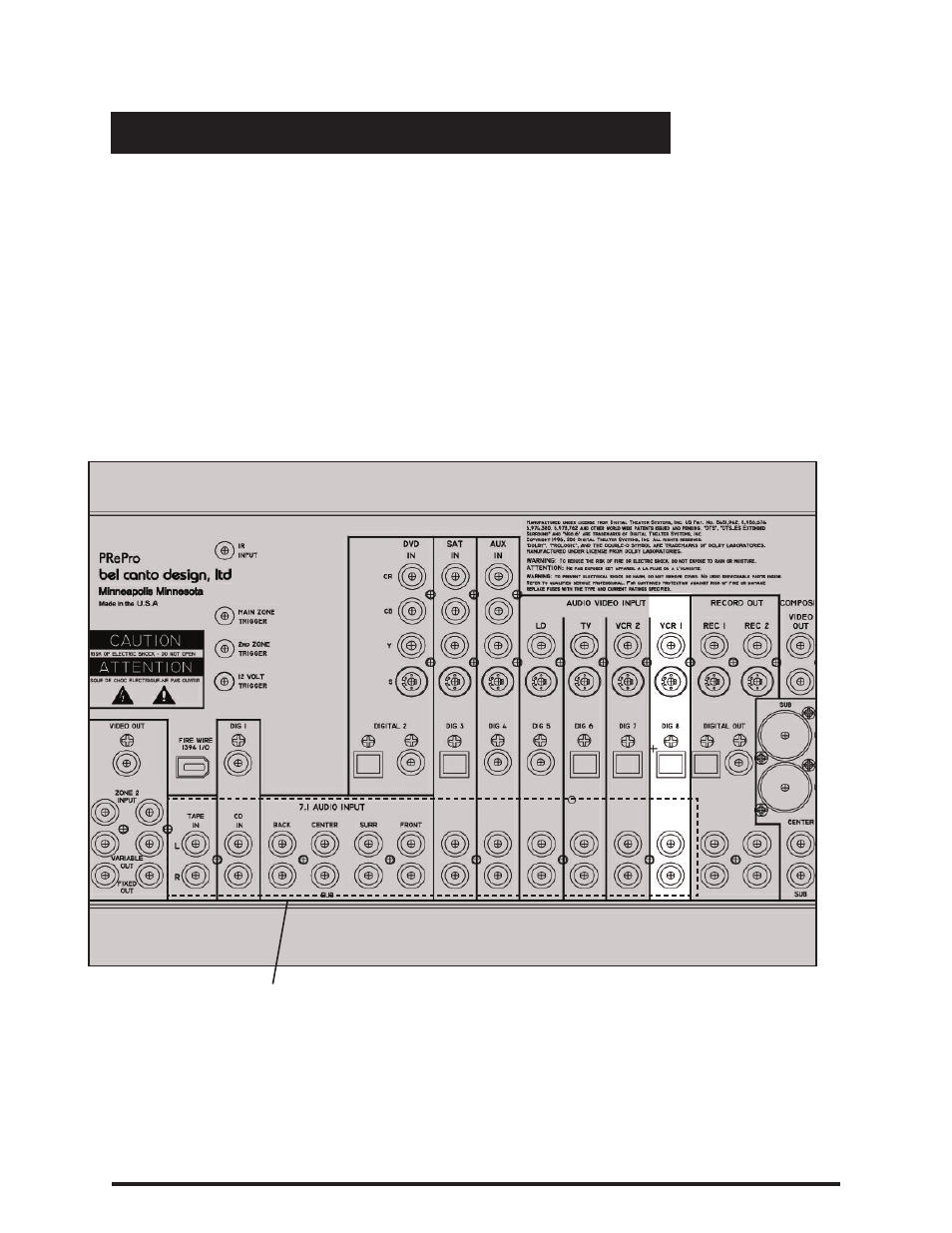

ANALOG AUDIO INPUTS
