17

MOTORMASTER
SENSOR
LOCATION

HAIRPIN END

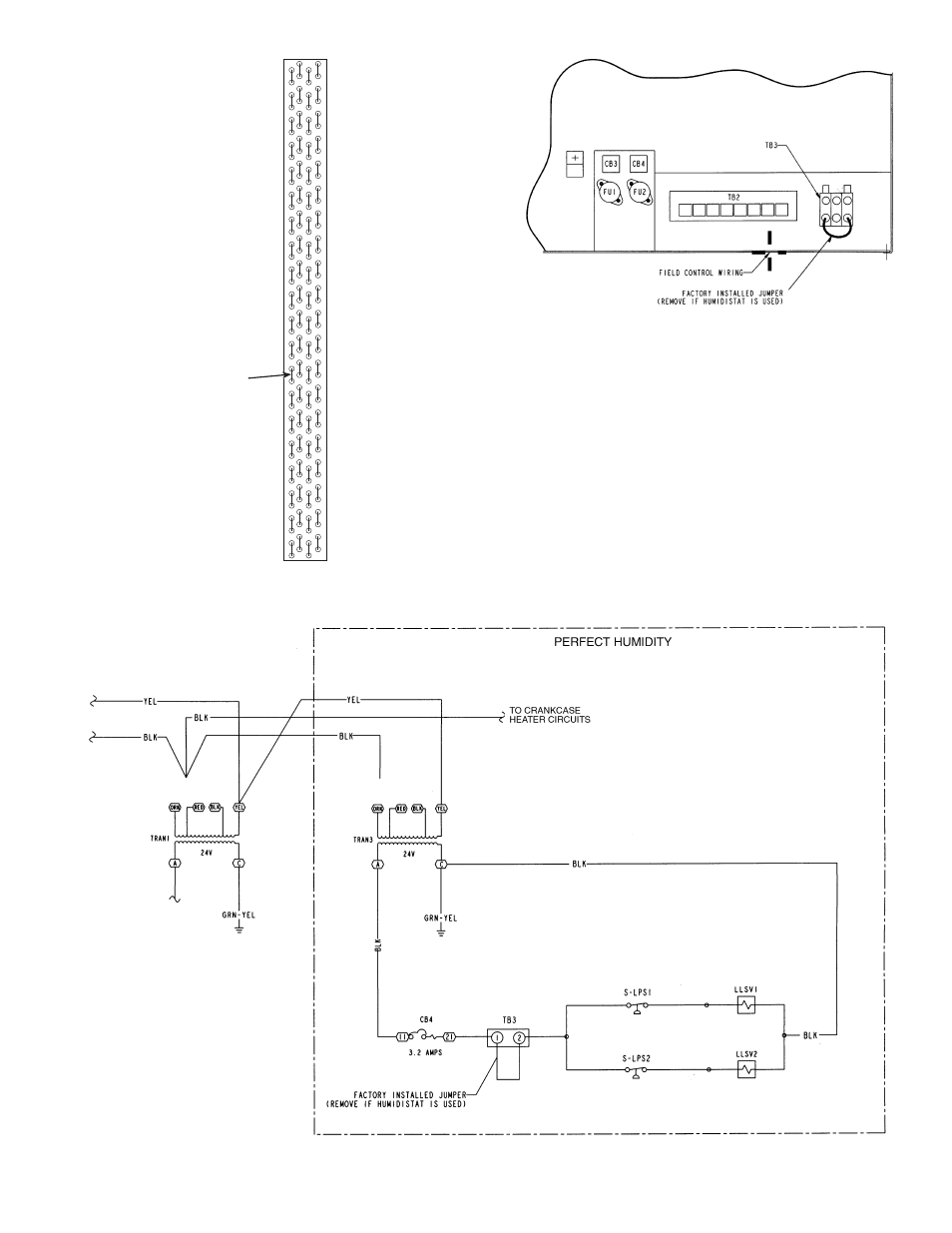

Fig. 26 — Motormaster® I and Motormaster III

Sensor Locations

Fig. 28 — Typical Perfect Humidity Dehumidification

Package Control Box

Fig. 27 — Typical Perfect Humidify™ Dehumidification Package

Humidistat Wiring Schematic (460V Unit Shown)

LEGEND

CB

Circuit Breaker

LLSV

Liquid Line Solenoid Valve

LPS

Low-Pressure Switch

TB

Terminal Block

TRAN — Transformer

NOTES:

1. All sensors are located on

the eighth hairpin up from
the bottom.

2. Field-installed tubing insu-

lation is required to be
installed over the TXV bulb
and capillary tube for
proper operation at low
ambients. Tubing insula-
tion is only required on the
portion of suction line
located between indoor
and outdoor section.
