8
furnace casing. If air filter has been
installed in another location, contact
your dealer for instructions. To inspect,
clean, and/or replace the air filter(s),
follow these steps:

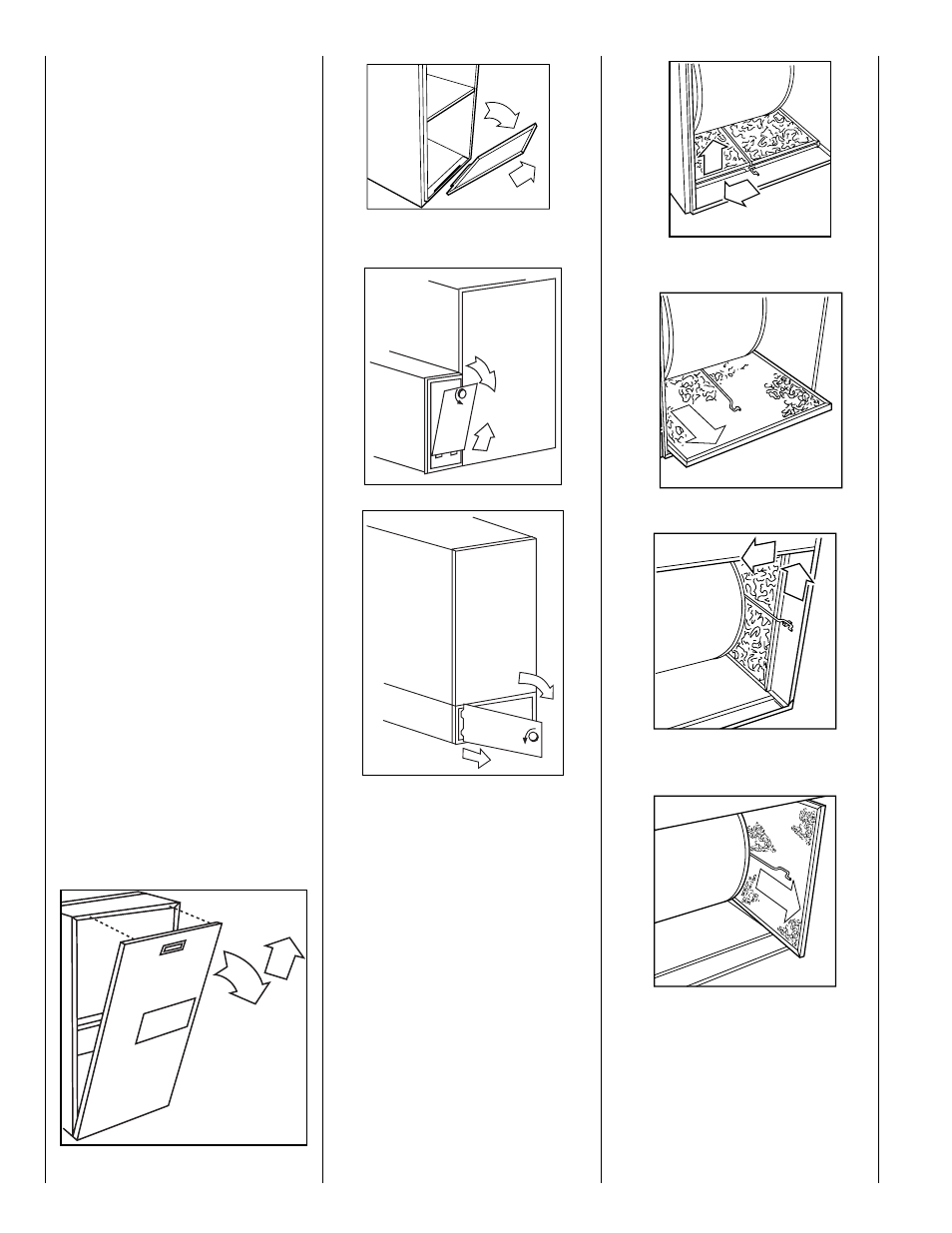

1. Turn off electrical supply to fur-
nace. (See Fig. 22.)
2. Remove door/access panel
• AIR FILTER(S) LOCATED IN
BLOWER COMPARTMENT
a. Remove main furnace door.
(See Fig. 25.)
b. Remove blower access panel.
(See Fig. 26.)
NOTE: It will be necessary to
remove 2 screws
• AIR FILTER LOCATED IN FIL-
TER CABINET
a. Remove filter cabinet door (See
Fig. 27 and 28.)
NOTE: It will be necessary to
remove 1 thumbscrew
3. Remove air filter from furnace.
• AIR FILTER LOCATED IN
BLOWER COMPARTMENT
BOTTOM:
a. Slide filter retainer sideways
until it is free of latch. (See
Fig. 29.)
b. Slide air filter out of furnace.
(See Fig. 30.)
• AIR FILTER(S) LOCATED IN
BLOWER COMPARTMENT
SIDE:
a. Remove filter retainer from
latch. (See Fig. 31.)
b. Gently remove air filter and
carefully turn the dirty side up
(if dirty) to avoid spilling dirt
from the filter. (See Fig. 32.)
• AIR FILTER LOCATED IN FIL-
TER CABINET:
a. Slide air filter out of furnace. Keep
dirty side up (if dirty) to avoid
spilling dirt. (See Fig. 33 and 34.)
25
A05087
26
27
28
4. Inspect the filter. If torn, replace it.
NOTE: If washable filter that was
shipped with the furnace has been
replaced by:
a. Factory specified disposable
media filter – Do not clean. If
dirty, replace only with media fil-
ter having the same part number
and size. Install with airflow
direction arrow pointing towards
blower.
b. Electronic air cleaner (EAC) –
Refer to EAC owner’s Manual
for maintenance information.
29
30
31
32
