Ú Ins tallation ins tructions Important notes
If the appliance is being installed under a hob, refer to the
assembly instructions for the hob.
For installation under an induction hob, the work surface
thickness must be min. 50 mm.
Do not use the door handle to carry or install the appliance.
Before installation, check the appliance for transportation
damage.
The appliance must be disconnected from the power supply
during all installation work.
HANDLE WITH CARE
Due to the unique design of this oven, and the SlideAway door
construction it is vital that;
` The oven is stored and supported on a totally flat surface,
extending beyond the product width.
` The hand hold positions, provided in the top of the chassis,
are used to transport the oven during unpacking and positioning
into the housing in the kitchen.
` To assist with installation, please ensure that you secure the
base panel of the oven cavity by inserting a screw into the hole
allocated.
Preparing the kitchen units
Safe use of this appliance can only be guaranteed if it has been
installed professionally in accordance with these installation
instructions. The installer is liable for damages incurred as a
result of incorrect installation.
Units into which ovens are to be fitted must be heat-resistant up
to 90 °C and adjacent cabinets up to 70 °C.
Carry out all cut-out work on the furniture unit and worktop
before fitting the appliances. Remove shavings. Otherwise, the
correct operation of electrical components may be adversely
affected.
Caution during installation. Parts that are accessible during
installation may have sharp edges. Wear protective gloves to
prevent injury from cuts.
Secure freestanding units to the wall using standard,
commercially available brackets A.
Permanently fix furniture units to the worktop.

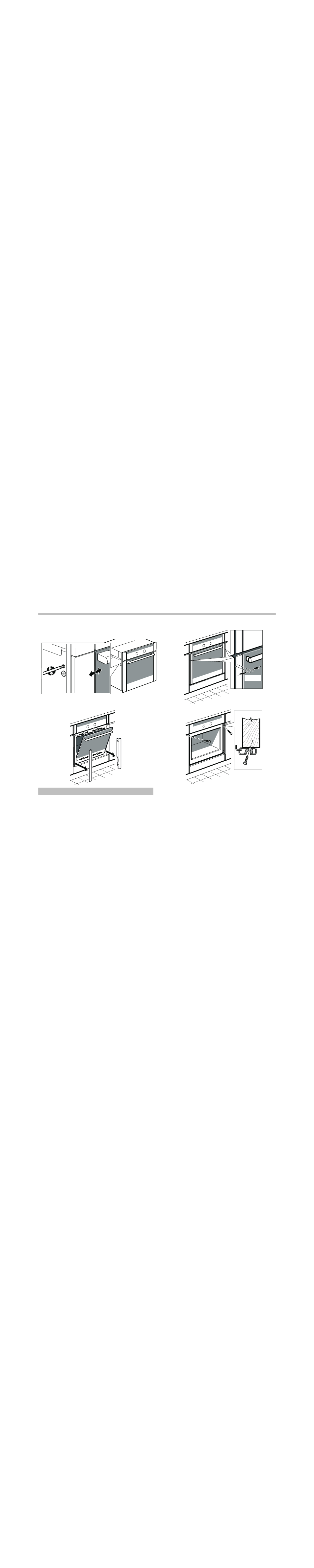

Appliance under worktop - Fig. 1
To ventilate the appliance, there must be a gap of 20 mm
between the intermediate floor and the wall.
The gap between the worktop and the appliance must not be
closed using additional battens.
Corner installation - Fig. 2
For corner installation, check minimum clearances. Ensure that
there is sufficient clearance B for the front panel and its handles.
Check that the appliance door can be opened properly.
Appliance in a tall unit - Fig. 3
To ventilate the appliance, there must be a gap of 20 mm
between all intermediate floors and the wall.
Only fit the appliance up to a height which allows accessories to
be easily removed.
Connecting the appliance to the power supply -
Fig. 4
Only a licensed expert may connect the appliance. National
regulations apply as well as those of your electricity supplier.
Note the information on the nameplate for voltage and total
power.
The appliance corresponds to safety class I and may only be
operated in conjunction with a safety earth terminal.
Power cord: Type H05 V V-F or a higher rating. The yellow­green
wire for the safety earth terminal must be 10 mm longer on the
appliance side than the other wires.
In the installation, there must be an all-pin isolating switch with at
least 3 mm contact gap, or the appliance must be connected
using a plug with an earthing contact. This must remain
accessible after installation.
Contact protection must be ensured by the method of
installation.
Identify the phase and neutral (zero) conductors in the power
socket. The appliance could be damaged if incorrectly
connected.
PLQ
D
E F
