Briggs & Stratton 233400 to 233499 - Manual (Page 6)

233400 to 233499

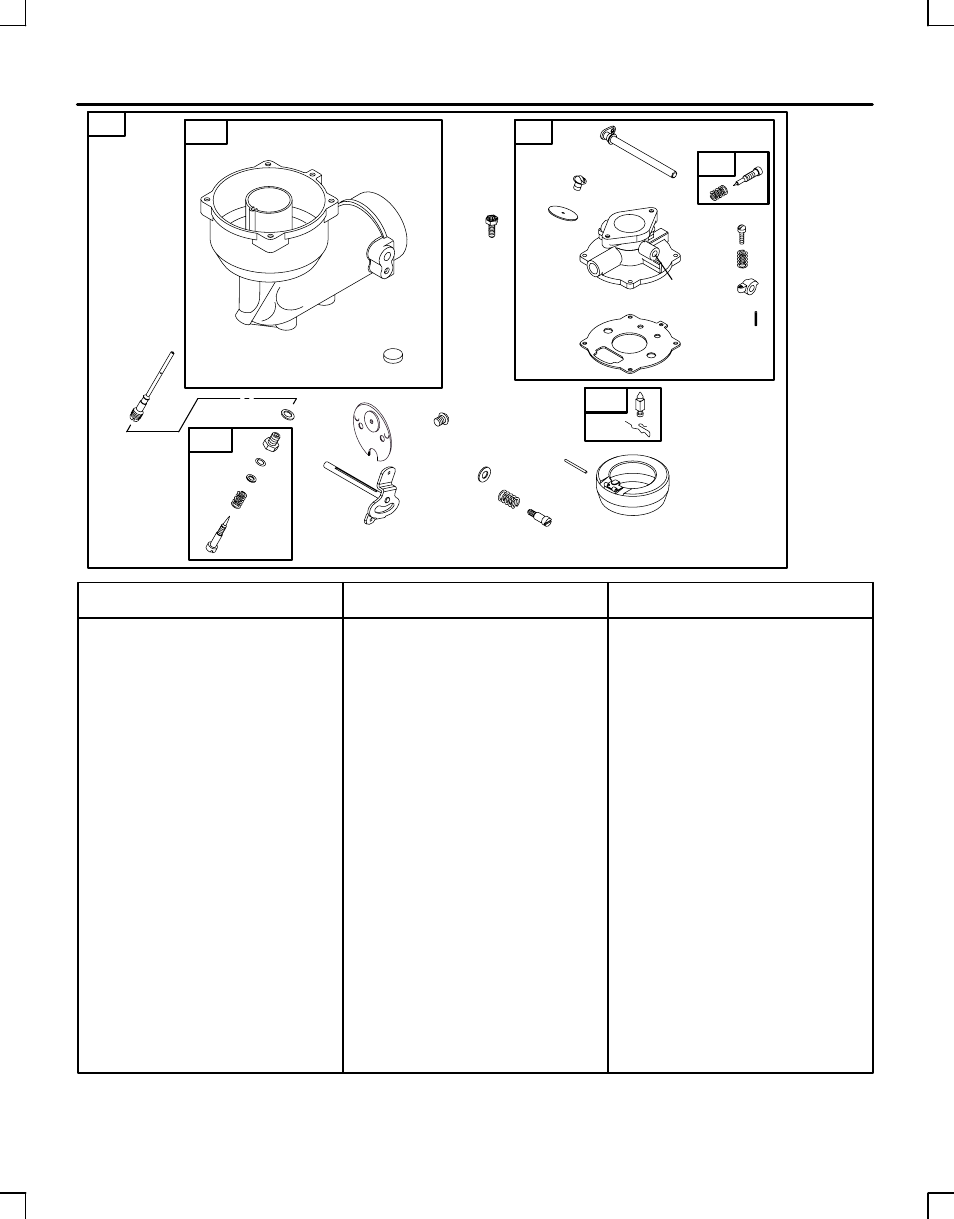

7584–6 Assemblies include all parts shown in frames. 68
6
109
113
102
103
104
101
114
99
95
96
93
95
98
112
111
110
119
100
97
108
90
91
94
105
107
118
158
90 293950 Carburetor
––––––– Note –––––
292106 Carburetor
Used on Type No(s).
0638, 0643, 0647,
0648, 0650, 0652,
1131, 1135, 1137,
1146, 1149, 1150,
2027, 2031, 2527,
2531.
91 291655 Body Assembly–Upper
93 23108 Bushing–Throttle Shaft
94 D 292681 Valve–Idle Adjustment
95 93499 Screw–Choke/Throttle
96 223370 Valve–Throttle
97 291300 Shaft–Throttle
98 91920 Screw–Slotted
99 26157 Spring–Friction
100 212904 Stop–Throttle
101 93043 Pin–Shaft
102 D 27034 Gasket–Carb. Body
103 99333 Float–Carburetor
104 D 230896 Pin–Float Hinge
105 D 394681 Kit–Needle Seat
––––––– Note –––––
394682 Kit–Needle
Seat
(Includes Brass Seat)
107 89915 Body Assy.–Lower
108 62872 Valve–Choke
109 89531 Shaft–Choke
110 224026 Washer–Flat
111 26155 Spring–Friction
112 23123 Screw–Shoulder
113 D 395208 Nozzle–Carburetor
114 D 68667 Gasket–Nozzle
118 D 99525 Valve–High Speed
––––––– Note –––––
391213 Valve–High
Speed
Used on Type No(s).
0638, 0643, 0647,
0648, 0650, 0652,
1131, 1135, 1137,
1146, 1149, 1150,
2027, 2031, 2527,
2531.
119 94152 Screw–Torx R Hex.
158 27590 Filter–Carburetor
Drain
K Included in Gasket Set–See Ref. No. 291728. D Included in Carburetor Kit–Part No. 395670.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
