233400 to 233499

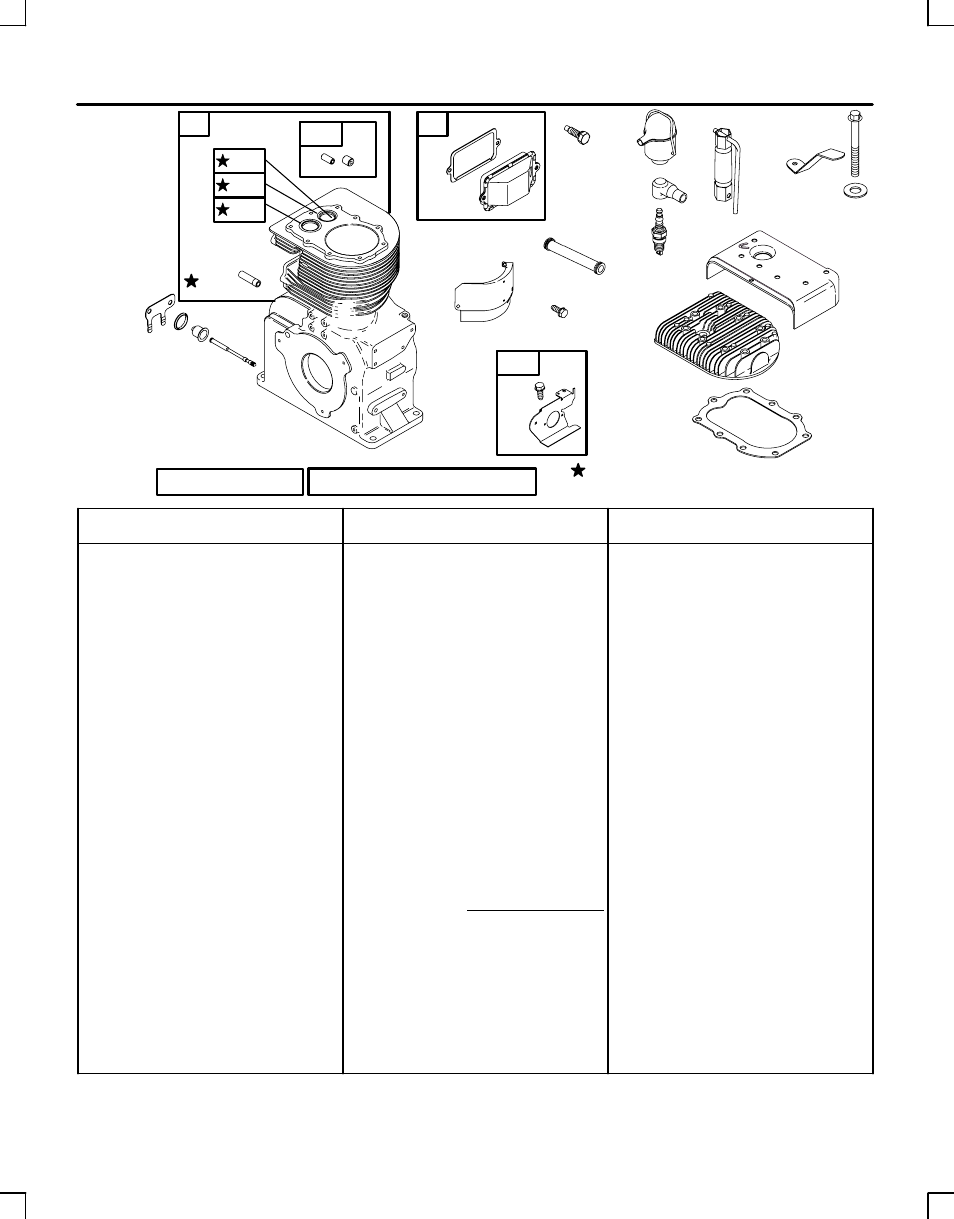

7584–2 Assemblies include all parts shown in frames. 68
2
1019 LABEL KIT
13
9
10
383
635
6
7
5
308
306
362
11
337
645
342
REQUIRES SPECIAL TOOLS TO INSTALL.
SEE REPAIR INSTRUCTION MANUAL.
347
305
1058 OWNER’S MANUAL
724
723
722
305
1 8
552
572
870
871
869
1 395668 Cylinder Assembly
5 210580 Head–Cylinder
––––––– Note –––––
211660 Head–Cylinder
Used on Type No(s).
0638, 0643, 0647,
0648, 0650, 0652,
1131, 1135, 1137,
1146, 1149, 1150,
2027, 2031, 2527.
6 22963 Washer–Flat
7 K 272165 Gasket–Cylinder Head
8 495738 Breather Assembly
9 K 27803 Gasket–Breather
10 94621 Screw–Hex.
11 68818 Tube–Breather
13 92674 Screw–Hex.
––––––– Note –––––
94926 Screw–Hex.
Used on Type No(s).
1130, 1144, 1147,
1154, 1155.
305 94786 Screw–Hex.
306 22951 Shield–Cylinder
308 291866 Cover–Cylinder
337 298809 Plug–Spark
(1 1/2” High)
––––––– Note –––––
492167 Plug–Spark
(1 7/8” High)
802592 Plug–Spark
(Resistor Type)
(1 7/8” High)
342 298125 Plunger–Breaker
347 220197 Switch–Stop
––––––– Note –––––
29372 Switch–Stop
Used on Type No(s).
0533, 0640.
231070 Switch–Stop
Used on Type No(s).
0651, 2020, 2021,
2022, 2024, 2030,
2040, 2041, 2061,
2520, 2521, 2522,
2524, 2530, 2540,
2541, 2561.
293739 Switch–Stop
(For 2” High, 51mm
Spark Plug)
––––––– Note –––––
390785 Switch–Stop
Used on Type No(s).
0652, 1131.
362 392273 Shield–Spark Plug
(With Stop Switch)
383 89838 Wrench–Spark Plug
552 393666 Bushing–Governor-
Crank
572 291871 Guide–Control Rod
635 66538 Boot–Spark Plug
645 230775 Bushing–Plunger
722 68768 Seal–Plunger
723 93516 Retainer–Seal
724 221873 Retainer–Seal
869 21880 Seat–Valve
(Intake)
870 21612 Seat–Valve
(Exhaust)
871 231218 Bushing–Guide
(Exhaust)
1019 491256 Label Kit
1058 270373 Owner’s Manual
Nonemission Engines
K Included in Gasket Set–See Ref. No. 291728. D Included in Carburetor Kit–Part No. 395670.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
