Briggs & Stratton 233400 to 233499 - Manual (Page 10)

233400 to 233499

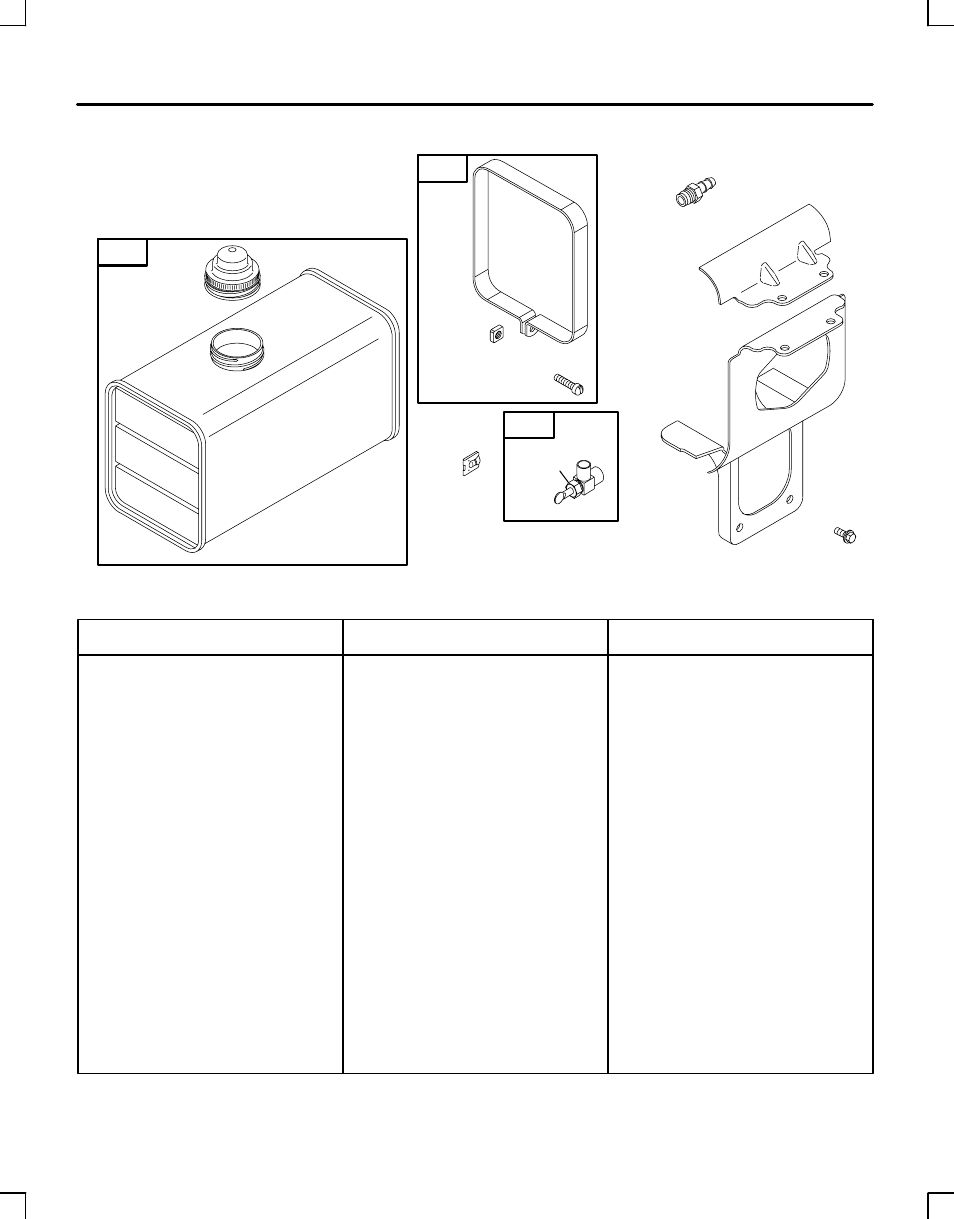

7584–10 Assemblies include all parts shown in frames. 68
10
181
184
185
183
917
198
199
728
196
182
186A
180
180 291488 Tank–Fuel
(6 Quart)
––––––– Note –––––
291513 Tank–Fuel
(Gasoline–Kerosene)
Used on Type No(s).
0638, 0643, 0647,
0648, 0650, 0652,
1131, 1135, 1137,
1146, 1149, 1150,
2027, 2031, 2527,
2531.
292415 Tank–Fuel
(8 Quart)
Used on Type No(s).
0533, 0639, 0640,
1134, 1141.
181 392305 Cap–Fuel Tank
(Metal)
182 22813 Bracket–Fuel Tank
183 291490 Strap–Fuel Tank
184 91257 Screw–Slotted
185 90970 Nut–Square
186A 230318 Connector–Hose
(Used With Flexible
Fuel Pipe)
––––––– Note –––––
231238 Connector–
Hose
(For Metal
Fuel Line)
196 22907 Bracket–Fuel Tank
198 293934 Screw–Shut-Off
199 297563 Valve–Shut Off
728 94627 Screw–Hex.
917 223271 Handle–Shut-Off
Valve
K Included in Gasket Set–See Ref. No. 291728. D Included in Carburetor Kit–Part No. 395670.
REF. PART REF. PART REF. PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION NO. NO. DESCRIPTION
