Briggs & Stratton 233400 to 233499 - Manual (Page 16)

233400 to 233499

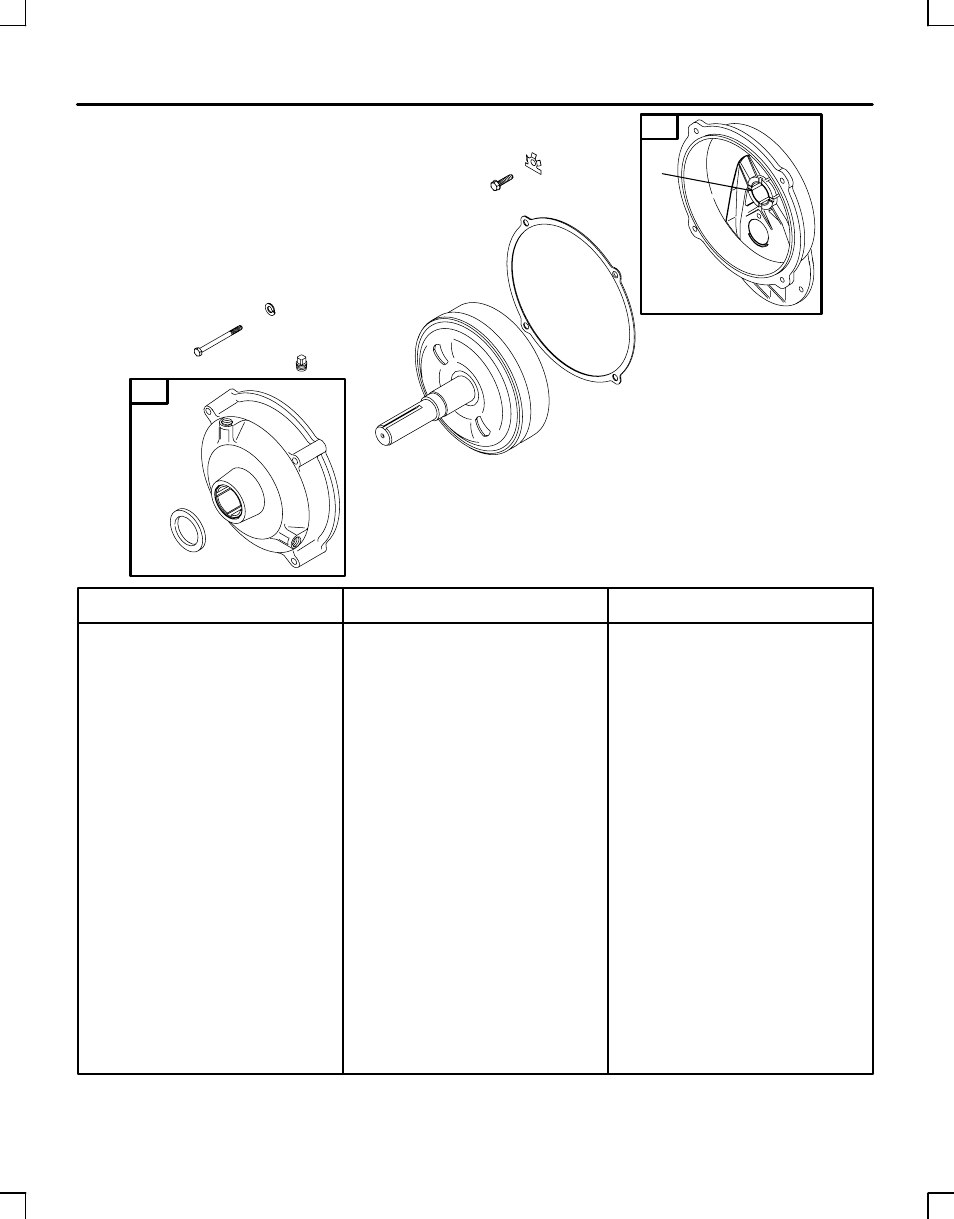

7584–16 Assemblies include all parts shown in frames. 68
16
89
88
83
20A
85
189
728
81
86
3
79
3 K 299819 Seal–Oil
20A K 391086 Seal–Oil
79 291357 Case–Reduction Gear
––––––– Note –––––
291712 Case–Reduc-
tion Gear
Used on Type No(s).
2040, 2540.
81 220790 Lock–Screw Head
83 495985 Shaft Assembly–Drive
––––––– Note –––––
290638 Shaft
Assembly–Drive
Used on Type No(s).
2040, 2540.
85 91386 Screw–Hex.
––––––– Note –––––
94922 Screw–Hex.
Used on Type No(s).
2040, 2540.
86 291354 Cover Assembly–Gear
––––––– Note –––––
290574 Cover
Assembly–Gear
Used on Type No(s).
2040, 2540.
88 27328 Gasket–Cover
––––––– Note –––––
68247 Gasket–Cover
Used on Type No(s).
2040, 2540.
89 91488 Plug–Oil
189 90366 Washer–Lock
728 94627 Screw–Hex.
K Included in Gasket Set–See Ref. No. 291728. D Included in Carburetor Kit–Part No. 395670.
