Nokia 6560 - Manual (Page 20)

12 Copyright © 2003 Nokia

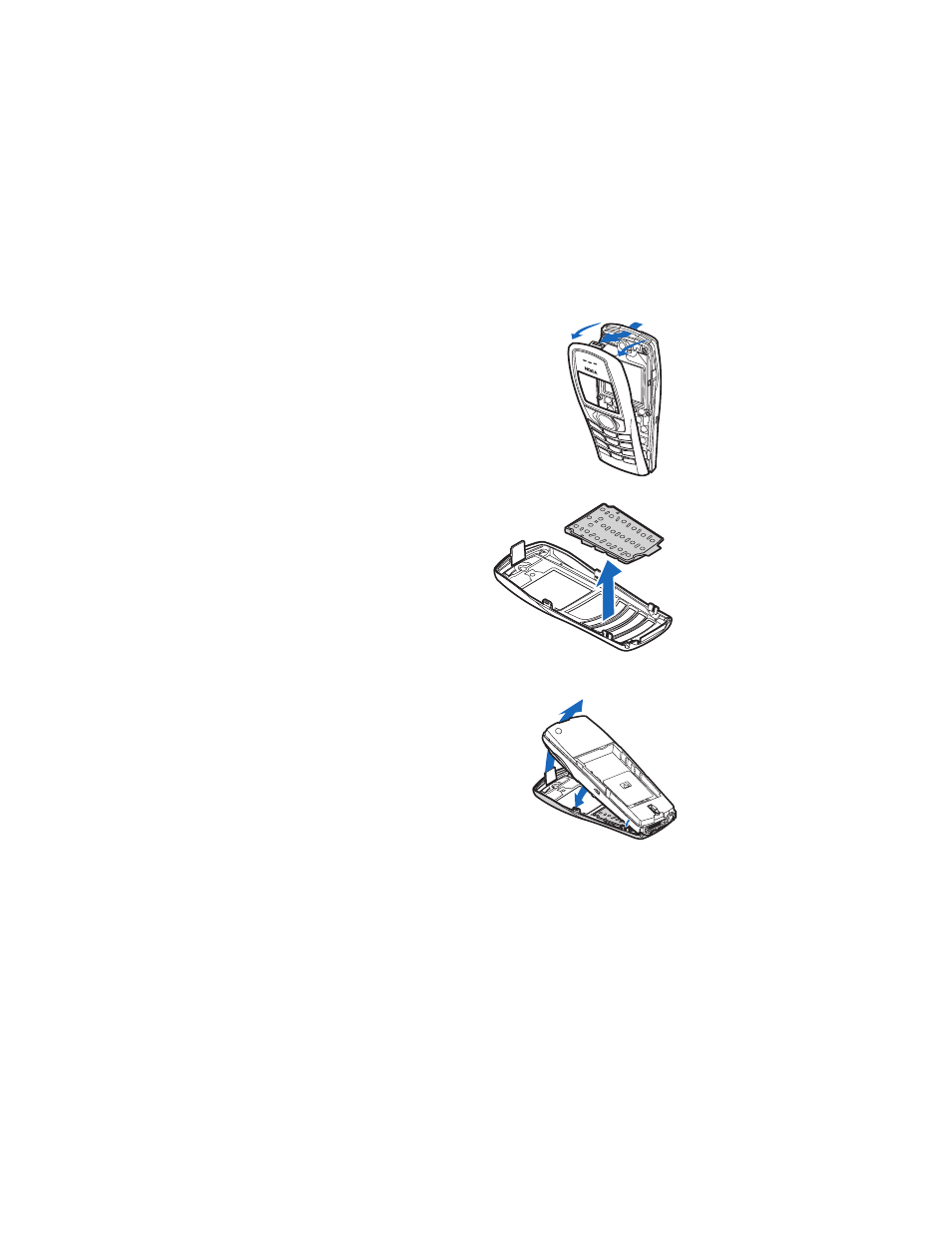

• REMOVE THE FRONT COVER
1 Remove the back cover.
2 Once the back cover has been removed, firmly hold
the phone with one hand and grasp the top corners
of the front cover with the other hand.
3 Lift the front cover off the phone starting
with the top.
• THE KEYPAD
Remove the keypad from the old front
cover and place it into the new front
cover as shown.
• REPLACE THE FRONT COVER
1 Hold the phone face down.
2 Insert the tabs at the bottom of the front
cover into the matching holes at the bottom
of the phone.
3 Gently push the tabs at the middle of the
front cover into the matching holes in the
middle of the phone.
4 Slowly push the tab at the top of the
front cover through the slot at the top
of the phone.
