The Grand Tour
Chapter 2
The Grand Tour
This chapter identifies the various components of your computer. Become
familiar with each component before you operate the computer.
Front with the display closed
The following figure shows the computer front with its display panel in the
closed position.
* The availability of this feature is dependent on the model you purchased.

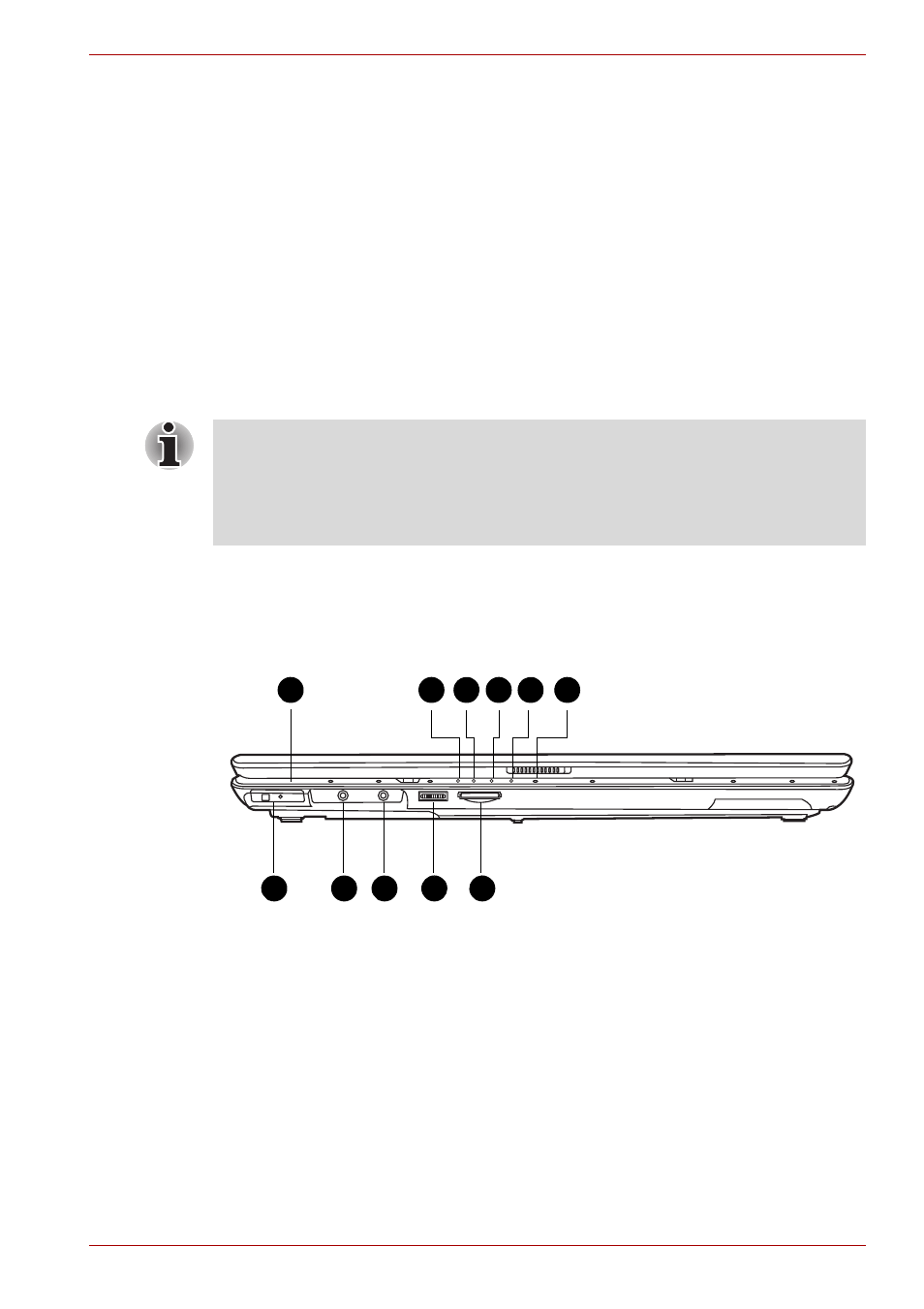

Front of the computer with display closed
Certain types of notebook chassis are designed to accommodate all
possible configurations for an entire product series. Your selected model
may not have all the features and specifications corresponding to all of the
icons or switches shown on the notebook chassis, unless you have
selected all those features.
1. Front Edge Logo*
2. DC IN LED
3. Power LED
4. Battery LED
5. Hard Disk Drive LED
6. Multiple Digital Media Card Slot
Access LED*
7. Wireless Communication Switch
and LED*
8. Microphone Jack
9. Headphone Jack
10. Volume Control
11. Multiple Digital Media Card Slot*
9
2
10
3 4
11 8 7
5 6 1
