User’s Manual
2-7
A300/A300D
Underside
The following figure shows the underside of the computer. Make sure the
display is closed before turning over your computer.

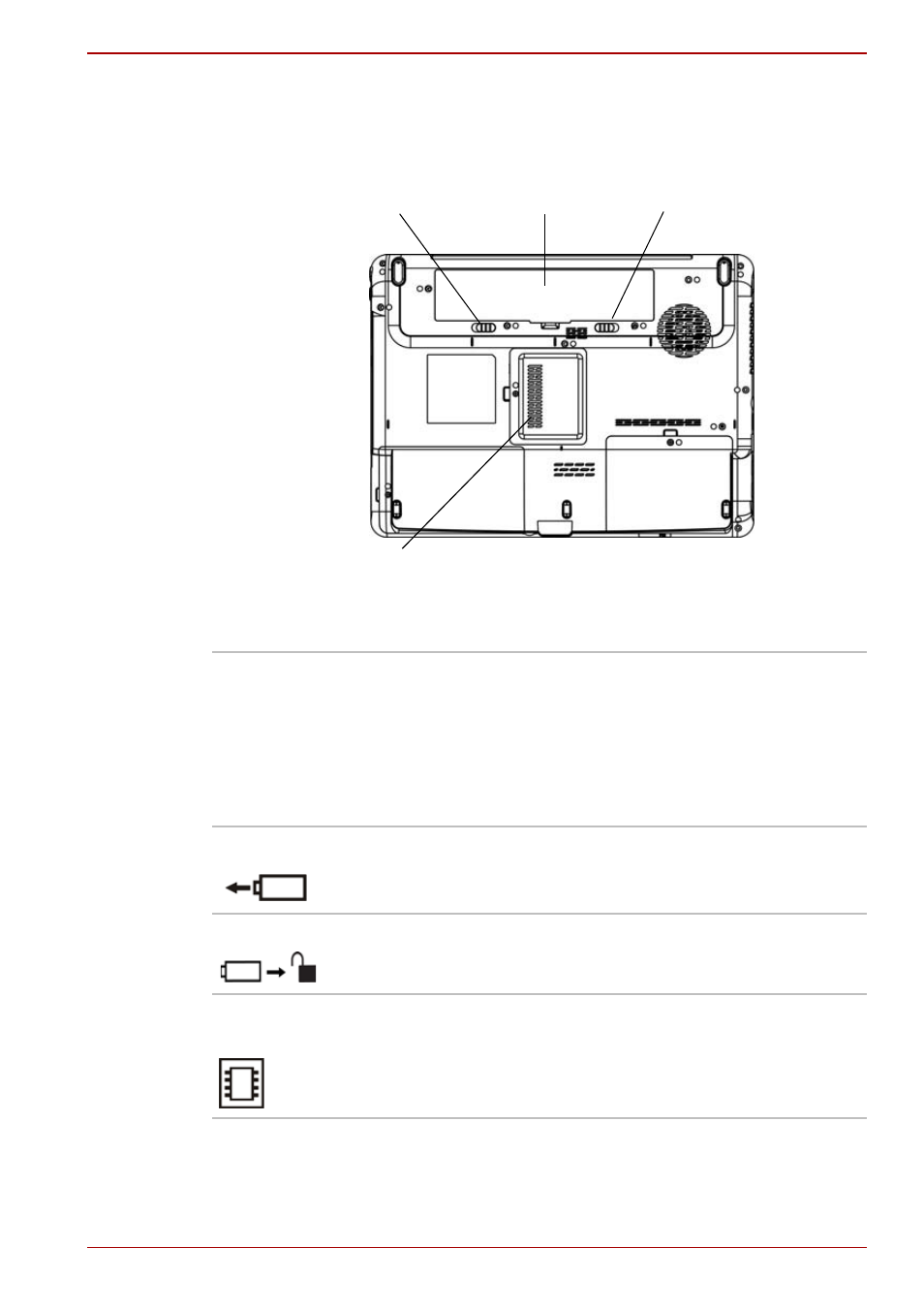

Figure 2-5 The underside of the computer
Battery pack
The battery pack powers the computer when the
AC adaptor is not connected. The Batteries
section in Chapter 6,
, describes how to access the battery
pack. Additional battery packs can be purchased
from your TOSHIBA dealer to extend the
computer’s battery operating time.
Battery release latch
Slide this latch to release the battery pack. This
latch moves only when the computer is upside
down.
Battery pack lock
Slide the battery pack lock to unlocked position to
free the battery latch.
Memory module
cover
This cover protects two memory module sockets.
One or two modules are preinstalled.
Memory module cover
Battery pack
Battery pack lock
Battery release Latch
