Connecting LAN cable
If you are using Fast Ethernet LAN (100 megabits per second, 100BASE-TX),
be sure to connect with a category 5 cable, CAT5, or higher.
If you are using Ethernet LAN (10 megabits per second, 10BASE-T), connect
with a category 3 cable, CAT3, or higher.
If you are using Gigabit Ethernet (1000 megabits per second, 1000BASE-T),
connect with a category 5e cable, CAT5e, or higher.
To connect the LAN cable, follow the steps below.
1. Turn off the power to the computer and to all external devices
connected to the computer.
2. Plug one end of the cable into the LAN jack. Press gently until you hear
the latch click into place.

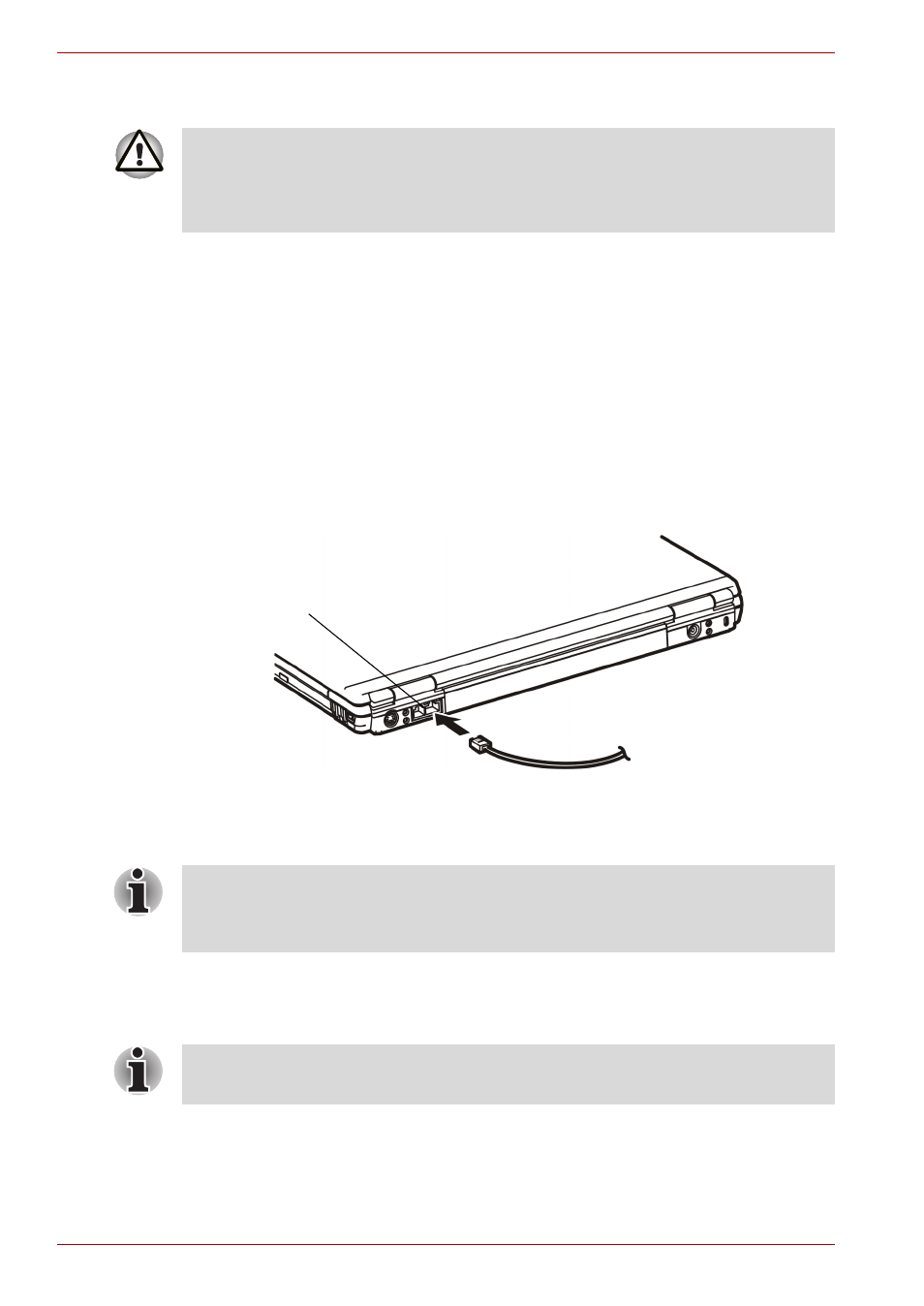

Connecting the LAN cable
3. Plug the other end of the cable into a LAN hub connector. Check with
your LAN administrator before connecting to a hub.
Disconnecting LAN cable
To disconnect the LAN cable, follow the steps below.
1. Pinch the lever on the connector in the computer’s LAN jack and pull
out the connector.
2. Disconnect the cable from the LAN hub in the same manner. Check
with your LAN administrator before disconnecting from the hub.
The computer must be configured properly before connecting to a LAN.
Logging onto a LAN using the computer’s default settings could cause a
malfunction in LAN operation. Check with your LAN administrator
regarding set-up procedures.
LAN Jack
When the computer is exchanging data with the LAN, the LAN active
indicator glows orange. When the computer is connected to a LAN hub but
is not exchanging data, the
Link indicator glows green.
Make sure the LAN active indicator (orange LED) is out before you
disconnect the computer from the LAN.
